Note
Data transfer between the drive and the SD card is possible only when the drive is in "S OFF" state.
Note
Plugging or unplugging the SD card will cause transferring failure.
Do not
plug or unplug the SD card during transferring; otherwise, the transferring operation will fail.
Note
Write protection function is not supported by the SINAMICS V70. Data in the SD card will be overwritten even if the write
protection function of the S
D card is enabled.
Transferring data (SD card to drive)

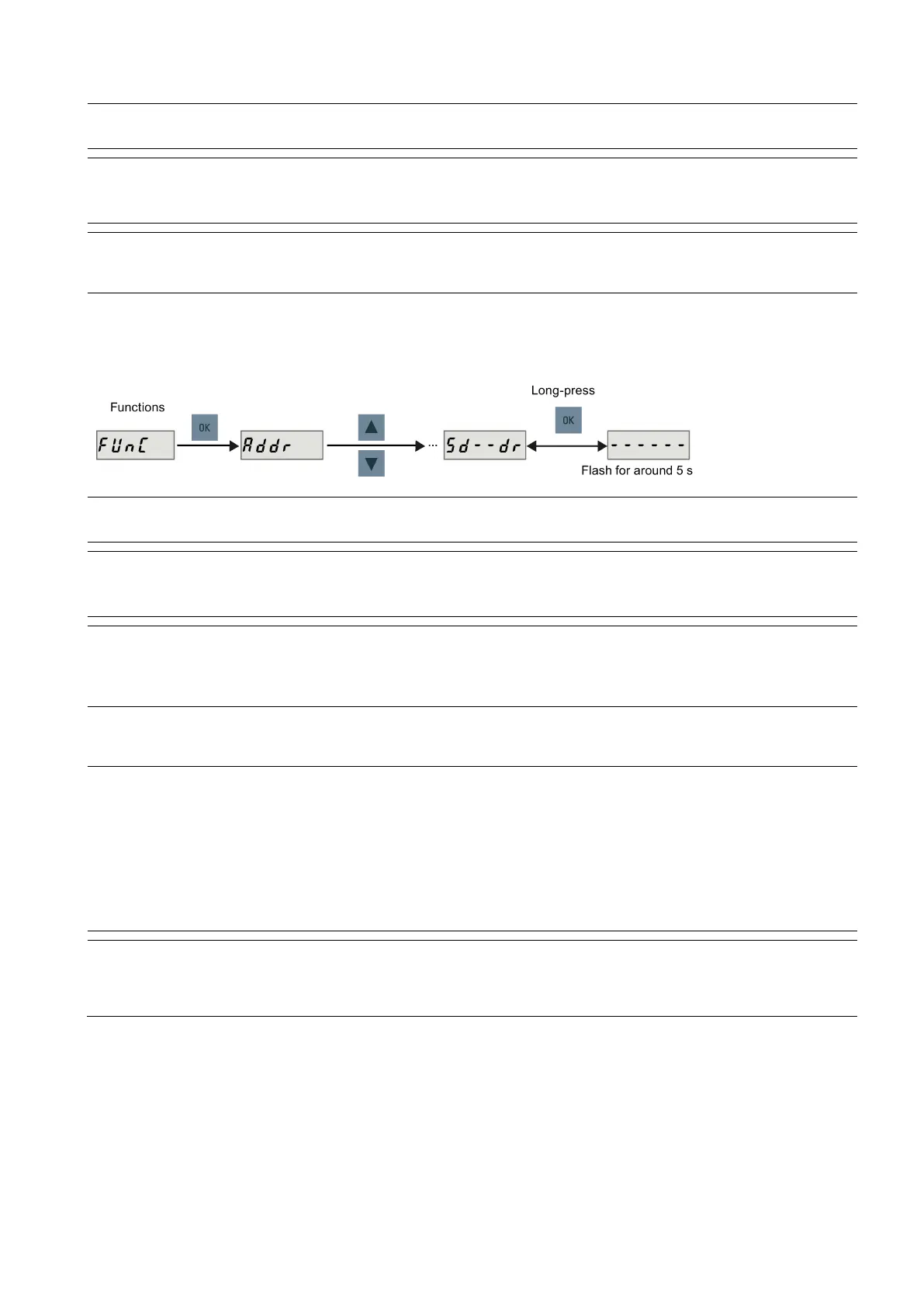

You can also transfer the parameter set from an SD card to the drive. To do this, proceed as follows:
Note
Data transfer between the drive and the SD card is possible only when the
drive is in "S OFF" state.
Note
Plugging or unplugging the SD card will cause transferring failure.
Do not plug or unplug the SD card during transferring; otherwise, the transferring operation will fail.
Note
Parameter inconsistency
If the parameter
s on the SD card are inconsistent with existing parameters in the drive
save and restart the servo drive to apply the changes.
Note
Drive data backup before firmware update
Before updating the firmware, back up the d
rive data through any of the following methods:
Backing up the drive data via the control system
For more information about external data backup in a data archive, see the SINUMERIK 808D/SINUMERIK 808D
ADVANCED Operating and Programming manuals.
Backing up the drive data via the SD card
For more information, see Section "Transferring data (drive to SD card) (Page 468)".
Note
Before performing the firmware update, Siemens recommends you to disable the communication between the drive and the
control system by removing the Drive Bus cable from the drive; otherwise, after the firmware update you may need to power
off/on the control system to clear poss
ible alarms.
