Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
472 01/2017

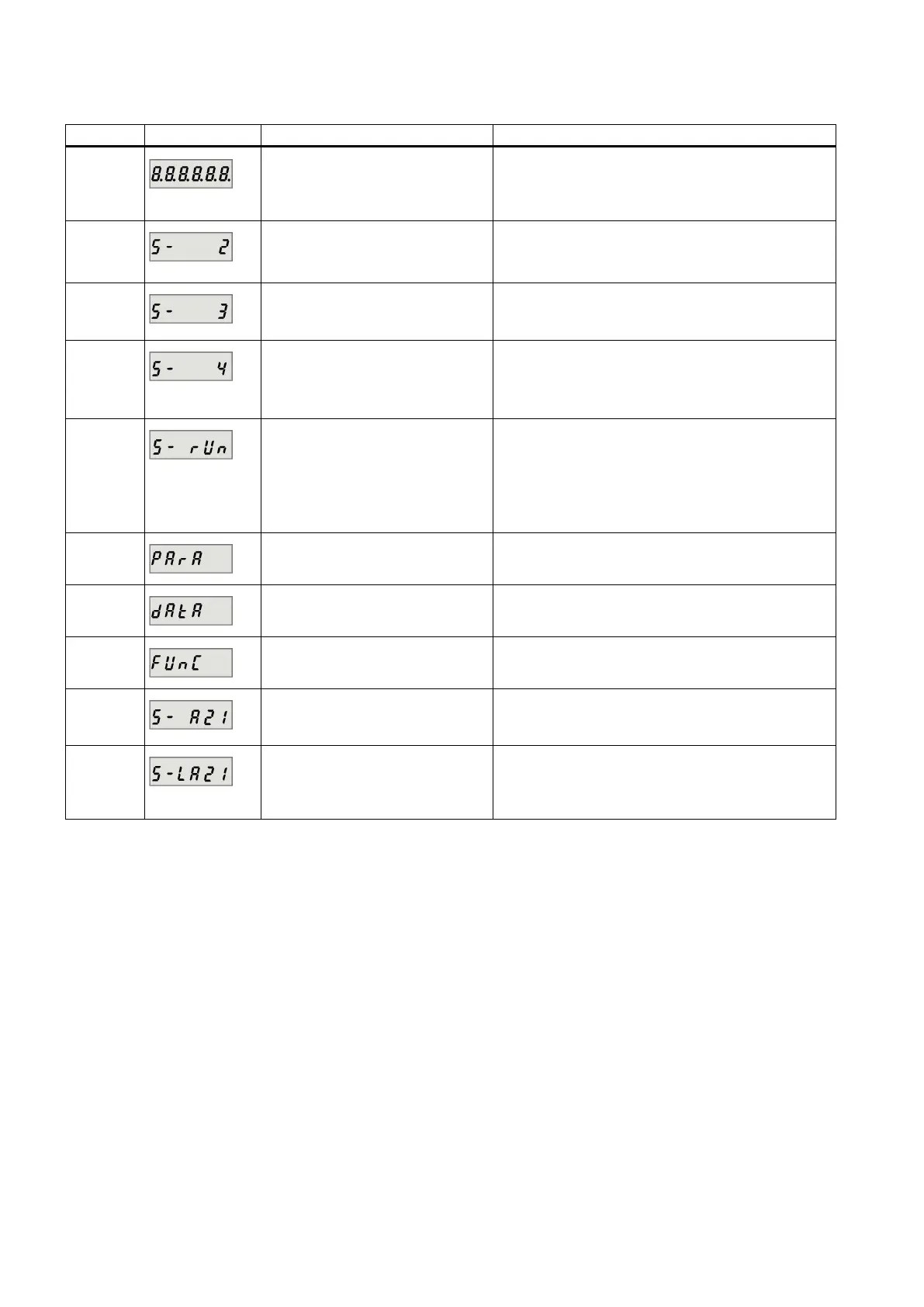

BOP display
Display
Example
Description
Preconditions for display of normal status
8.8.8.8.8.8
.
Initializes the drive (drive self-
testing at power-on) and stay for
about one second during the pro-
cess
•
No error code appears
• No power supply (24 VDC) fault
S-2
Precharges the drive (waiting for
the 220 V mains power)
• No power supply (24 VDC) fault
• No alarm code appears
•
No error code appears
S-3
Waits for drive enable from terminal
65 at X6
• No power supply (24 VDC or 3 AC 220 V to 240
V) fault
•
No alarm code appears
S-4
Waits for pulse enable from termi-
nals ENA+ and ENA- at X5
• No power supply (24 VDC or 3 AC 220 V to 240
V) fault
• No alarm code appears
•
Terminal 65 has been enabled
S-Run
Drive is running properly
• No power supply (24 VDC or 3 AC 220 V to 240
V) fault
• No alarm code appears
• Terminals 65 has been enabled via an external
24 VDC power supply
•
Terminals ENA+ and ENA- have been enabled
Para
Editable parameter group -
Data
Read-only parameter group -
Func
Function group -
S-Axx
Displays an alarm code associated
with a fault existent in the drive
system
S-LAxx
Displays the first detected alarm
when more than one error occur at
the same time (The alarm number
always contains a letter "L".)
1)
-
1)
The subsequent alarms are displayed every two seconds.
