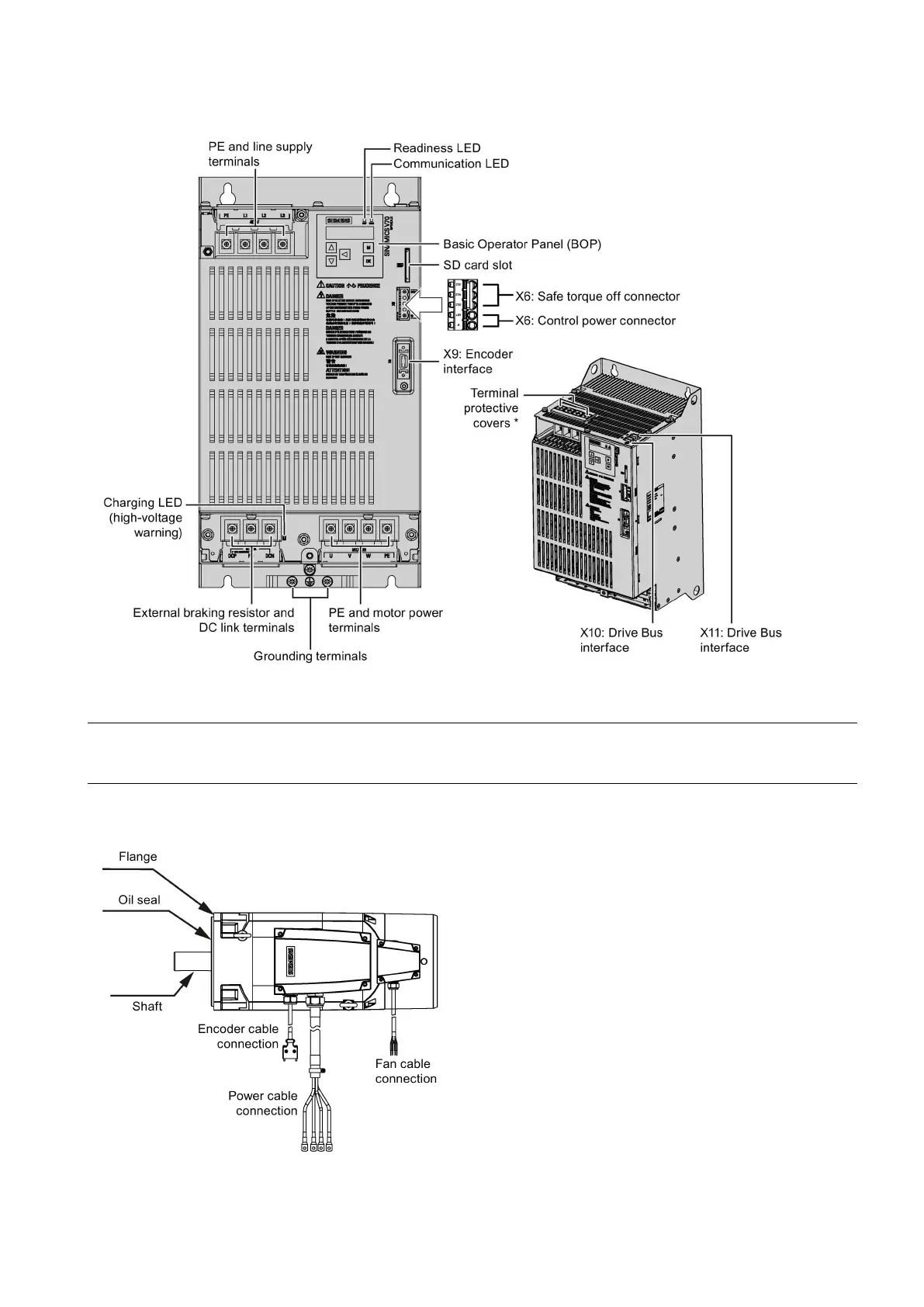

SINAMICS V70 FSD
* The protective covers are available for the PE, line supply, motor power, external braking resistor, and DC link terminals.
Before connecting these terminals, remove the plastic covers first with a slot/cross head screw driver.
Note
For more information about the connection of the X10 and X11, see Section "
Drive Bus interface - X126 (PPU161.3 and
PPU160.2 only)
(Page 96)".
SIMOTICS M-1PH1 main motor
