Commissioning Manual
01/2017
129
Death or severe personal injury from electrical shock
The earth leakage current for the drive can be greater than AC 3.5 mA, which may cause death or severe
personal injury due to electrical shock.
A fixed earth connection is required to eliminate the dangerous leakage current. In addition, the minimum size
of the protective earth conductor shall comply with the local safety regulations for high leakage current
equipment.

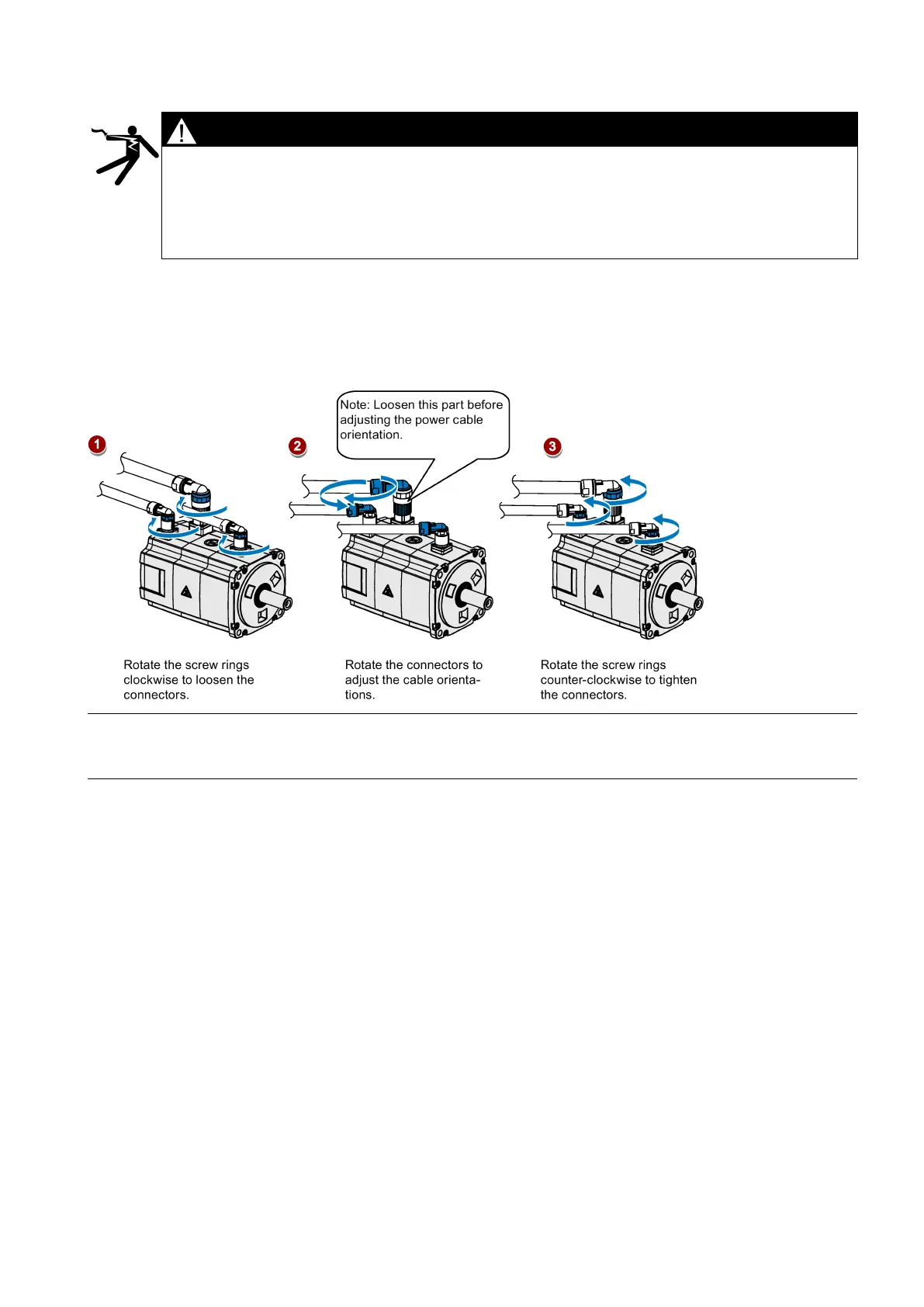

Adjusting cable orientations from the motor side
1FL6 motor:
From the motor side, you can adjust the orientation of the power cable, encoder cable, and brake cable to facilitate cable
connection.
Note
Rotating the connectors
All the three motor
-side connectors can be rotated only within 360°.
There are holes through which you pass cables on both sides of the terminal box of 1PH1 motor. You can connect the
cables through the holes on any of the both sides. For more information about how to adjust cable orientations, see Section
"Connecting the terminal boxes of the 1PH1 motor (Page 130)".
