Siemens SINUMERIK 808D ADVANCED

Commissioning Manual
172 01/2017
Variable
Type
Description
ConHw_Key
BOOL
Define the Contour Handwheel at the MCP key
SimConHw_Key
BOOL
Define the simulation contour handwheel at the MCP key
NegDir-
SimConHw_Key
BOOL Define the negative direction for simulation contour handwheel at the MCP key
INCvar_Key
BOOL
Define the INCvar at the MCP key
1)
When the Auxiliary Function Lock function is active, all the outputs caused by auxiliary functions (like T, M, or S code)
are disabled, only with the axis moving as usual.
Outputs
Variable
Type
Description
AFL_LED
BOOL
Define the Auxiliary Function Lock at the MCP LED
ConHw_LED
BOOL
Define the Contour Handwheel at the MCP LED
SimConHw_LED
BOOL
Define the simulation contour handwheel at the MCP LED
NegDir-
SimConHw_LED
BOOL Define the negative direction for simulation contour handwheel at the MCP LED
INCvar_LED
BOOL
Define the INCvar at the MCP LED
Relevant PLC machine data
No.
Description
14512 [20].0 Grey coded switch (0: spindle override controlled by the grey mode; 1: spindle override con-
trolled by trigger user keys)
14512 [20].2 Activate the first additional axis (0: disable the additional axis control; 1: enable the additional
axis control)
14510 [12] Layout of the traverse keys
• For a turning variant, 0: horizontal version; 1: inclined version
• For a milling variant, 0: vertical milling; 1: knee-type

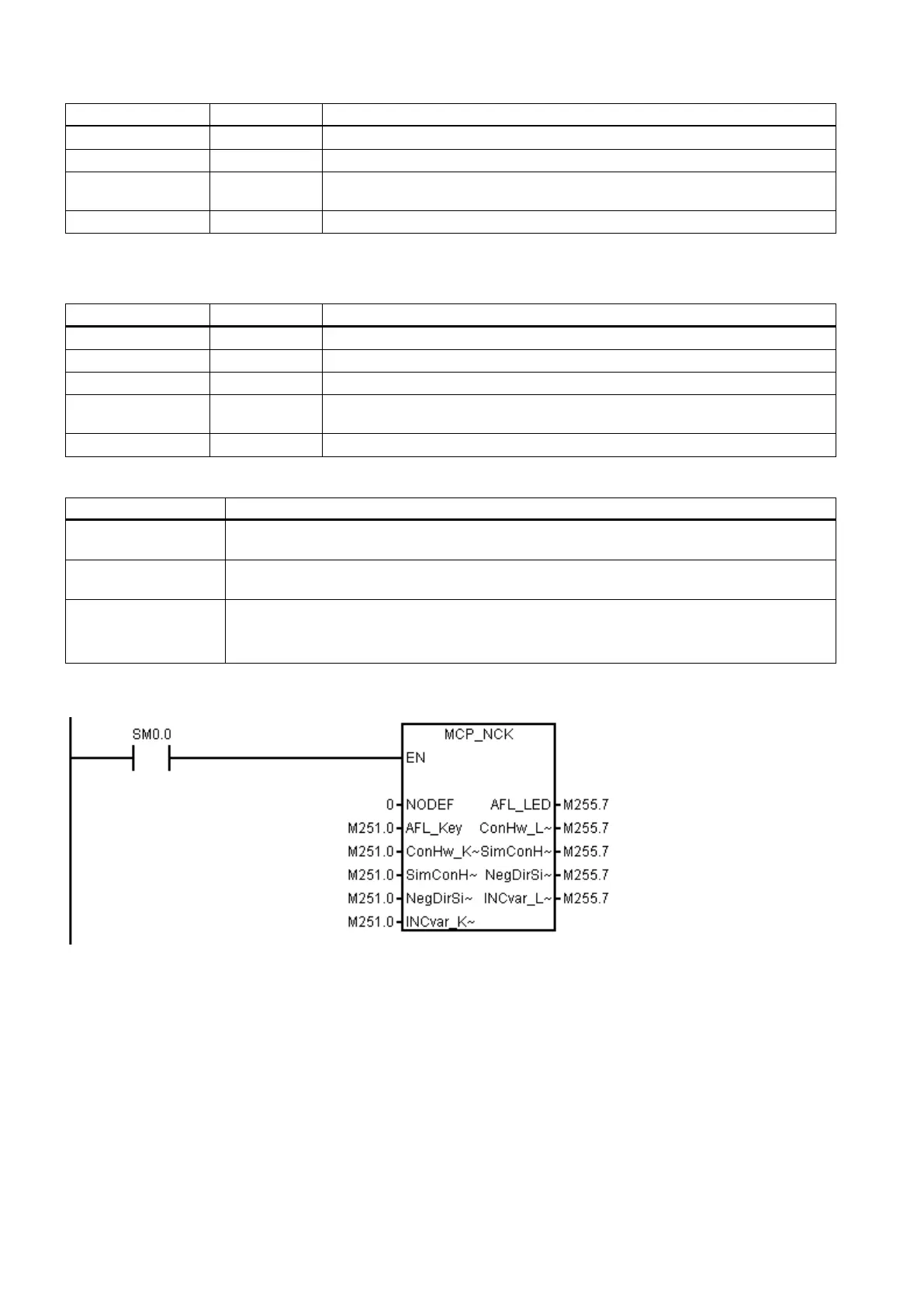

Example for calling subroutine 37
