Local variable definition
Inputs
Name
Type
Description
nodef
BYTE
Reserved
ASUP1_trigger
BOOL
Start ASUP1 (rise edge)
ASUP2_trigger
BOOL
Start ASUP2 (rise edge)
Outputs
Name
Type
Description
ASUP1Run
BOOL
Indicates whether ASUP1 is running
ASUP2Run
BOOL
Indicates whether ASUP2 is running
Err1 BOOL ASUP1 error
Err2
BOOL
ASUP2 error
Occupied global variables
IniASUP1
M229.0
Mark of ASUP1 initialization
IniASUP2 M229.1 Mark of ASUP2 initialization
DelPswStart
M228.0
Start to delete password
DelPswSel
M228.1
Delete password select
Relevant machine data
No.
Name
10702
IGNORE_SINGLEBLOCK_MASK
11602
ASUP_START_MASK
11604
ASUP_START_PRIO_LEVEL
20116
IGNORE_INHIBIT_ASUP
No.
Value
Description
14512 [19].2 1 The control system will not delete the password after NC restart
0
The control system will delete the password after NC restart

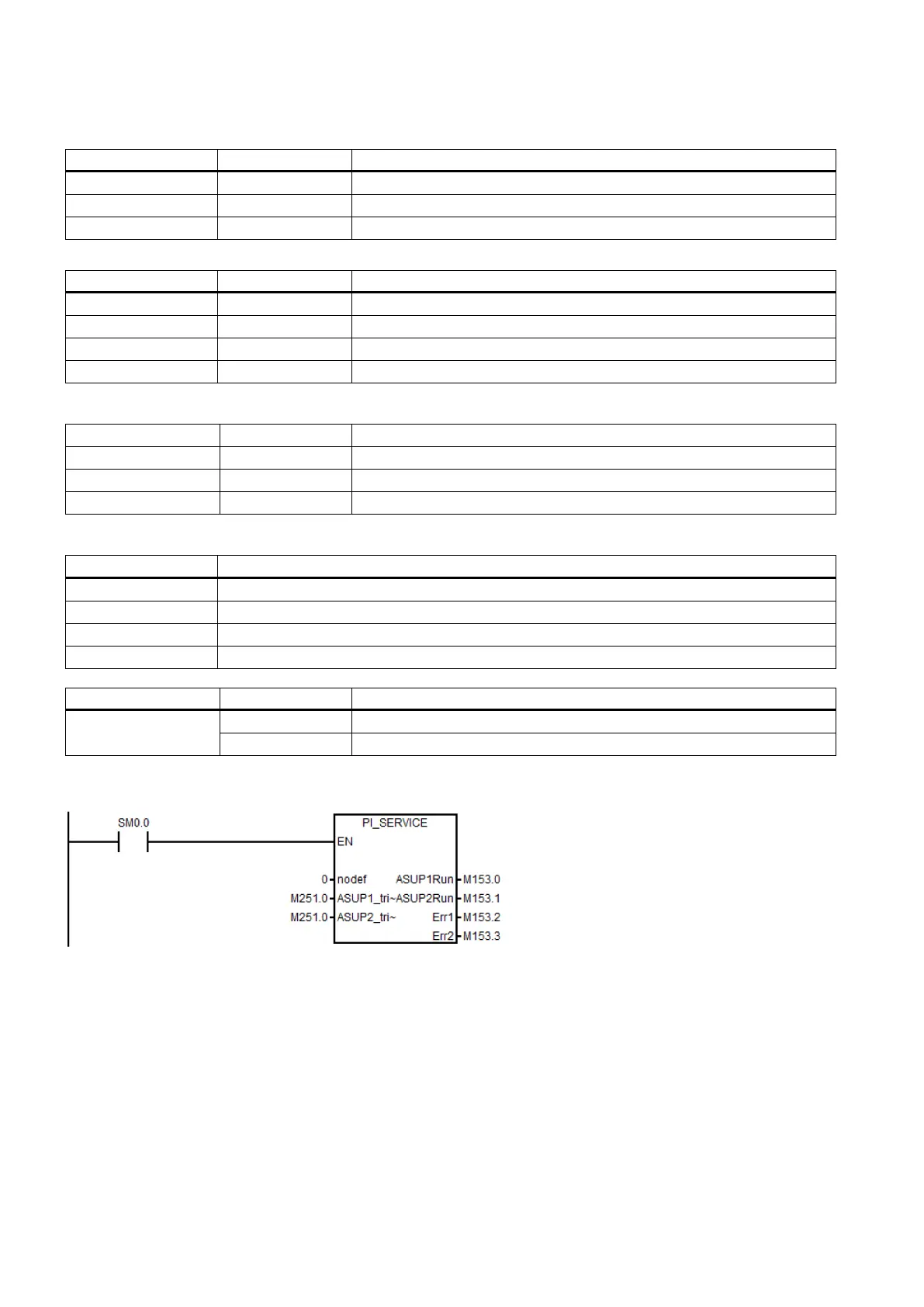

Example for calling subroutine 46
