Commissioning Manual
01/2017
267

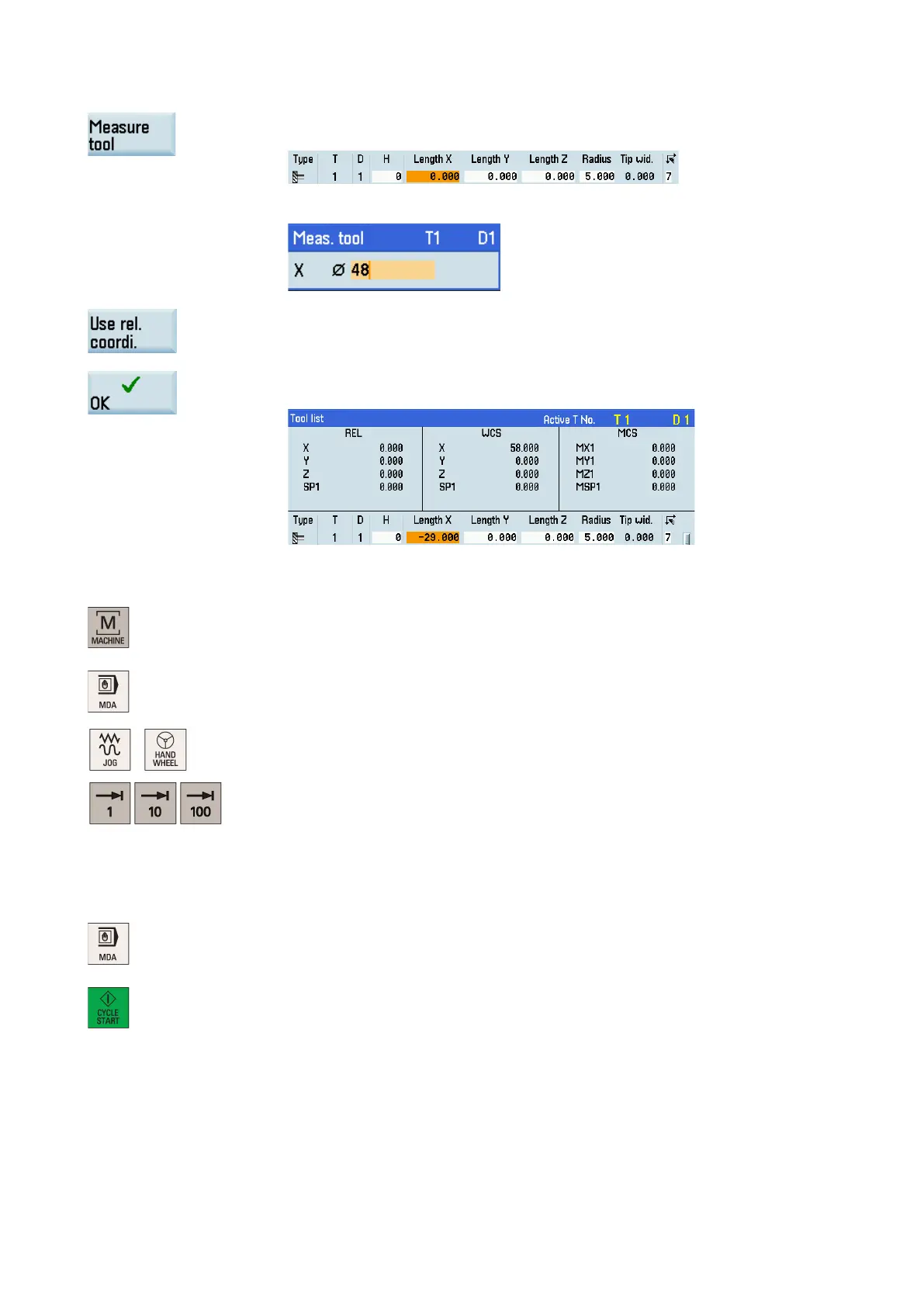

Move the cursor to the input field for Length X with the cursor keys and then press this sof
t-
Enter the distance measured in Step 9 in the input field (for example, 48).
If you desire to use the relative coordinate, press this softkey.
Press this softkey to confirm your input. The system calculates the offset and e
n
ters it in the
geometry input field of
the currently active tool automatically.
Measuring the Y axis of the tool
Select the machining opera
ting area.
Switch to "MDA" mode and enter "SPOS=
0" in the program editor window to fix the spindle.
→
Switch to handwheel control mode.
Select a suitable override feedrate.
Use the handwheel to move the tool to approach the workpiece and cut the surface of the
workpiece for about 1 mm along the X a
xis. Then retract the tool along the X axis.
Make sure you do not move the tool along the Y axis afterwards.
Switch to "MDA" mode and continue to enter "SPOS=180" in the program editor window.
Press this key to rotate the spindle 180 degrees.
Measure the distance between the two cutting surfaces machined in the previous steps with
a calliper.
