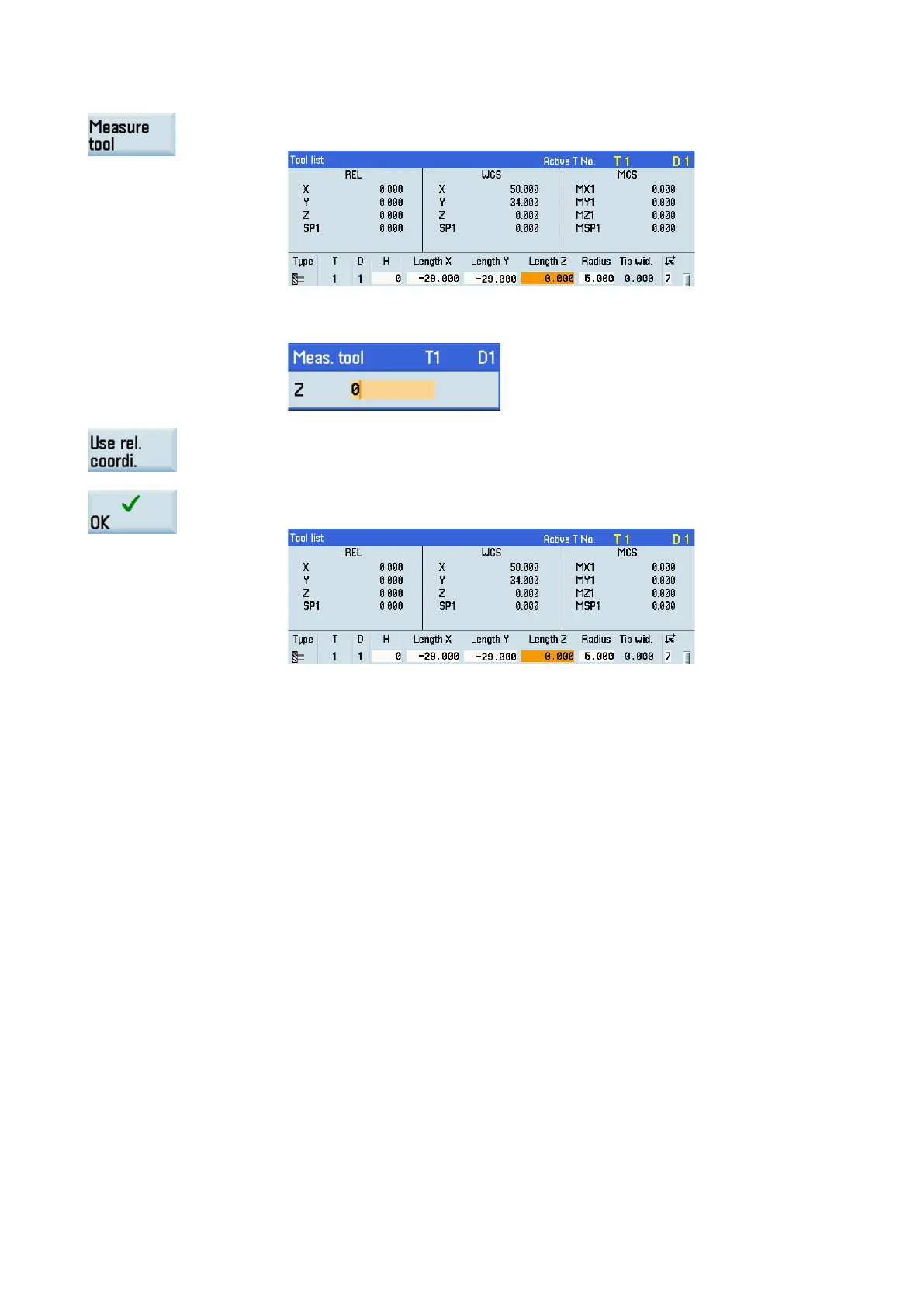

Move the cursor to the input field for Length Z with the cursor keys and then press this sof
t-
Enter the distance between the tool tip and the workpiece edge in the input field, for exa
m-
0". (This value is the thickness of a setting block if it is used.)
If you desire to use the relative
coordinate, press this softkey.
ey to confirm your input. The system calculates the offset and en
ters it in the
geometry input field of the currently active tool automatically.
Repeat the above steps to finish measuring all the tools.
