Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
01/2017
385

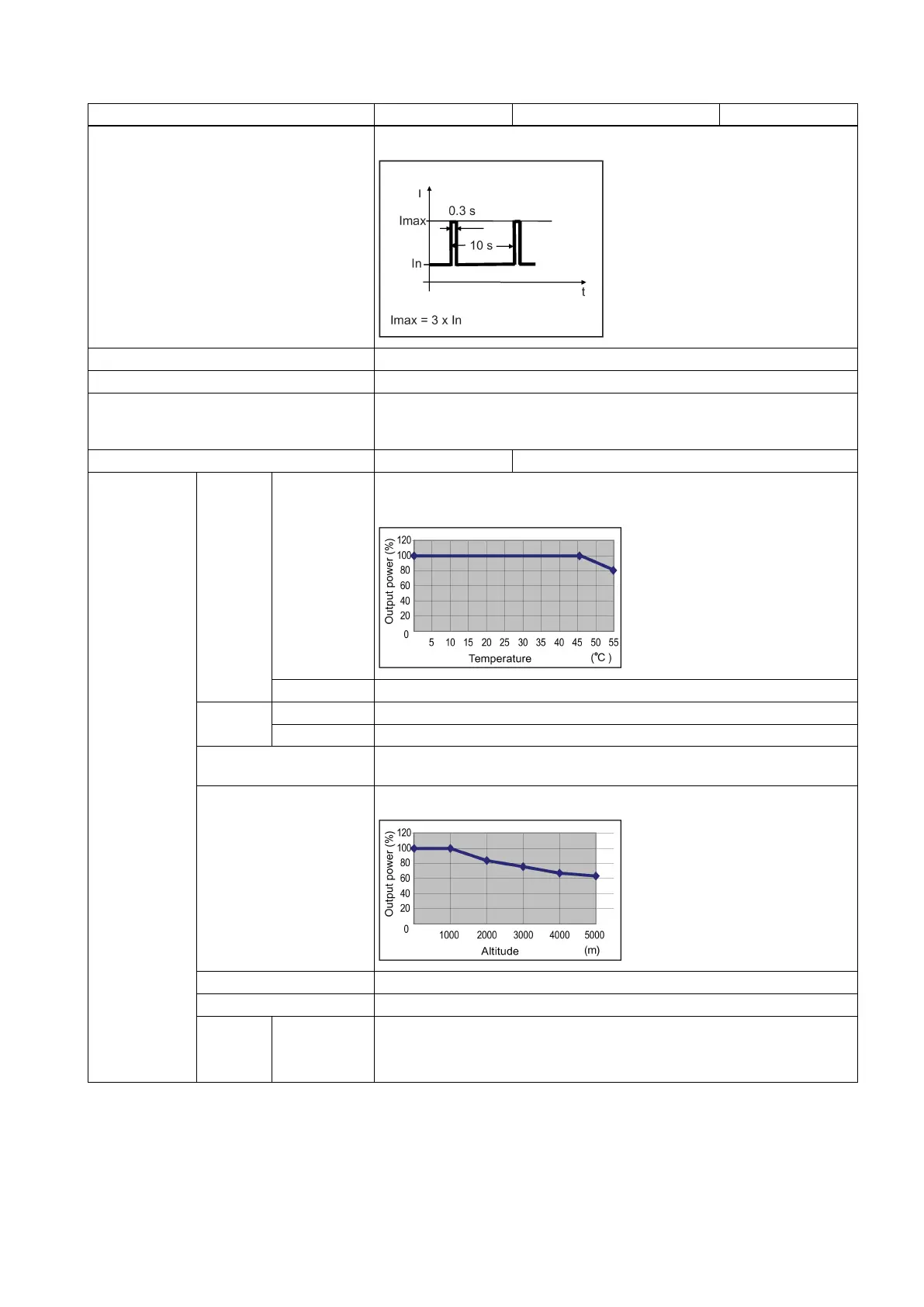

Frame size
FSA
FSB
FSC
Overload capability 300%
Control system
Servo control
Braking resistor
Built-in
Protective functions Earthing fault protection, output short-cut protection, overvolt-
age/undervoltage protection
2)
, I
2
t detection, IGBT overtemperature protec-
tion
Cooling method Self-cooled Fan-cooled
Environmental
conditions
Surround-
ing air
tempera-
ture
Operation 0 °C to 45 °C: without power derating
45 °C to 55 °C: with power derating
Storage
-40 °C to +70 °C
Ambient
humidity
Operation
< 90% (non-condensing)
Storage
90% (non-condensing)
Operating environment Indoor (without direct sunlight), free from corrosive gas, combustible gas, oil
gas, or dust
Altitude < 1000 m (without derating)
Degree of protection
IP20
Degree of pollution
Class 2
Shock Operation Operational area II
Peak acceleration: 5 g
Duration of shock: 30 ms
