Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
01/2017
429
Par. No.
Name
Range
Default
Increment
Unit
Effective
P43
Brake close speed while
motor operation
20-2000 100 20 r/min Power on
When motor speed exceeds 30 rpm and the drive generates an alarm, if, within the specified brake close time
(P42), the actual motor speed becomes smaller than the P43 setpoint, brake is closed when the actual speed
reaches the speed P43 sets.
P44
Drive enable time after the
brake close
20-2000 600 10 ms Power on
When motor speed is lower than 30 rpm, the drive remains enabled within the time period set by P44 after
brake close.
P46
JOG speed
0-2000
200
10
rpm
Immediately
This parameter specifies the motor speed in JOG mode.
P47
Ramp-up/-down time con-
stant
0.0 –
10.0
4.0 0.1 s Power on
This parameter defines the time period when the motor ramps up from 0 rpm to 2,000 rpm or ramps down from
2, 000 rpm to 0 rpm in JOG mode.
P99
Reserved for Siemens internal use only
Note
For parameters with an asterisk (*), the values in brackets are the second default values. For details, see Section "Function
menu".

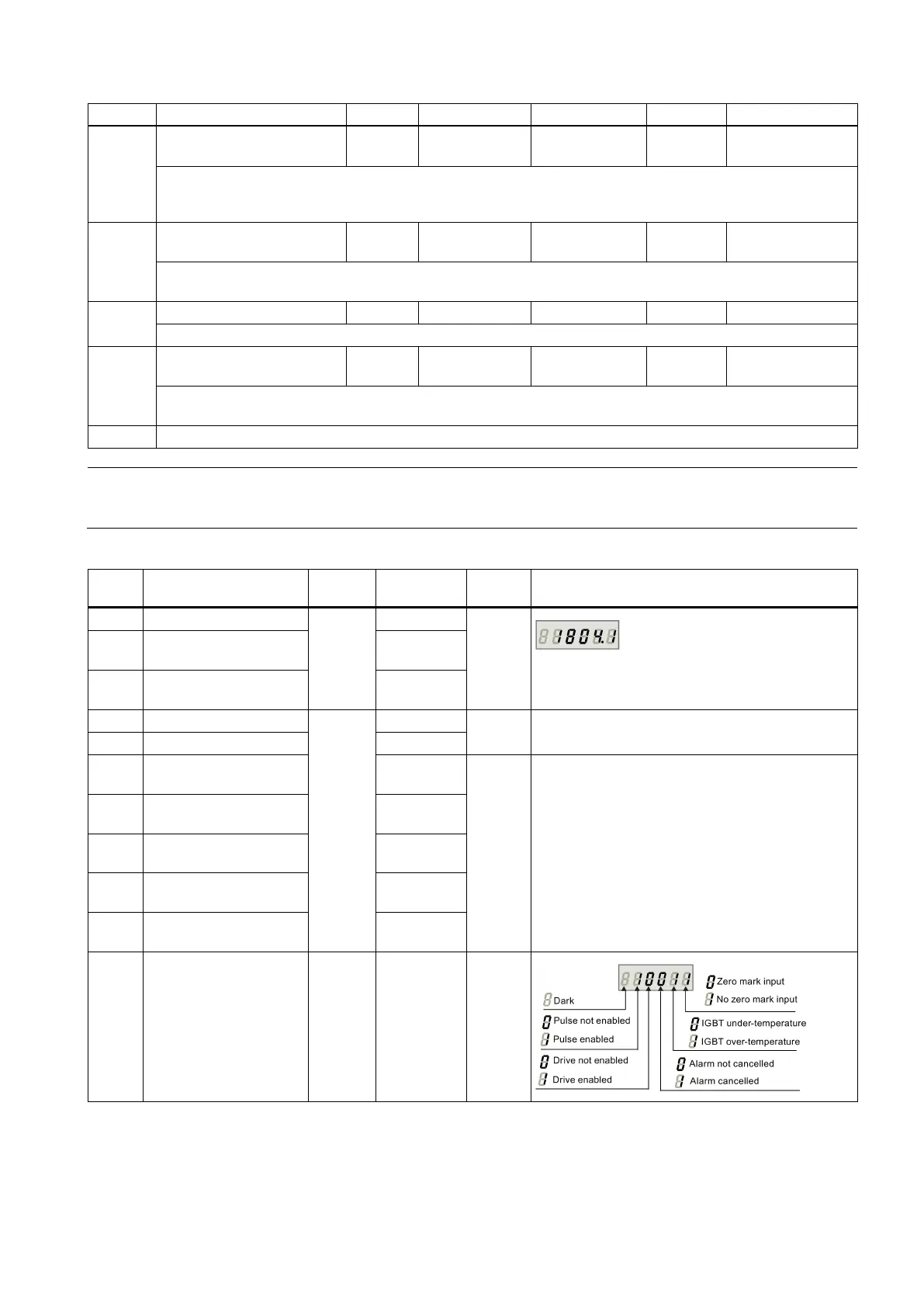

Display data (read-only)
Data
no.
Name
Data
format
Unit
Data
group
Display example
D10
1)
Torque setpoint
Decimal
Nm
Current
D11
1)
Actual value of the
torque
Nm
D12
1)
Actual value of the
phase current
A
D20
Motor speed setpoint
Integer
RPM
Speed -
D21
Actual motor speed
RPM
D30 Position revolution set-
point
Motor revo-
lutions
Position -
D31 Position angle setpoint Increments
(10000/r)
D32 Actual position revolu-
tions
Motor revo-
lutions
D33 Actual position angle Increments
(10000/r)
D34 Position deviation angle Increments
(10000/r)
D50
2)
Digital input signal Bit Bits in hex I/O
