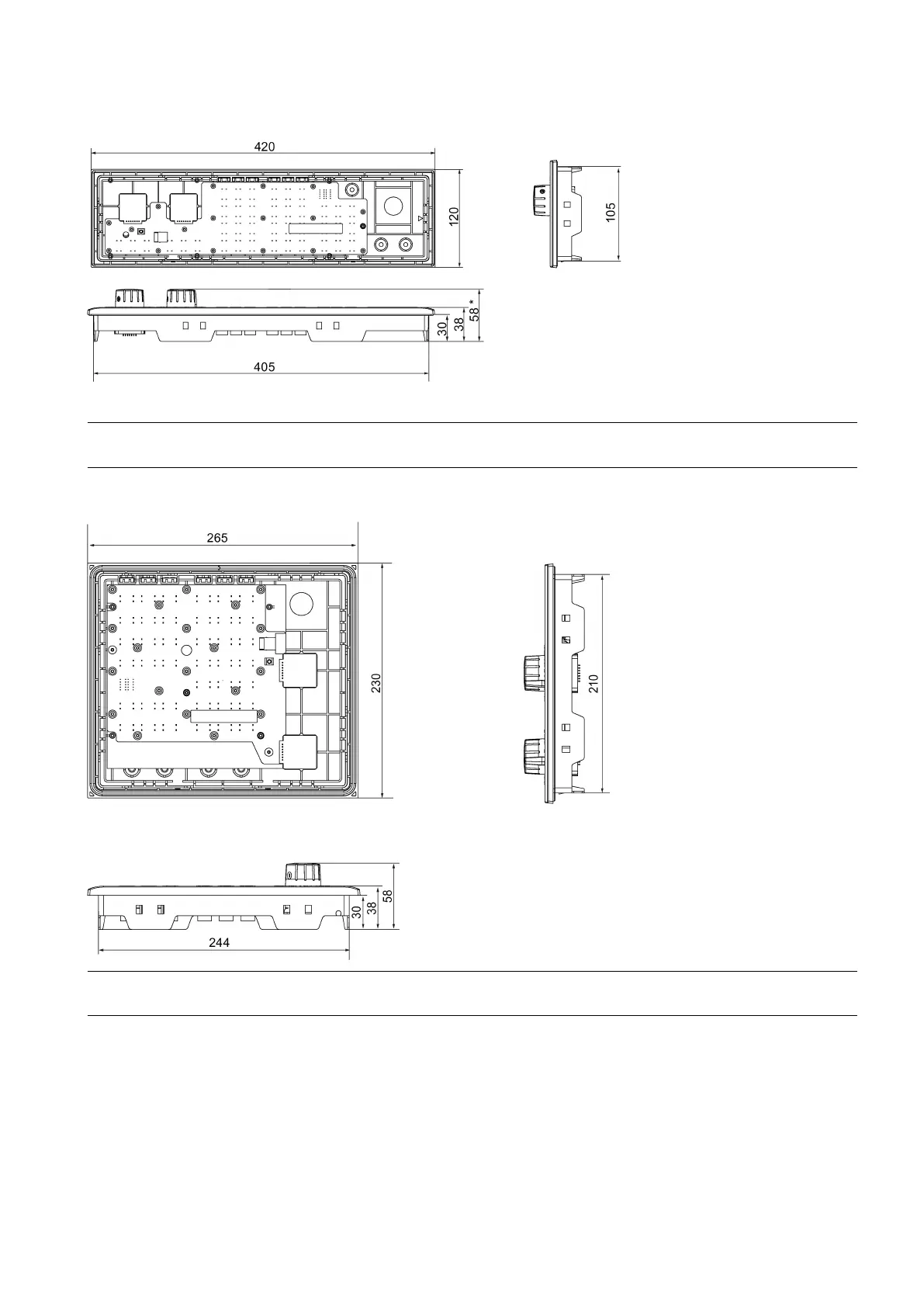

Horizontal MCP (Example: MCP variant with override switches)
* not available on the horizontal MCP with a reserved slot for the handwheel
Note
All horizontal MCP versions have the same outline dimensions.
Vertical MCP (Example: MCP variant with an override switch for the spindle)
Note
All vertical MCP versions have the same outline dimensions.
