Siemens SINUMERIK 808D ADVANCED

Commissioning Manual
74 01/2017
Motor
L
1PH1103-1❑D12-❑GA0
449
1PH1105-1❑F12-❑GA0
499
1PH1105-1❑D12-❑GA0
499

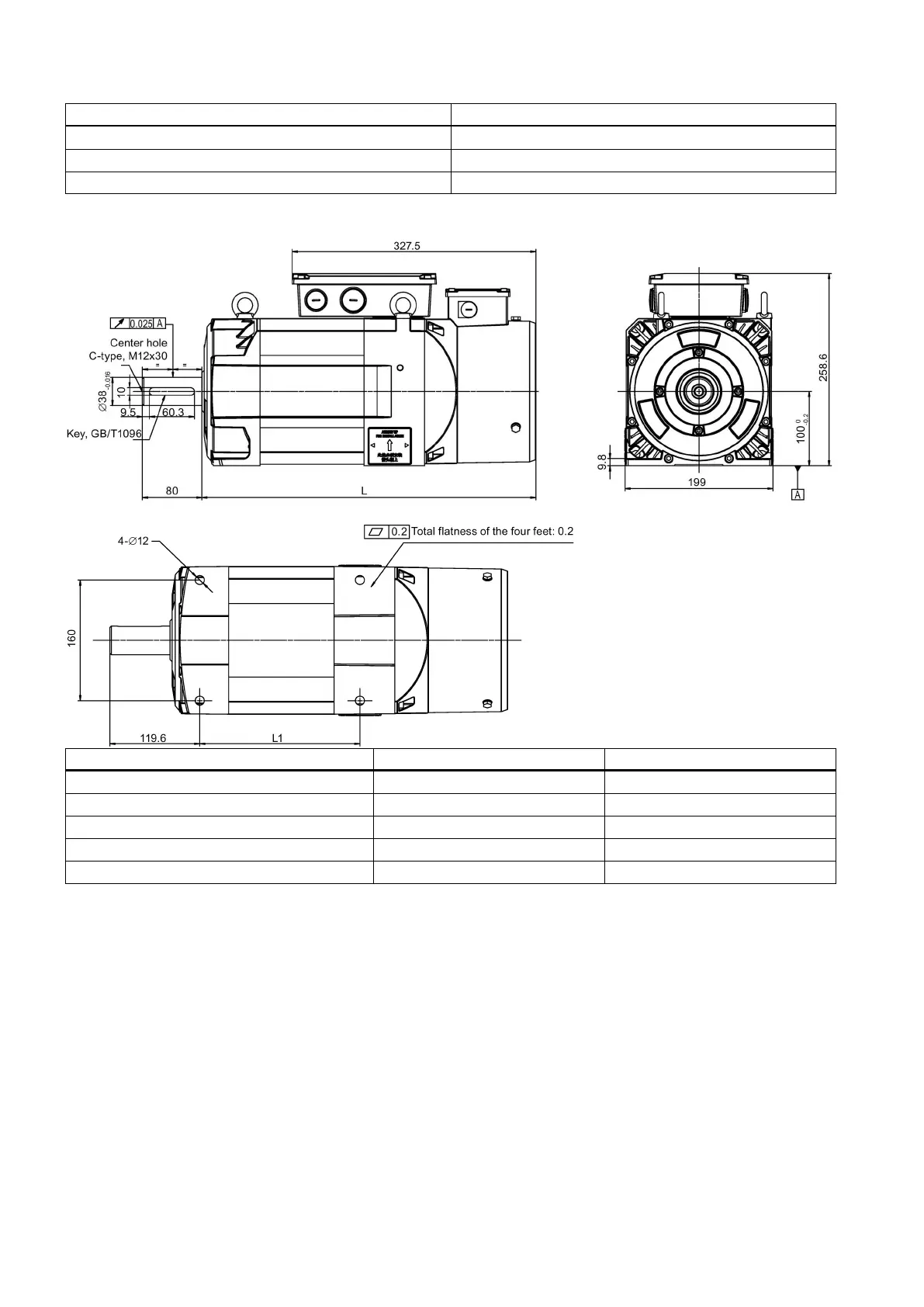

Shaft height 100 mm: foot mounting (unit: mm)
Motor
L
L1
1PH1101-1❑F10-❑GA0
419
183
1PH1103-1❑F10-❑GA0
449
213
1PH1103-1❑D10-❑GA0 449 213
1PH1105-1❑F10-❑GA0
499
263
1PH1105-1❑D10-❑GA0 499 263
