Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
01/2017
77

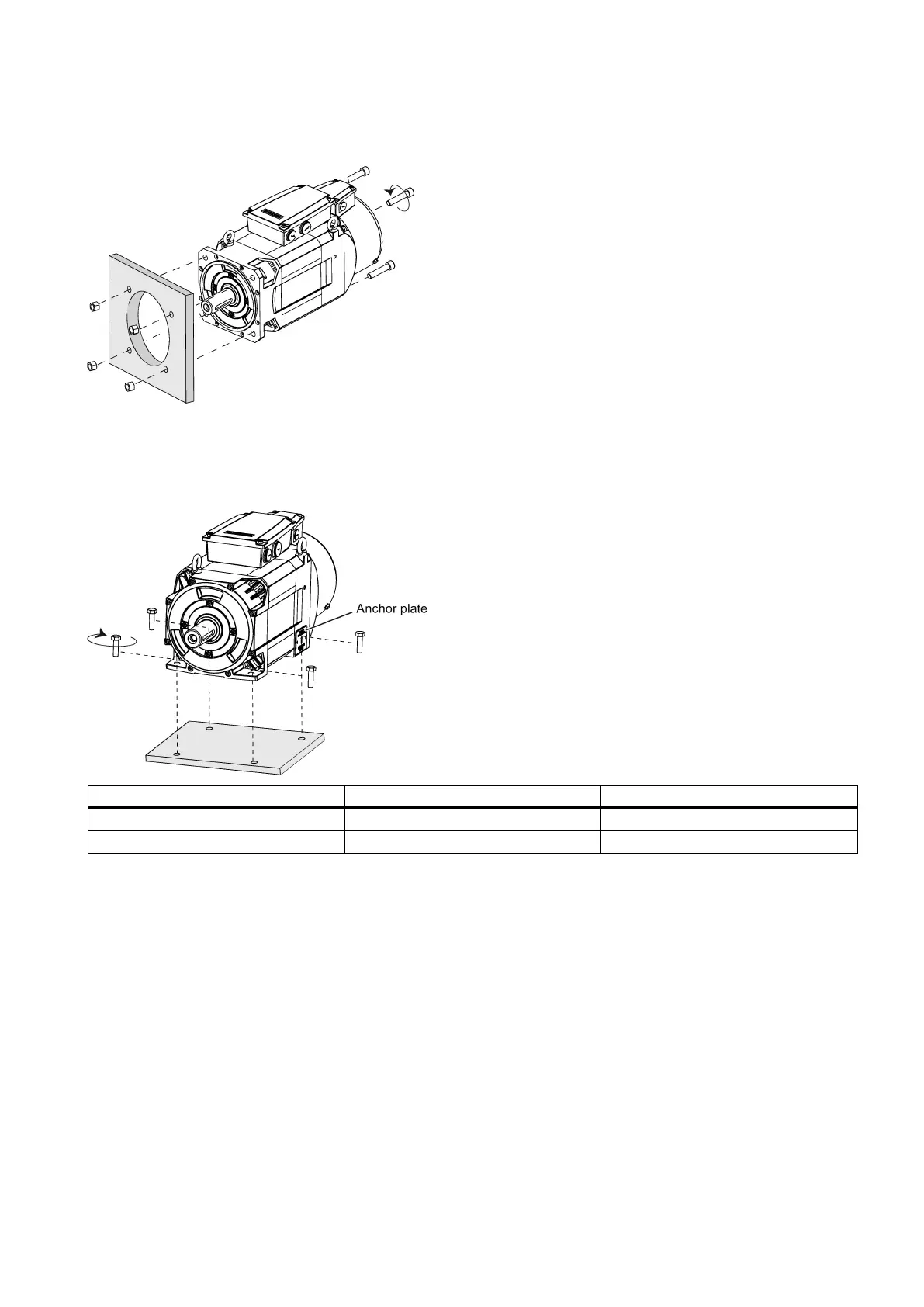

Flange mounting
Mount the motor through a mounting steel flange. Use four M12 screws with a tightening torque of 84 Nm.
Foot mounting
Remove the anchor plates with a wrench, fix the motor to the mounting plate with screws, and then reinstall the anchor
plates. You can use four screws to fix the motor as shown in the following figure:
Motor variant
Screw
Tightening torque
1PH110❑
4 × M10
39 Nm
1PH113❑
4 × M12
84 Nm
