Note
Circuit breaker
You can install a mains linear breaker (rated current: 15 A for 7 A or 10 A version of the drive and 10 A for 4 A or 6 A version
of the drive; rated voltage: 250 VAC) to protect the system.
As mentioned before, the SINUMERIK 808D control system can control three axes (X axis, Y axis and Z axis). To do so, you
need to connect the control system via the three pulse drive interfaces (X51: X axis, X52: Y axis and X53: Z axis) separately
to three SINAMICS V60 drives.

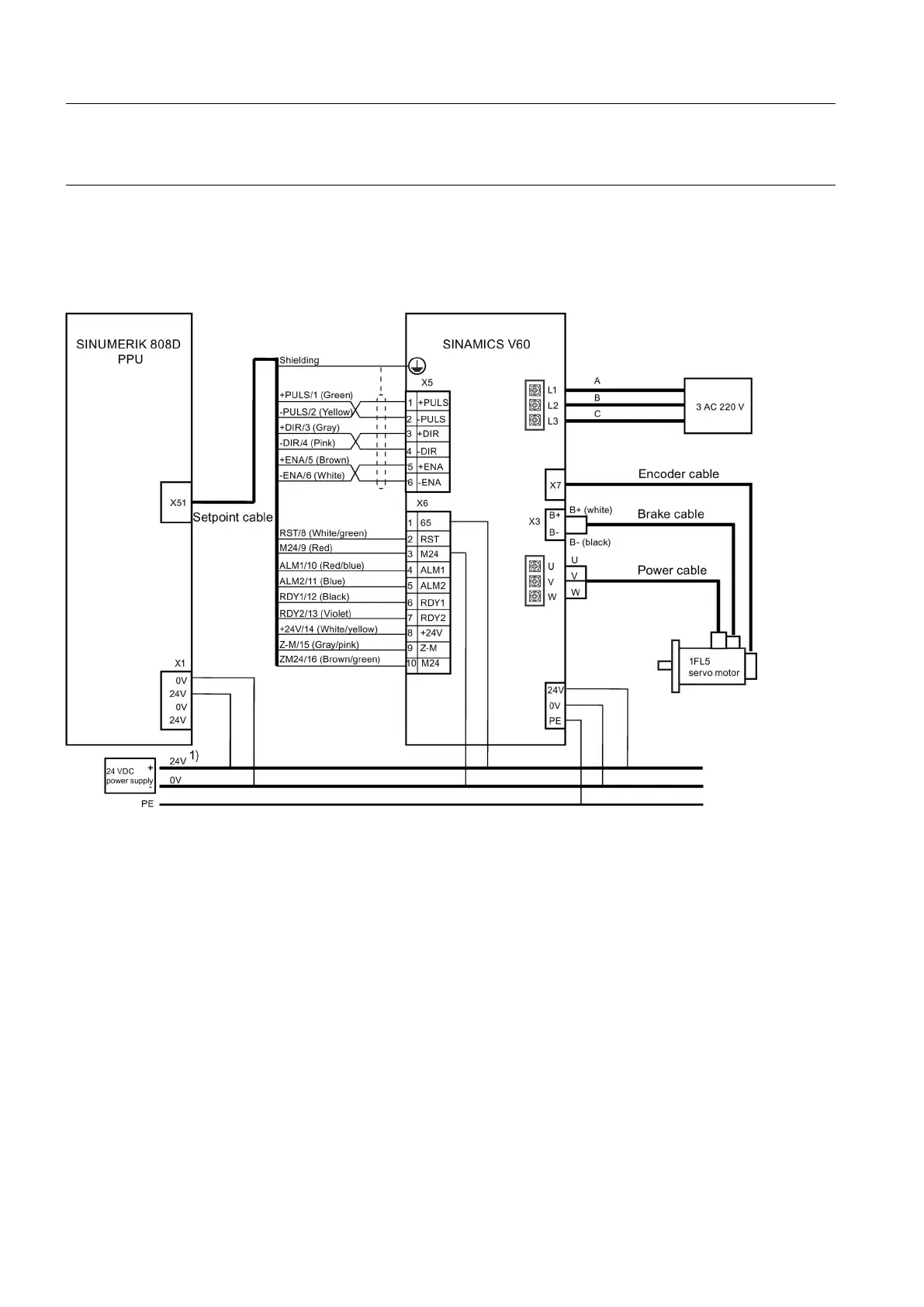

The connection diagram between the SINUMERIK 808D (X51: the X axis) and the SINAMICS V60 is shown as follows. You
can connect X52 (the Y axis) and X53 (the Z axis) in the same way.
1)
If necessary, you can also serially connect an emergency stop switch between the 65 enable signal and the 24 V signal.
The connected motors are Siemens 1FL5 servo motors.
