2 – 1
2 Labels

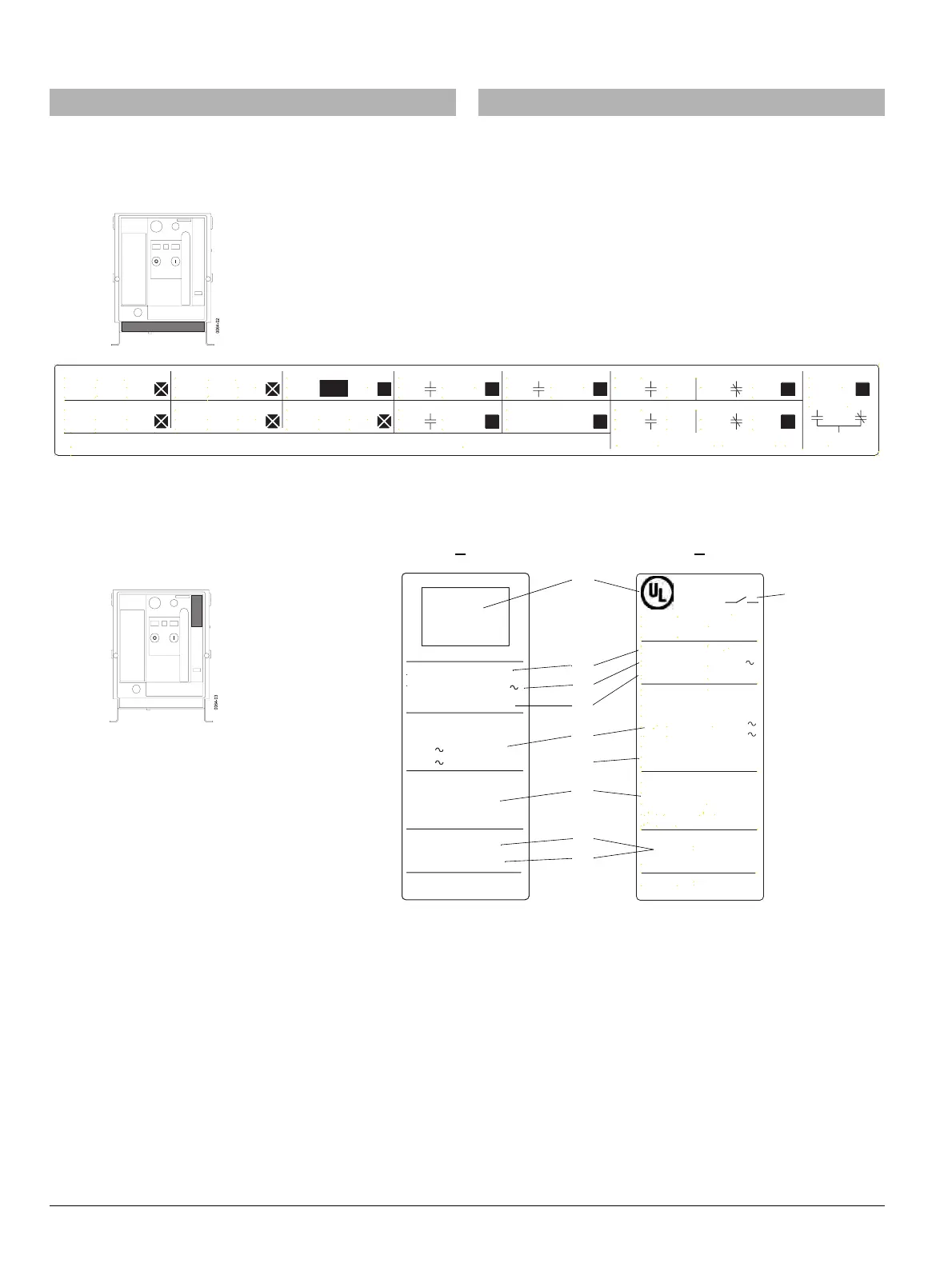

2.1 Circuit breaker options label
(with terminal designations)
2.2 Type label circuit breaker frame
A Circuit breaker
B Non-automatic circuit breaker
(1) UL-Mark (for circuit breakers applied
by a white sticker, within
the shown frame)
(2) Max. Ampere rating
(3) Rated operating voltages
(4) Rated frequency
(5) Rated short-circuit breaking capacity
(6) Necessary overcurrent protection
(7) Enclosure size
(8) Arcing area
(9) Main connections
(10) Switch mark
2 Schilder
2.1 Ausstattungsschild Leistungsschalter
(Mit Anschlussbezeichnungen)
2.2 Typschild Grundschalter
A Leistungsschalter
B Trenner
(1) Approbationszeichen (für Leistungsschalter mit ein
em weißen
Aufkleber, wie gezeigt)
(2) Max. Bemessungsnennstrom
(3) Bemessungsbetriebsspannungen
(4) Bemessungsfrequenz
(5) Bemessungskurzschlussausschaltvermögen
(6) Erforderlicher Überstromschutz
(7) Einbauraum
(8) Ausblasraum
(9) Hauptanschlüsse
(10) Trennersymbol
