9 – 119
9.4 Breaker Data Adapter
9.4.1 Verwendung
Der Breaker Data Adapter (BDA) ermöglicht es, den Leistungs-
schalter ohne Zusatzsoftware mit einem browserfähigen Ein-/Aus-
gabegerät (z. B. Notebook) zu parametrieren, zu bedienen und zu
beo
bachten. Diese Möglichkeit besteht für Leistungsschalter mit
einem elektronischen Überstromauslöser der Typen ETU745 - 776.
r die Überstromauslöser ETU745 und ETU748 ist es jedoch nicht
möglich, die Grundschutzfunktionen zu parametrieren. Diese wer-
den ausschließlich mit den Drehkodierschaltern eingestellt.
Die Kommunikation mit der Elektronik des Leistungsschalters
erf
olgt über den c. Dazu kann der BDA wahlweise an die
Prüfbuchse des Überstromauslösers oder für einen längerfristigen
stationären Betrieb an das letzte c- Modul angeschlos-
sen und auf eine 35 mm-Hutschiene aufgeschnappt werden. Die
erf
orderlichen Verbindungskabel werden mitgeliefert.
Der BDA steht in zwei Ausführungen zur Verfügung. Der BDA PLUS
besi
tzt im Unterschied zur Standardausführung zusätzlich einen
Ethernetanschluss.
9.4.2 Ansicht
0554
9.4 Breaker Data Adapter
9.4.1 Application
The Breaker Data Adapter (BDA) makes it possible to parameterize,
operate and observe the circuit breaker without additional software
by means of an input/output unit with browser features (e.g. a note-
book). This is possible for circuit breakers equipped with trip units of
t
he types ETU745 - 776. On the trip unit ETU745 and ETU748 ,
ho
wever, the basic protective functions cannot be parameterized.
These are exclusively adjusted with the rotary coding switches.
Communications with the electronic system of the circuit breaker
t
akes place through the c. For this purpose, the BDA can
be
optionally connected to the test socket of the trip unit, or - in case
of
longer stationary operation - to the last c-module, and
sn
apped on a 35-mm DIN rail. The required connection cables are
supplied with the unit.
Two BDA versions are available. Unlike the standard version, the
BD
A PLUS is equipped with an additional Ethernet connection.

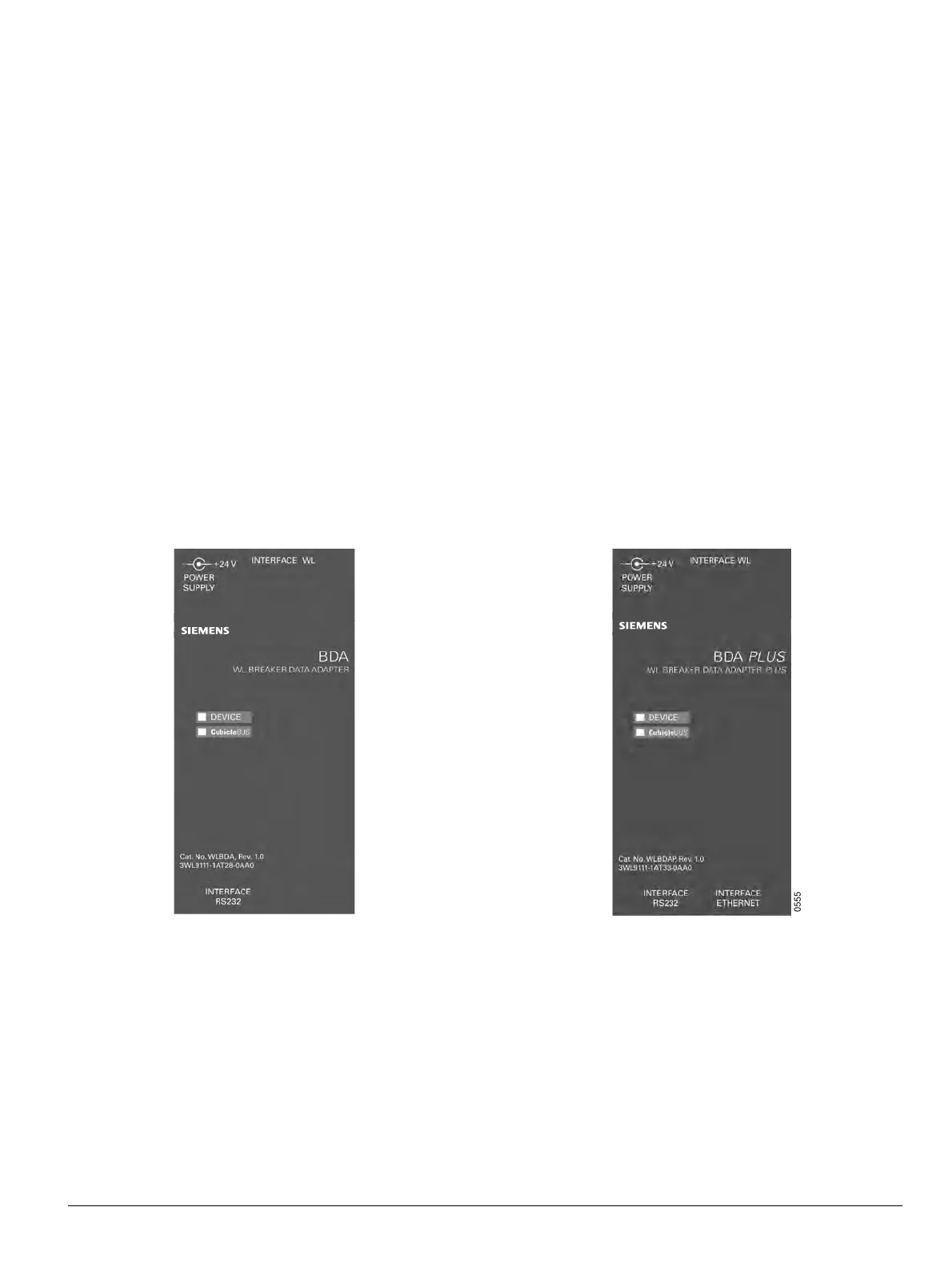

9.4.2 View
