8 – 6

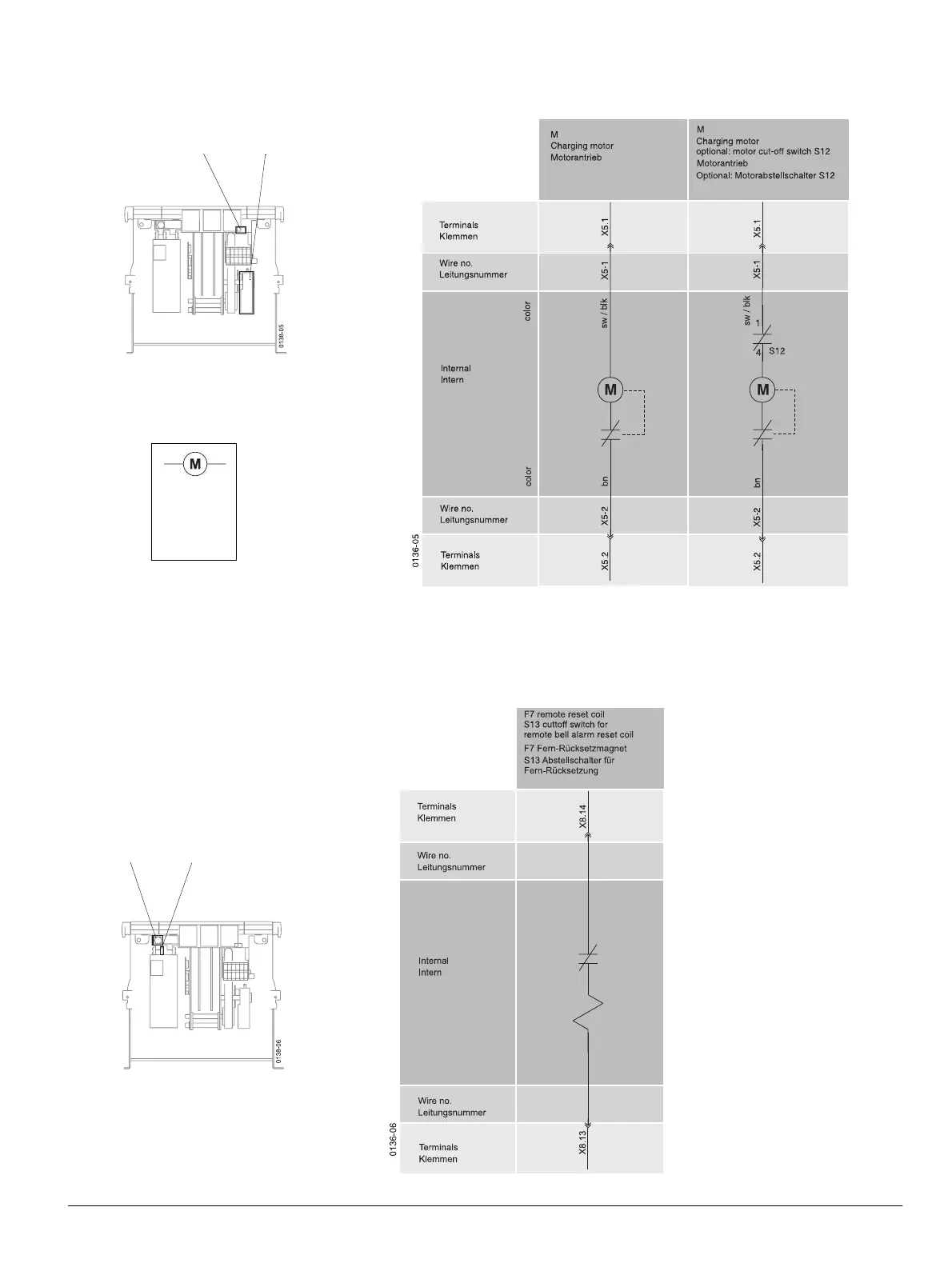

8.6 Motorantrieb
*) Gleicher Einbauplatz wie S10
8.7 Fernrücksetzmagnet
_u
S12 *)
M
24 - 30 V DC
48 - 60 V DC
L+
L-
X5.1
X5.2
BA
_u
F7
S13
8.6 Motor-operated mechanism
*) Same location as S10
8.7 Remote Bell Alarm Reset
