9 – 115
Testing
q (page 9-107)
9.2.3.5 Analog output module
Function
With the analog output module, analog measured values can be
transmitted, which can be shown on the cubicle door by means of
moving-coil instruments. There are a total of 4 outputs available.
For the output signal, two different formats can be selected:
- 4 - 20 mA, output via connector strip X5
- 0 - 10 V, output via connector strip X4
Installation
q (page 9-104)
Connection
q Connection setup (page 9-104)
A maximum of 2 analog output modules can be connected, whose
rot
ary coding switches, however, must have a different setting.

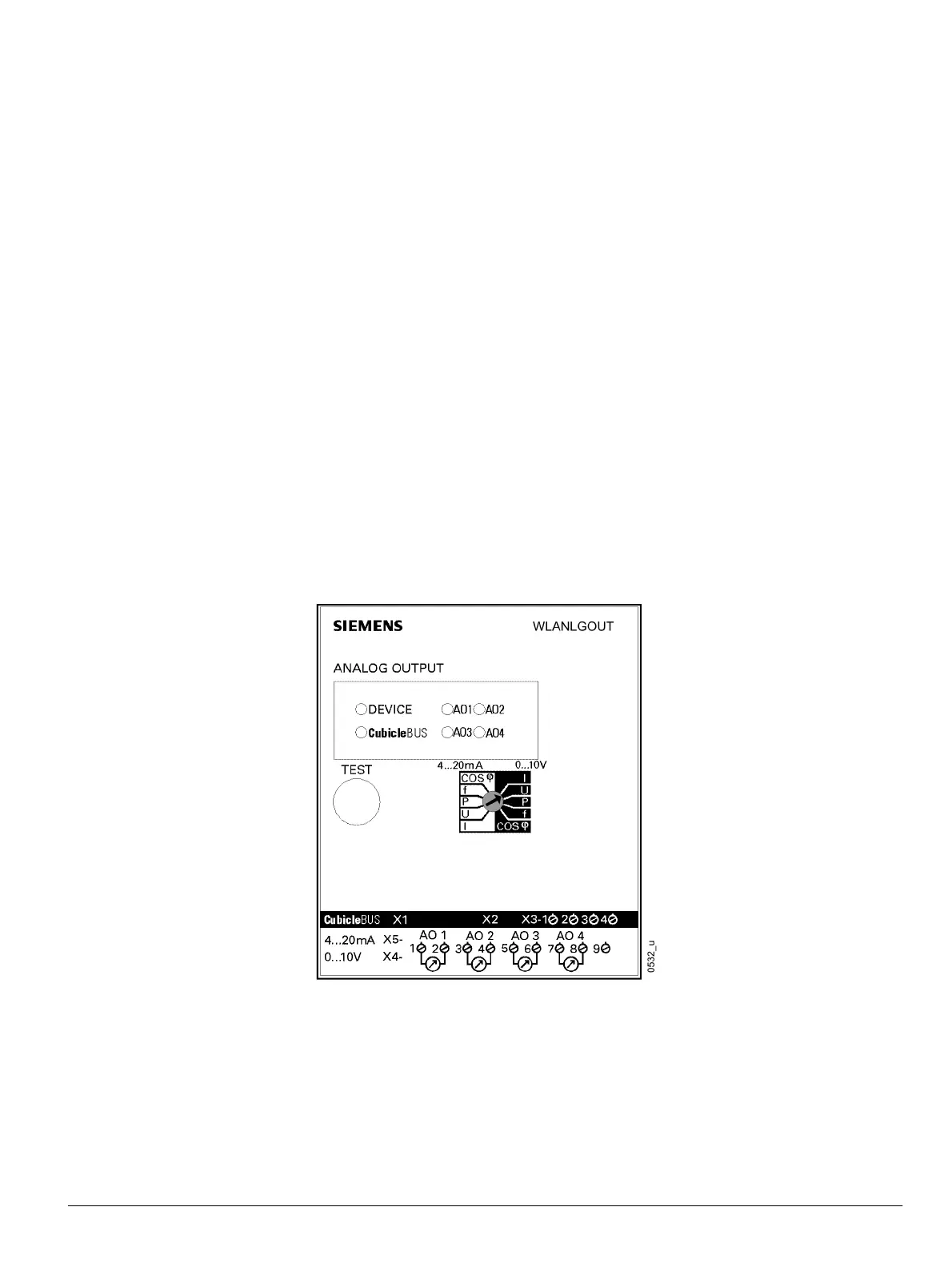

Terminal assignment
Settings
q Setting principle (page 9-107)
The measured values to be signaled are adjusted with the rotary
co
ding switch. They are always available at the two terminal strips in
the corresponding format.
The following values are available at the outputs:
Testen
q (Seite 9-107)
9.2.3.5 Analoges Ausgangsmodul
Funktion
Mit dem analogen Ausgangsmodul lassen sich analoge Messwerte
ausgeben, die z. B. mit Hilfe von Drehspulinstrumenten an der
Schaltschranktür angezeigt werden können. Es stehen insgesamt
4 Ausgänge zur Verfügung.
Für das Ausgangssignal sind zwei unterschiedliche Formate wähl-
bar:
-4 - 20 mA, Ausgabe über Steckerleiste X5
-0 - 10 V, Ausgabe über Steckerleiste X4.
Montage
q (Seite 9-104)
Anschluss
q Verbindungsaufbau (Seite 9-104)
Es können maximal 2 analoge Ausgangsmodule angeschlossen
w
erden, deren Drehkodierschalter jedoch unterschiedlich eingestellt
sein müssen.
Anschlussbelegung
Einstellungen
q Einstellprinzip (Seite 9-107)
Mit dem Drehkodierschalter werden die auszugebenden Mess-
größen bestimmt. Diese liegen immer an beiden Klemmenleisten in
dem ent
sprechenden Format an.
An den Ausgängen stehen folgende Messgrößen zur Verfügung:
