6 – 3

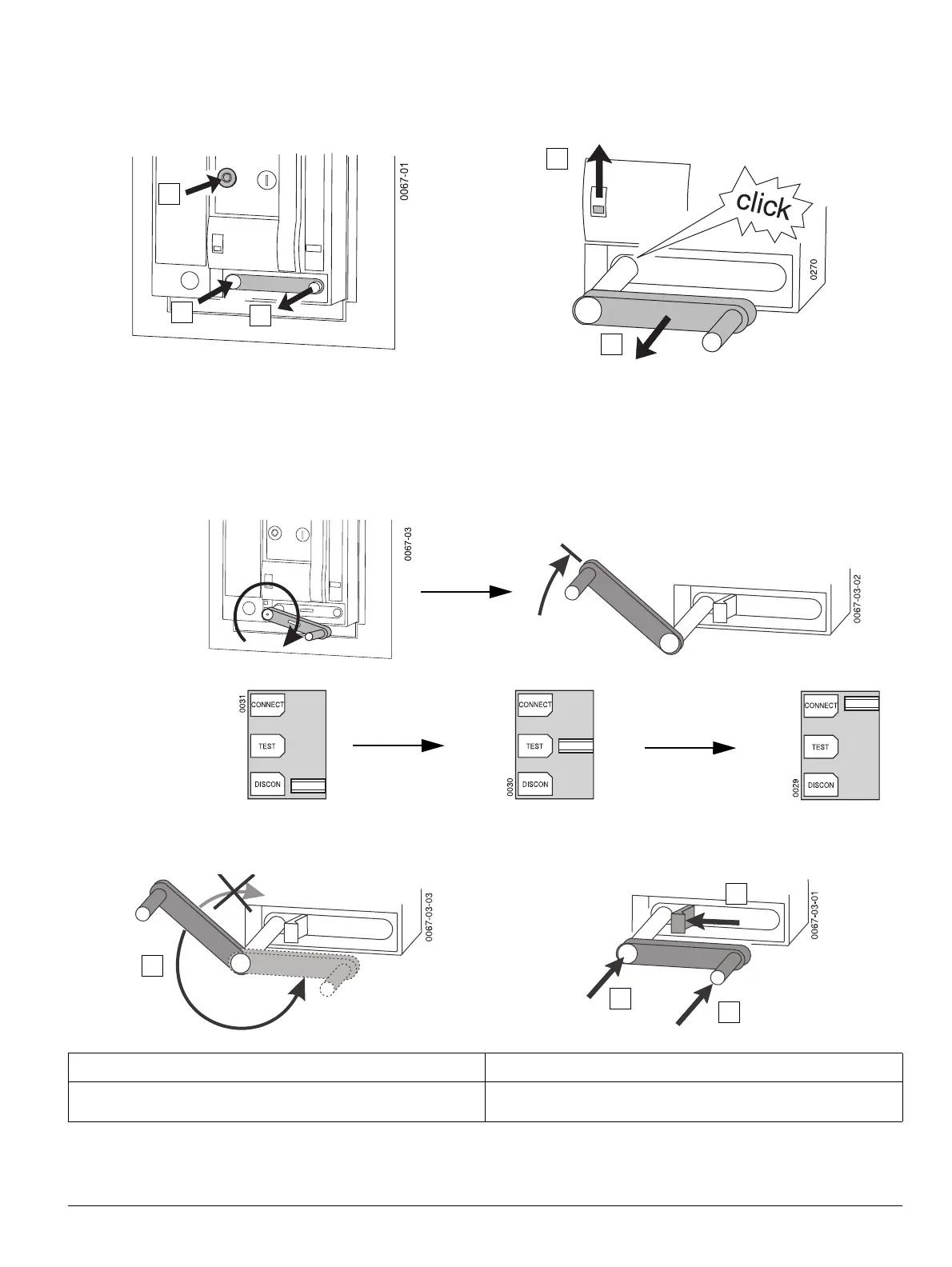

6.1.3 Un latch racking handle / Withdrawing racking
handle
1 OPEN circuit breaker
2 P
ush crank
3 Ext
ract handle
4 Lif
t control lever and hold
5 Ext
ract crank
6.1.4 Racking circuit breaker into connected position
6.1.5 Inserting racking handle
5
4
Hold!
Halten!
6.1.3 Handkurbelsperre lösen / Handkurbel
herausziehen
1 Ausschalten
2 K
urbel reindrücken
3 Her
ausziehen des Handgriffs
4 Heb
el hochdrücken und halten
5 K
ubel herausziehen
6.1.4 Schalter in Betriebsstellung verfahren
6.1.5 Handkurbel einschieben
VORSICHT CAUTION
Handkurbel nicht über den Anschlag hinaus drehen!
Anderenfalls wird der Einfahrantrieb beschädigt.
Do not turn the crank handle beyond the stop!
Otherwise the racking mechanism will be damaged.
3
2
1
Position indicator
Positionsanzeige
blue
blau
green
grün
red
rot
Stop / Anschlag
1
2
3
4
