11 – 3

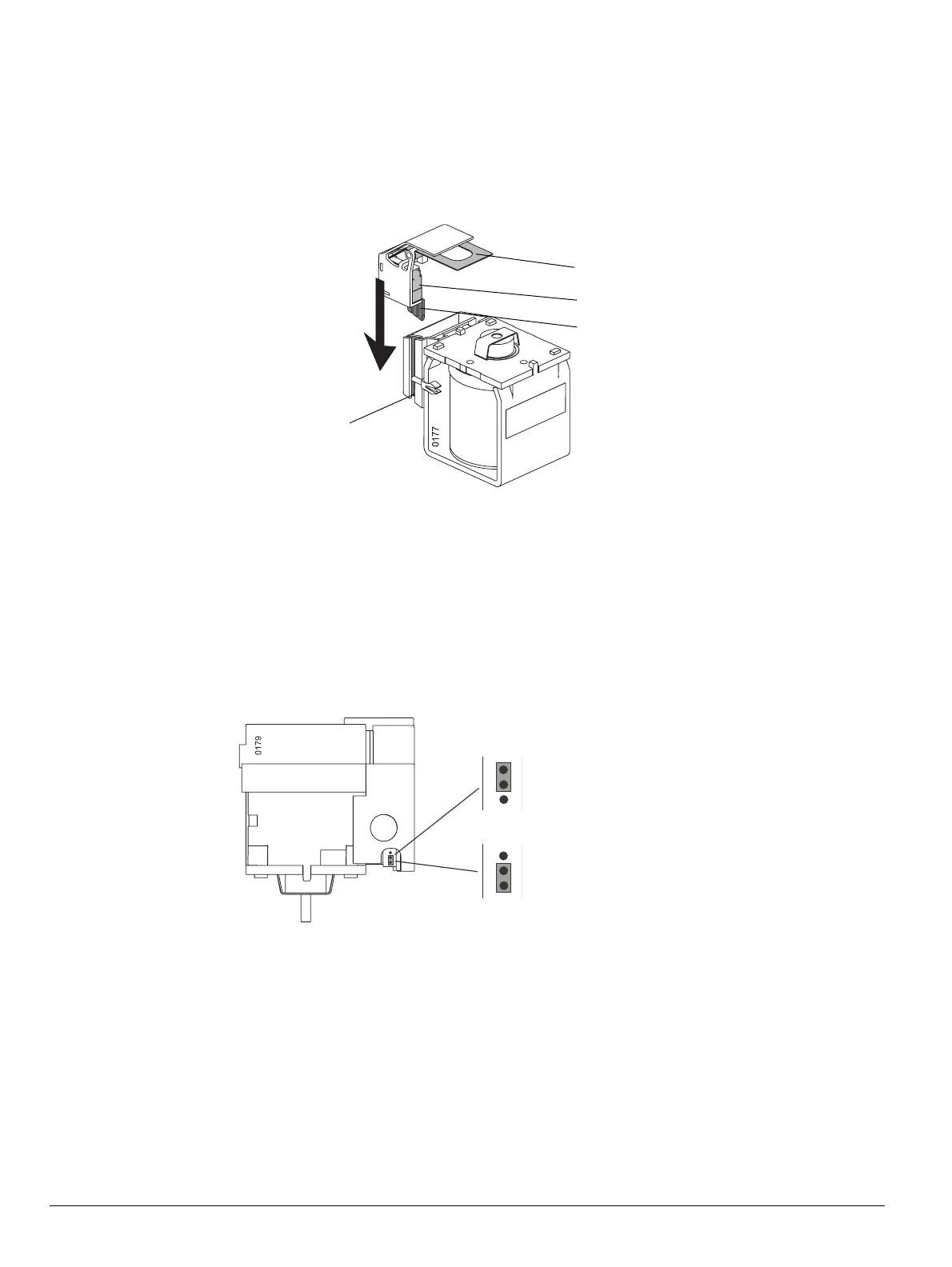

11.3 Installing optional signaling switches
on shunt trips, closing coils, and
und
ervoltage devices
Signals the switch position of the shunt trip, closing coil, or under-
voltage device to the BSS.
(1) See-saw
(2) Signaling switch
(3) Guide
(4) Groove
11.4 Setting delay times on
undervoltage release
Instantaneous release
11.3 Optionale Meldeschalter am
Hilfsauslöser anbringen
Meldet den Schaltzustand des Hilfsauslösers an den BSS.
(1) Wippe
(2) Meldeschalter
(3) Führung
(4) Nut
11.4 Verzögerungszeiten am
Unterspannungsauslöser einstellen
Unverzögerter Auslöser
(1)
(2)
(3)
(4)
short time delay:
instantaneous:
J1
t
d
q 80 milliseconds
t
d
q 200 milliseconds
kurzzeitverzögert:
unverzögert:
