11 – 2
11.2 Installing shunt trips, closing coils, and
undervoltage devices
- OPEN the circuit breaker and discharge springs
q (page 24-2)
- Move circuit breaker into maintenance position
q (page 24-3)
- Remove front panel q (page 24-4)
11.2 Hilfsauslöser nachrüsten
- Leistungsschalter ausschalten und Federspeicher ent-
spannen q (Seite 24-2)
- Leistungsschalter im Einschubrahmen in Wartungsposi-
tion bewegen q (Seite 24-3)
- Bedienpult abnehmen q (Seite 24-4).

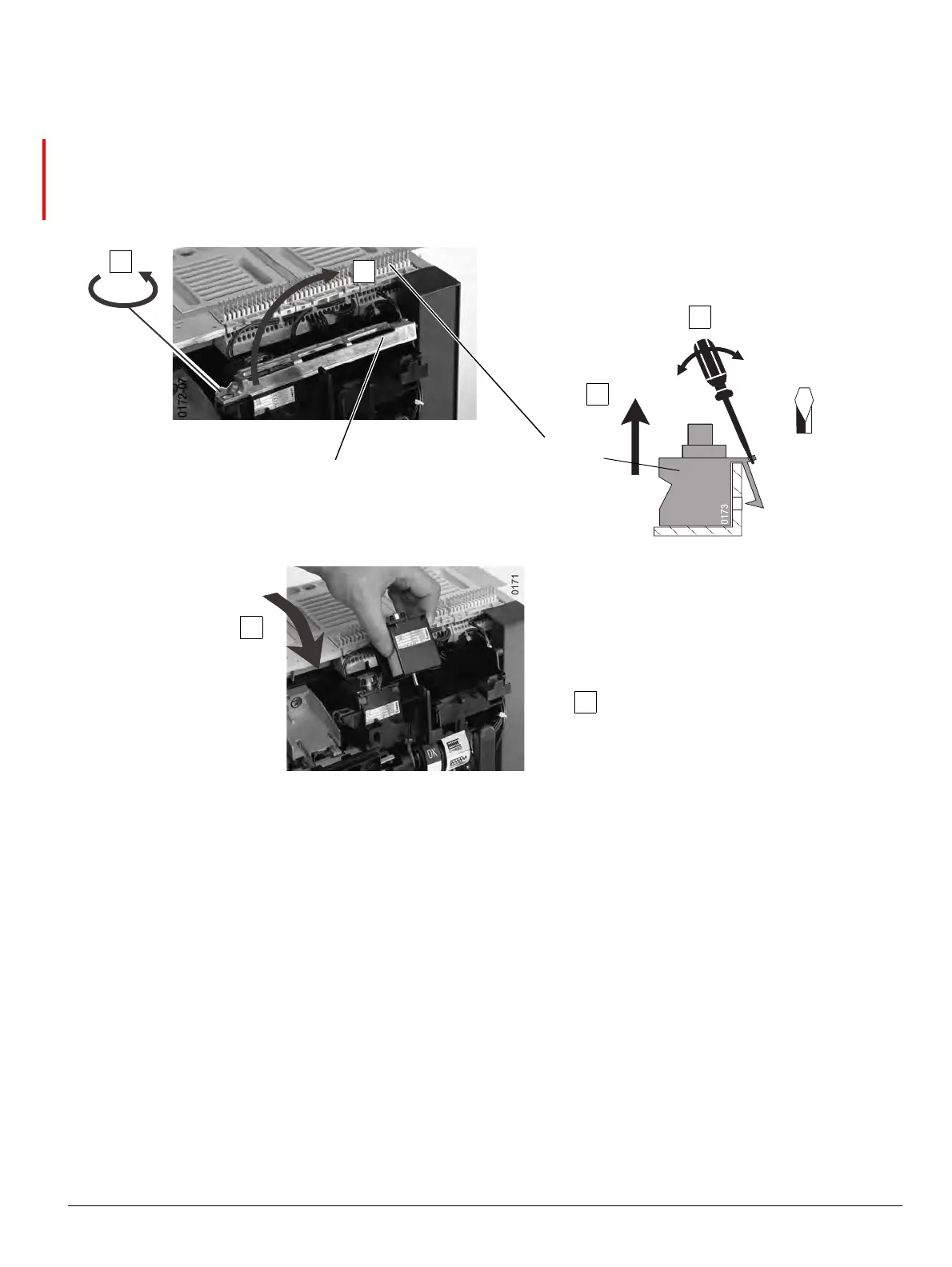

2
1
Retaining bracket
Haltebügel
For easier mounting, remove receptacle.
Für besseres Montieren Messerleiste abnehmen.
Receptacle
Messerleiste
3
4
Lift slightly only!
Nur leicht anhebeln!
5
6
Replace retaining bracket and screw down.
Haltebügel wieder aufsetzen und arretieren.
