Silca UC 199 - Main Working Parts (Standard)

1.3 MAIN WORKING PARTS (STANDARD)

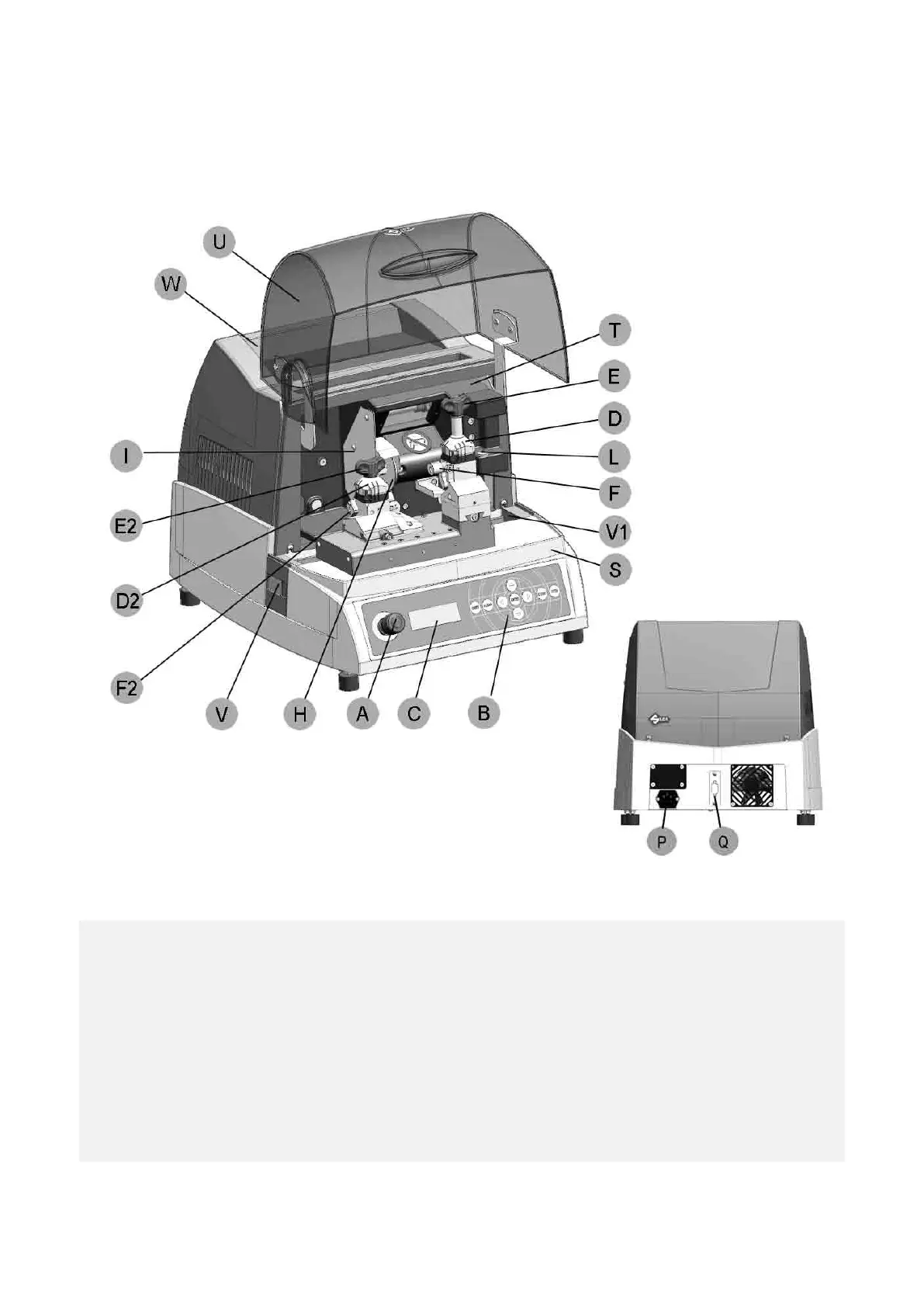

Fig. 8
A - master switch / emergency button
B
- keyboard
C - display
D - clamp optical reader
D2 -
clamp cutter side (standard)
E
- optical reader clamp knob
E2 -
clamp knob - cutter side
F -
key gauge - optical reader side
F2 -
key gauge - cutter side
H
- cutter
I
- cutter shield
L
- optical reader
P
- power input
Q - serial port
S
- X axis carriage
T
- Y axis front panel
U
- protective shield
V
- swarf tray
V1 -
swarf tray
W -
glove compartment
