Silca UC 199 - Fitting the Standard Clamp to the Machine

4.6 FITTING THE STANDARD CLAMP TO THE MACHINE
• To remove the standard clamp (cutting side):
loosen the screw (D2) (Fig. 32) the mechanical loader cannot be used when operating the key-cutting machine
with the standard 4 sided clamp.25) and slide the clamp unit out of the dovetail guide.
• To install the standard calmp unit (cutting side) on the machine:
slide the clamp into the dovetail guide, pushing it all the way in, then secure it by tightening the screw (D2).

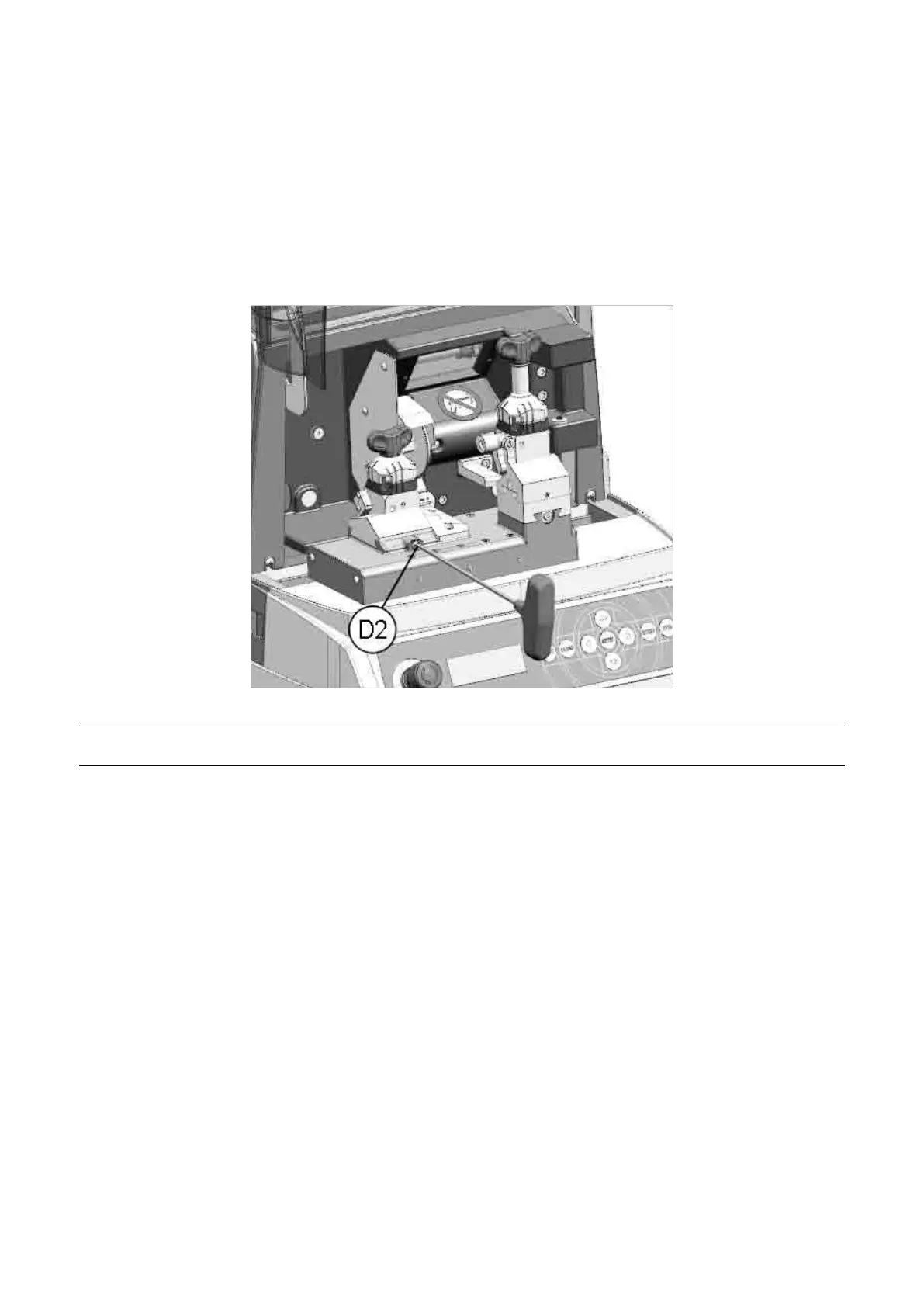

Fig. 32
NOTE: (with the optional Loader Unit) the mechanical loader cannot be used when operating the key-
cutting machine with the standard 4 sided clamp.
