7.12 REPLACING THE CONDENSER (MOTOR) AND/OR FEEDER (LAMP)
1) turn off the machine and disconnect from the power supply.
2) gain access to the bottom compartment (Ch. 7.4).
• CONDENSER (Motor)

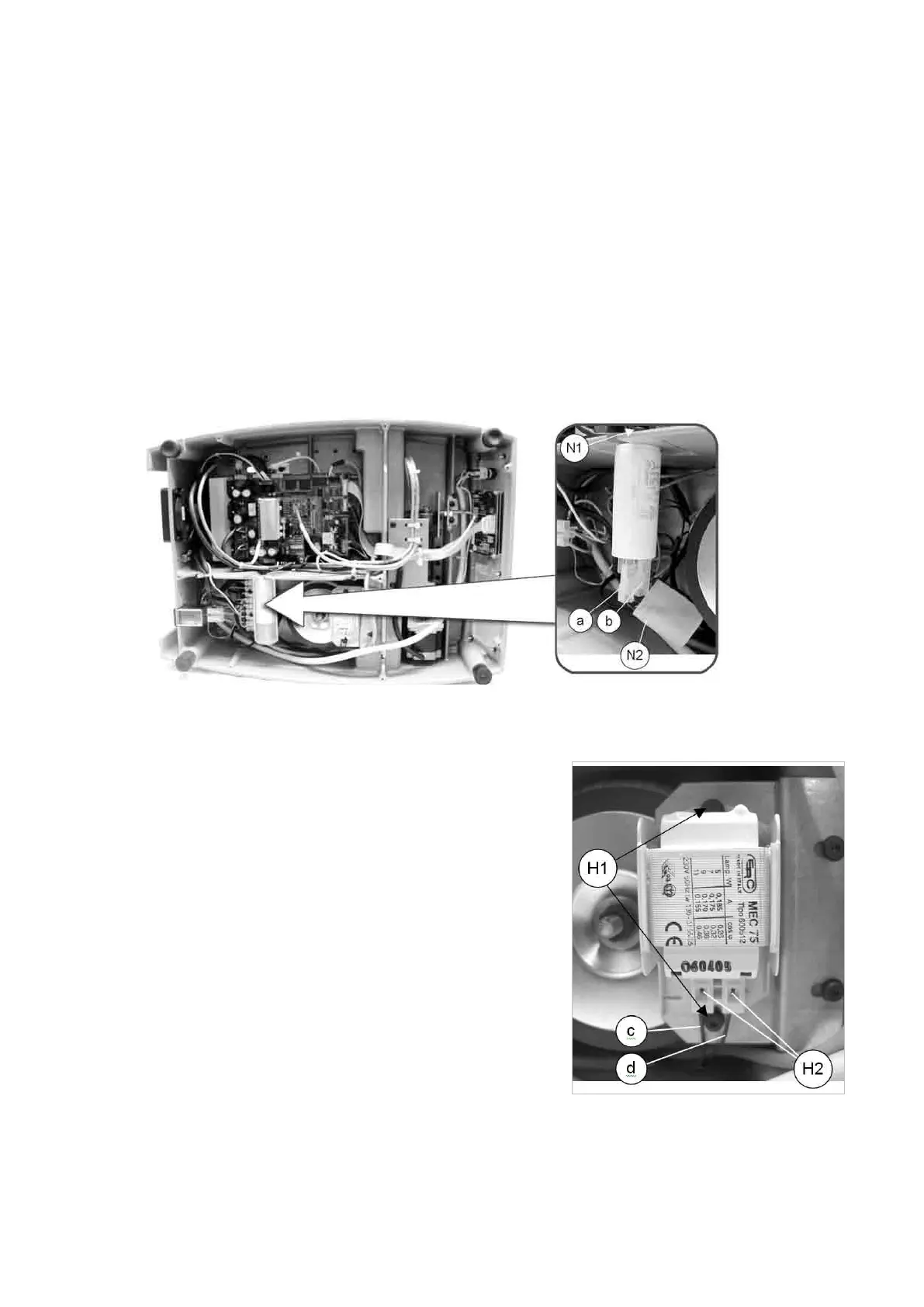

3) Loosen the nut (N1) and remove the washer and condenser (Fig. 94).
4) Fitthenewcondenserandxwiththewasherandnut.
5) Remove the cap (N2) from the new condenser.
6) Remove the cap from the old condenser and detach the connectors (a) and (b) from the old condenser to
connect them to the new one, paying attention to their positions.
7) Replace the cap (N2) on the new condenser.
8) Replacethebottomsafetyplate,xwiththe8screws(U3)(Ch.7.4,).
Fig. 94
• FEEDER (Lamp)
1) Loosen the 2 screws (H1) and remove the reactor (Fig. 96).
2) Use the tip of a small screwdriver to enter the slits (H2) and detach
the 2 wires (c) and (d).
3) Fit the 2 wires (c) and (d) into the special connections on the new
reactor.
4) Place the new reactor in its seat and secure with the 2 screws (H1).
5) Replacethebottomsafetyplateandxwiththe8screws(U3).(Ch.
7.4).
Fig. 95
