Simplex 4010ES Installation Guide

2-8
Operator interface
Overview The two operator interfaces which are available with the 4010ES are shown below.
The operator interface is used to obtain fire alarm, priority 2, supervisory, trouble, and other
statuses through the display and LEDs. Control functions are accessed using dedicated and
user-programmable keys.

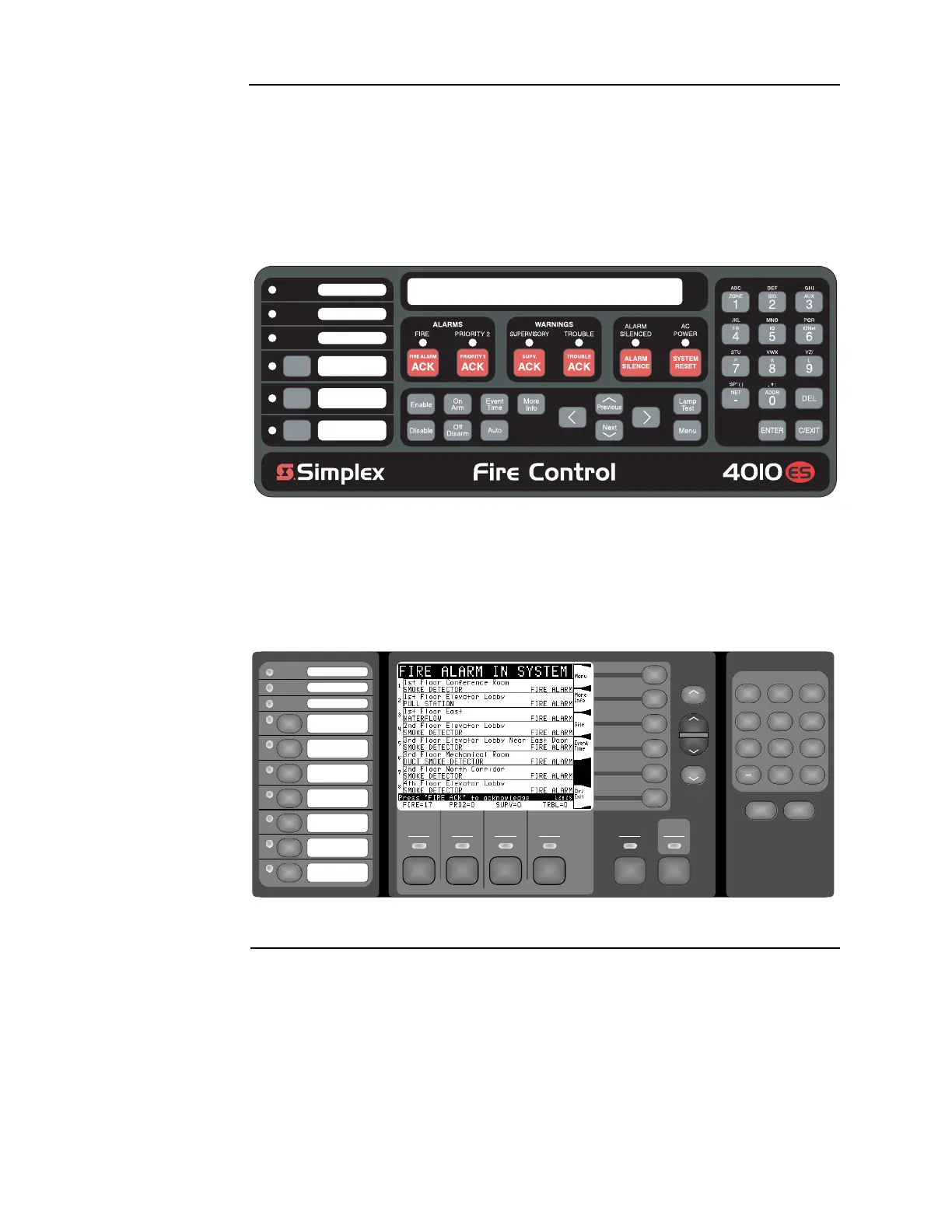

Figure 2-3 is the standard 2 x 40 LCD operator interface. This model includes a 2 line by 40
character liquid crystal display. The membrane is available in both English and French.
Figure 2-3. Standard operator interface
Figure 2-4 is the InfoAlarm operator interface. This model includes a larger graphical display,
which can display more information simultaneously.
Note: The InfoAlarm operator interface can only be installed on two-bay 4010ES panels. See Chapter 3,
“Panel Configurations,” for details on two-bay panels.
Figure 2-4. InfoAlarm operator interface
A B C D E F G H I
J K L M N O P Q R
'SP' ( ) , # :
S T U V W X Y Z /
ZONE
1
SIG
2
AUX
3
FB
4
IO
5
IDNet
6
P
7
A
8
L
9
NET ADDR
0
C/Exit
Menu Enter
Pre viou s
Next
Page Dn
Page Up
AC
Power
ALARMS
Fi re
Alarm
Priority 2
Alarm
WARNINGS
System
S upervi s ory
System
Troubl e
Alarm
Silenced
Fire Alarm
Ack
Priority 2
Ack
Supv
Ack
Troubl e
Ack
Alarm
Silence
System
Reset
Ground Fault
Waterflow-West
Waterflow-East
City Disconnect
Manual Evac
Door Holder
Bypass
Drill
Language
Toggle
Smoke Sensor
Almost Dirty Check
Lamp Test

Simplex 4010ES Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Operating Temperature	32°F to 120°F (0°C to 49°C)
Power Supply	120V AC or 240V AC
Zones	10
Communication Ports	RS-232, Ethernet
Signaling Line Circuits (SLCs)	2
Notification Appliance Circuits (NACs)	4
Max Notification Appliances	Varies based on NAC configuration and power supply
Communication Options	Cellular, Ethernet
Weight	30 lbs
Humidity Range	Up to 93% non-condensing
Certifications	UL, FM, CSFM, MEA
Network Capability	Yes
