One-bay 4010ES Panels
Overview The basic components are shipped pre-assembled inside the 4010ES panel. The optional
components need to be ordered and installed separately.
The one-bay 4010ES panel comes in three configurations. Table 4-1 of Chapter 4, “Orderable
Panels and Devices,” lists the basic components that are shipped with each of the three
configurations.
Note: The dead front on a one-bay 4010ES panel is different for 48-LED Module configurations, as seen in
Figure 3-1. See Figure 3-2 for detailed diagrams of one-bay 4010ES panels.

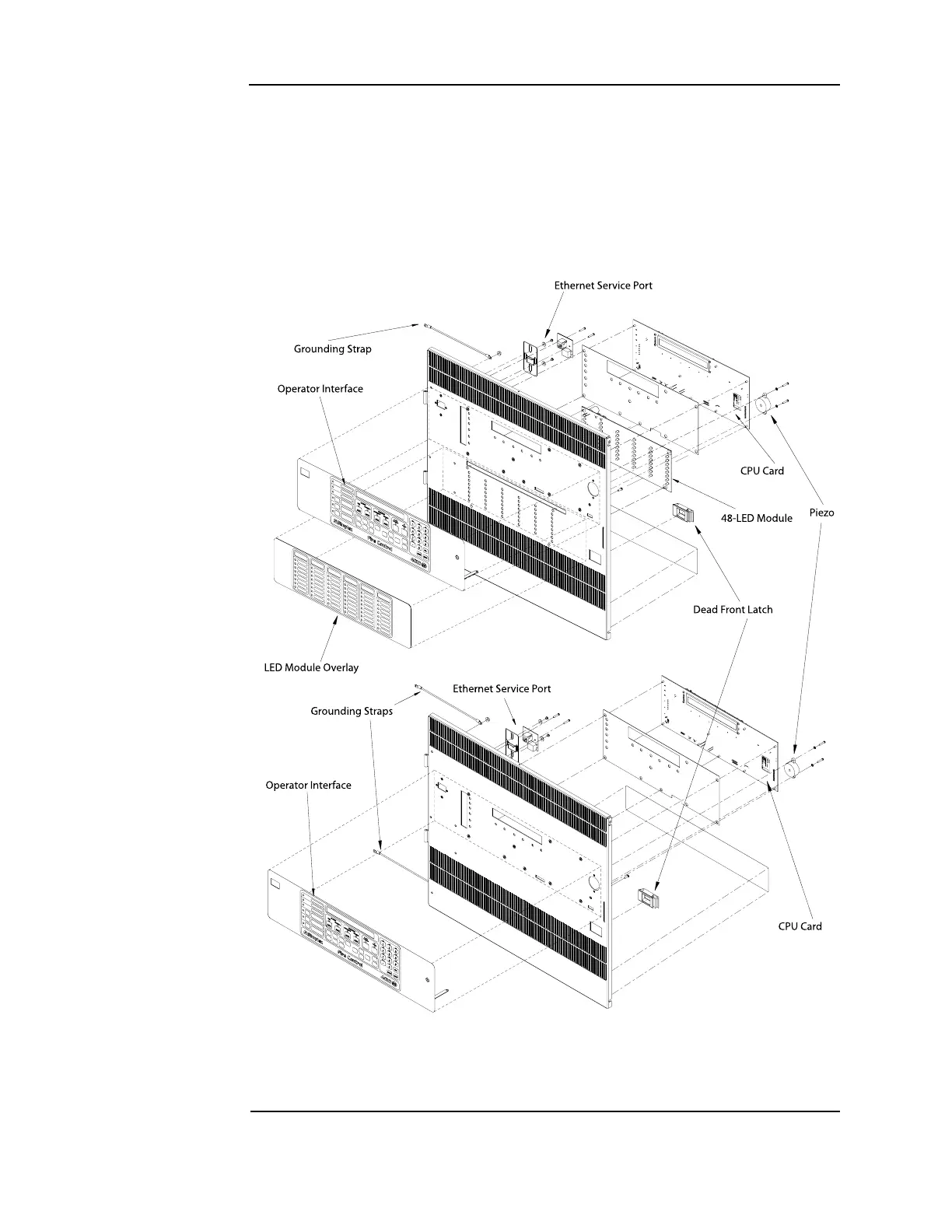

Figure 3-1. One-bay dead front with and without 48-LED Module
Continued on next page
With 48 LED Module
Without 48 LED Module
