Simplex 4010ES Installation Guide

5-14
Address configuration DIP switch
Overview Addressable cards include a bank of eight DIP switches. From left to right (Figure 5-14) these
switches are designated as SWx-1 through SWx-8. The function of these switches is as
follows:
• SWx-1. This switch sets the baud rate for the internal 4010ES communications line
running between the card and the CPU. Set this switch to ON.
• SWx-2 through SWx-8. These switches set the card’s address within the 4010ES FACP.
Refer to Table 5-1 for a complete list of the switch settings for all of the possible card
addresses.
Note: You must set these switches to the value assigned to the card by the ES Panel Programmer.

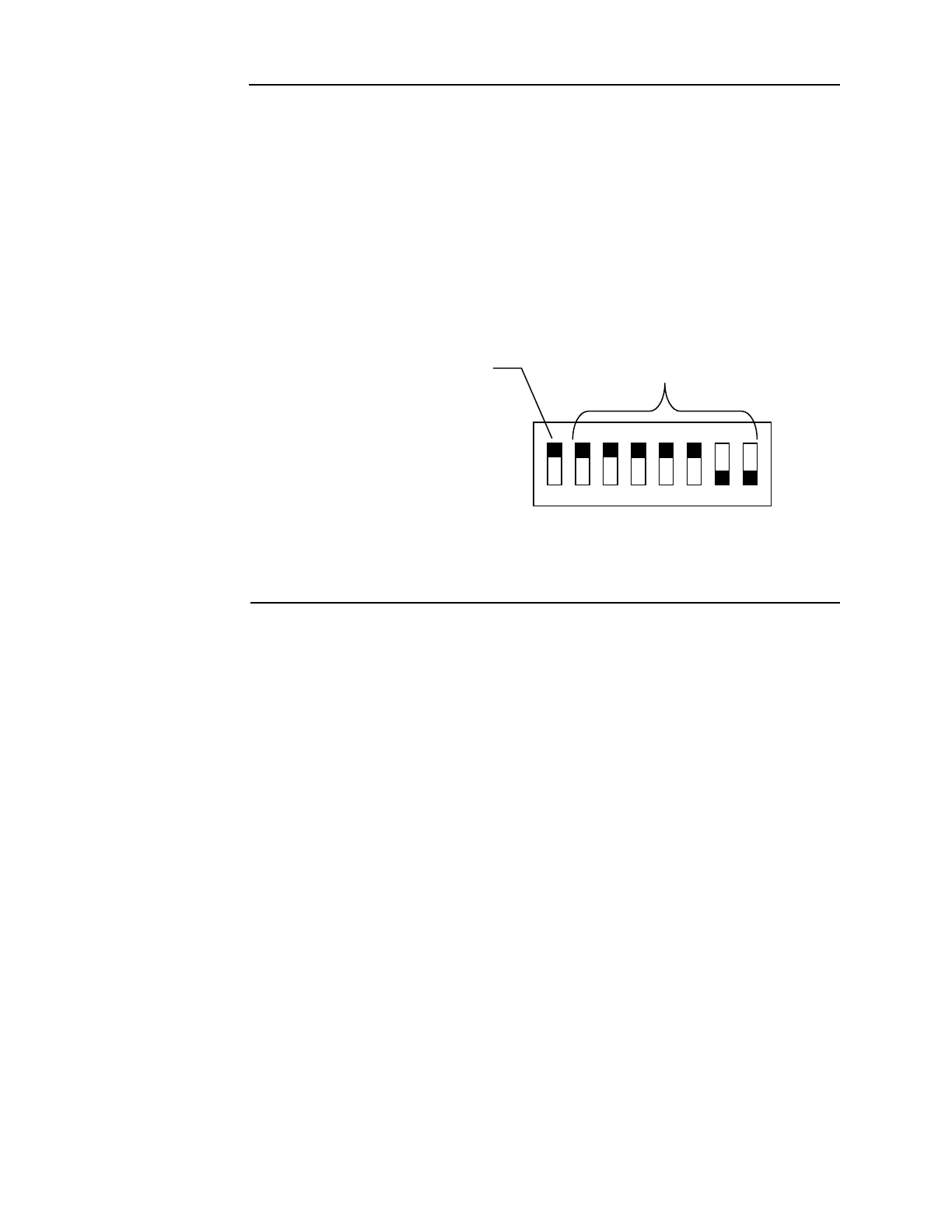

Figure 5-14. DIP switch SWx
Continued on next page
18765432
ON
OFF
DIP Switches SWx-2 through
SWx-8 set the Card Address.
Figure shows an Address of 3.
4100 Comm. Baud Rate.
Switch (SWx-1)
Must Be Set to ON

Simplex 4010ES Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Operating Temperature	32°F to 120°F (0°C to 49°C)
Power Supply	120V AC or 240V AC
Zones	10
Communication Ports	RS-232, Ethernet
Signaling Line Circuits (SLCs)	2
Notification Appliance Circuits (NACs)	4
Max Notification Appliances	Varies based on NAC configuration and power supply
Communication Options	Cellular, Ethernet
Weight	30 lbs
Humidity Range	Up to 93% non-condensing
Certifications	UL, FM, CSFM, MEA
Network Capability	Yes
