Simplex 4010ES Installation Guide

3-6
Two-bay 4010ES Panels
Overview A two-bay system is used when more option card space is required than is given in a one-bay
system, or when InfoAlarm is the primary display. Refer to Figure 2-4 for an illustration of the
InfoAlarm interface.
The basic components of the two-bay panels are the same as for the one-bay panels and are pre-
installed in the top bay. The expansion bay contains another PDI card with eight available
blocks. Those can be used to connect optional modules to the 4010ES panels. The Expansion
Bay PDI card comes pre-installed inside the two-bay panel.
See Figures 3-3 through 3-5 for two-bay 4010ES diagrams.

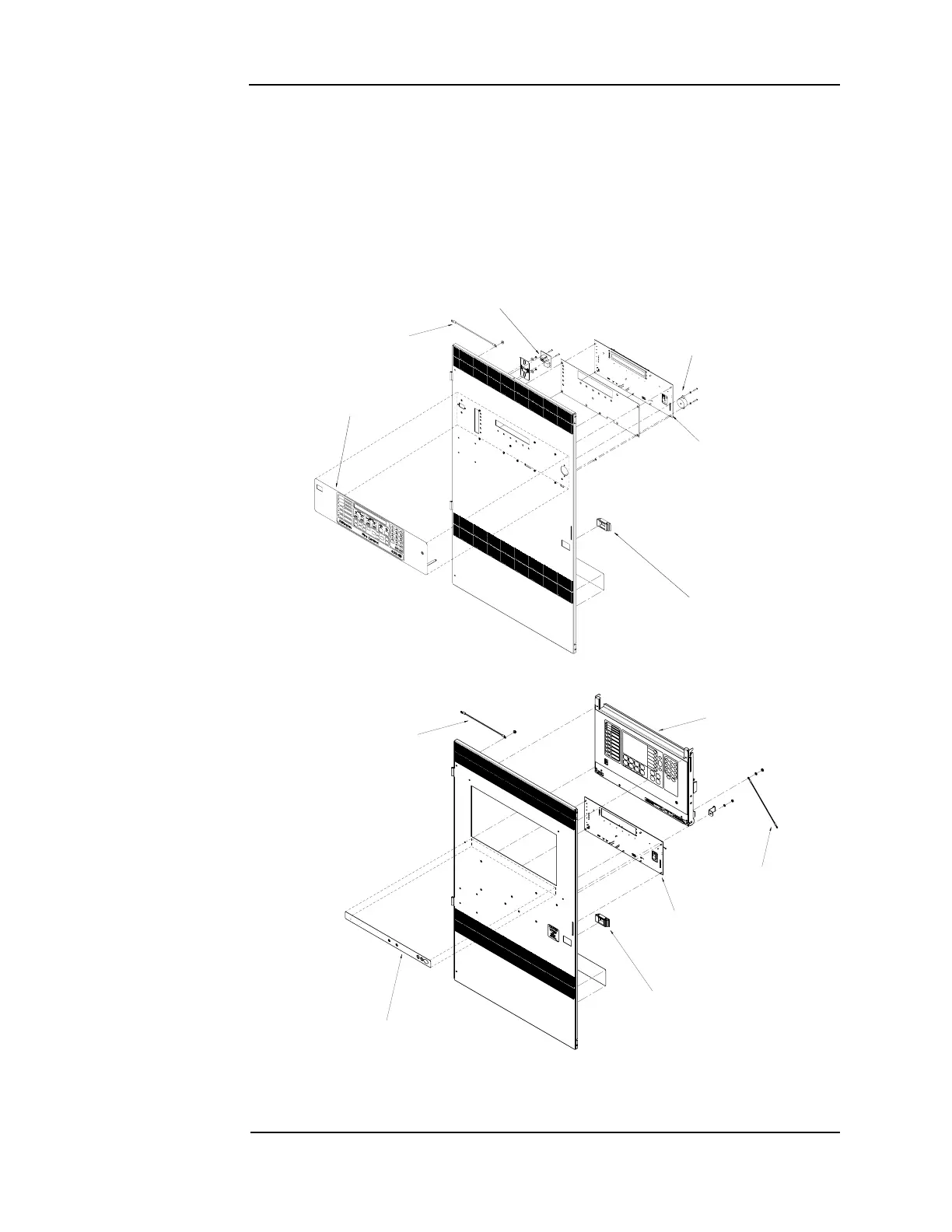

Figure 3-3. Two-bay, standard and InfoAlarm dead fronts
Continued on next page
#05#ARD
/PERATOR)NTERFACE
'ROUNDING3TRAP
$EAD&RONT,ATCH
0IEZO
%THERNET3ERVICE0ORT
'ROUNDING3TRAP
'ROUNDING3TRAP
#05#ARD
)NFO!LARM5SER
)NTERFACE
)NFO!LARM!PPLIQUE
3TANDARD5SER)NTERFACE
)NFO!LARM5SER)NTERFACE
$EAD&RONT,ATCH

Simplex 4010ES Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Operating Temperature	32°F to 120°F (0°C to 49°C)
Power Supply	120V AC or 240V AC
Zones	10
Communication Ports	RS-232, Ethernet
Signaling Line Circuits (SLCs)	2
Notification Appliance Circuits (NACs)	4
Max Notification Appliances	Varies based on NAC configuration and power supply
Communication Options	Cellular, Ethernet
Weight	30 lbs
Humidity Range	Up to 93% non-condensing
Certifications	UL, FM, CSFM, MEA
Network Capability	Yes
