Simplex 4010ES Installation Guide

2-9
Main system supply (MSS)
Overview The MSS is the power source for the FACP. It provides 24 VDC card power to the 4010ES.
Table 2-11 lists the MSS capabilities.
The MSS also performs standard fire alarm functions, such as brownout detect, battery transfer,
battery recharge, earth fault detection, and power limiting per UL 864. It is shipped, installed,
and connected in the 4010ES panel. Figures 2-5 and 2-6 illustrate a 4010ES MSS.
Note: The type of MSS you get depends on the base panel selected. See Chapter 3, “Panel
Configurations.”

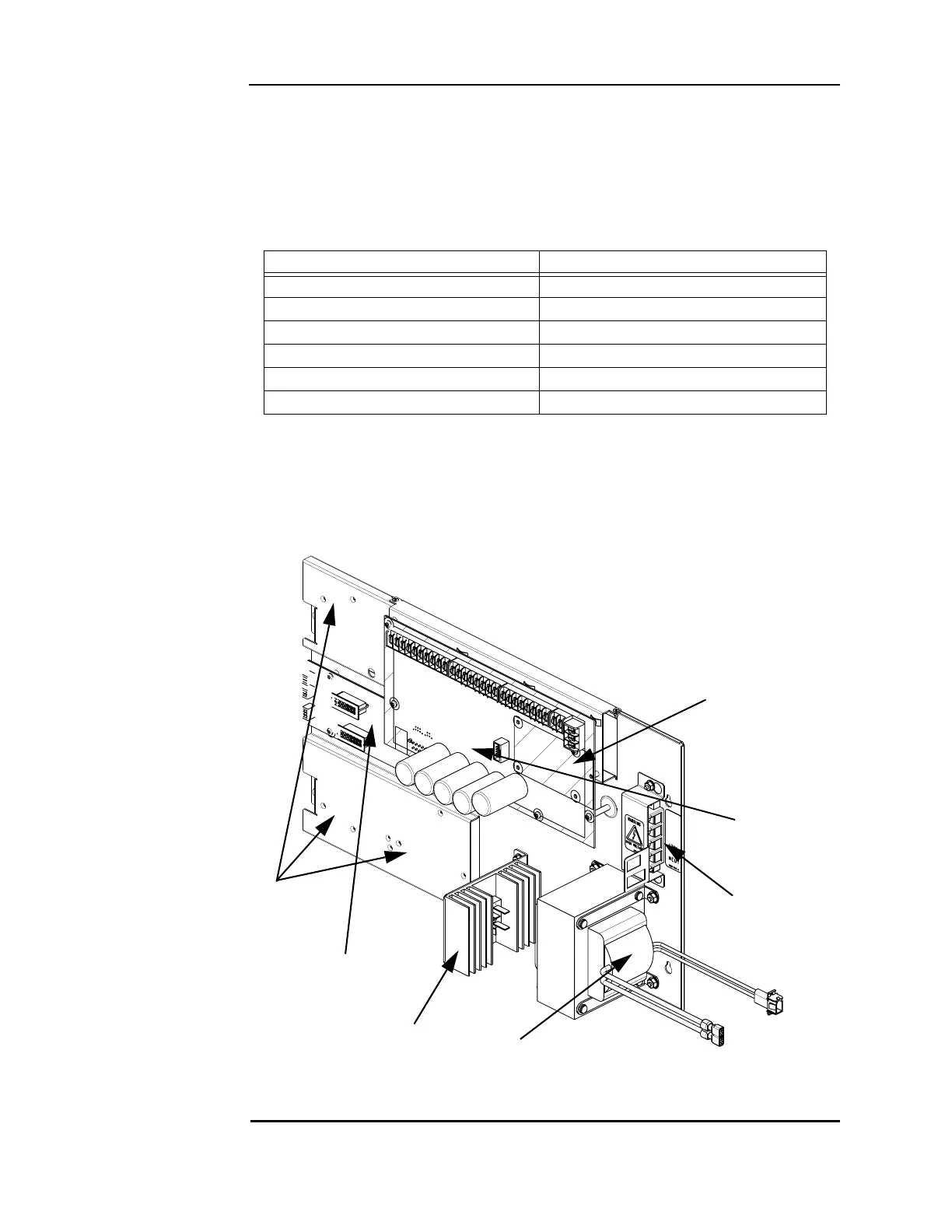

Figure 2-5. MSS shown with IDNet
Continued on next page
Table 2-11. MSS capabilities
MSS with IDNet MSS without IDNet
8 A of available power 8 A of available power
4 Class A NACs 4 Class A NACs
Battery charger (Note) Battery charger (Note)
1 AUX relay (2 A, 32 V) 1 AUX relay (2 A, 32 V)
1 AUX power tap (2 A) 1 AUX power tap (2 A)
Single channel, Dual Isolated Loop IDNet+
Note: The 4010ES can hold a maximum of 33 Ah batteries in the one-bay box and 50 Ah in the two-
bay box. The MSS charger is listed for 110 Ah UL and 50Ah ULC.
Top Bay
PDI card
Rectifier
Option Card
Blocks
Optional City Card
or Relay Card
Mounting Space
Transformer
AC Block
MSS

Simplex 4010ES Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Operating Temperature	32°F to 120°F (0°C to 49°C)
Power Supply	120V AC or 240V AC
Zones	10
Communication Ports	RS-232, Ethernet
Signaling Line Circuits (SLCs)	2
Notification Appliance Circuits (NACs)	4
Max Notification Appliances	Varies based on NAC configuration and power supply
Communication Options	Cellular, Ethernet
Weight	30 lbs
Humidity Range	Up to 93% non-condensing
Certifications	UL, FM, CSFM, MEA
Network Capability	Yes
