Simplex 4010ES Installation Guide

A-8
Setting Alarm Reset/Inhibit Timer
Overview The Alarm Reset/Inhibit Timer system option disables the Alarm Silence and System Reset
keys for a user-definable duration that ranges from 1 to 60 minutes. The timer is activated only
by the first alarm (i.e., subsequent alarms do not reset the timer).
Note: The default setting is not enabled. This option must be enabled for Canadian jobs
Enabling Alarm
Reset/Inhibit
Timer
To enable the Alarm Reset/Inhibit Timer, do the following:
1. Click on the Panel tab at the top of the programmer.
2. Click on the System Options tab at the bottom of the programmer. A screen similar to the
one shown below appears.
3. Click on the checkbox to the right of Alarm Silence/Reset Inhibit. Specify the timer value in
the Seconds box to the right of the checkbox.

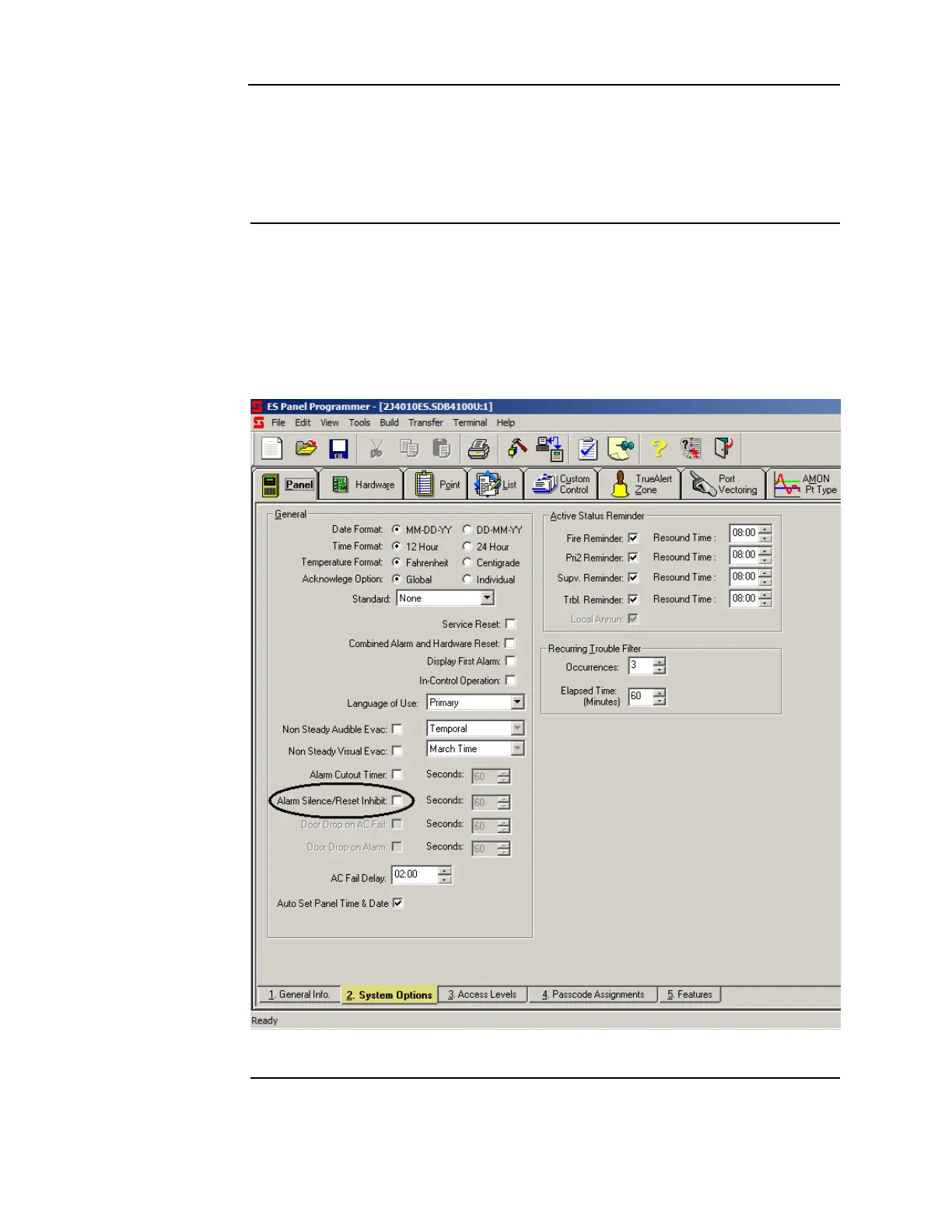

Figure A-8. The Panel: System Options tab

Simplex 4010ES Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Operating Temperature	32°F to 120°F (0°C to 49°C)
Power Supply	120V AC or 240V AC
Zones	10
Communication Ports	RS-232, Ethernet
Signaling Line Circuits (SLCs)	2
Notification Appliance Circuits (NACs)	4
Max Notification Appliances	Varies based on NAC configuration and power supply
Communication Options	Cellular, Ethernet
Weight	30 lbs
Humidity Range	Up to 93% non-condensing
Certifications	UL, FM, CSFM, MEA
Network Capability	Yes
