Simplex 4010ES - Page 50

5-6
General field wiring guidelines, continued
Power-limited
guidelines

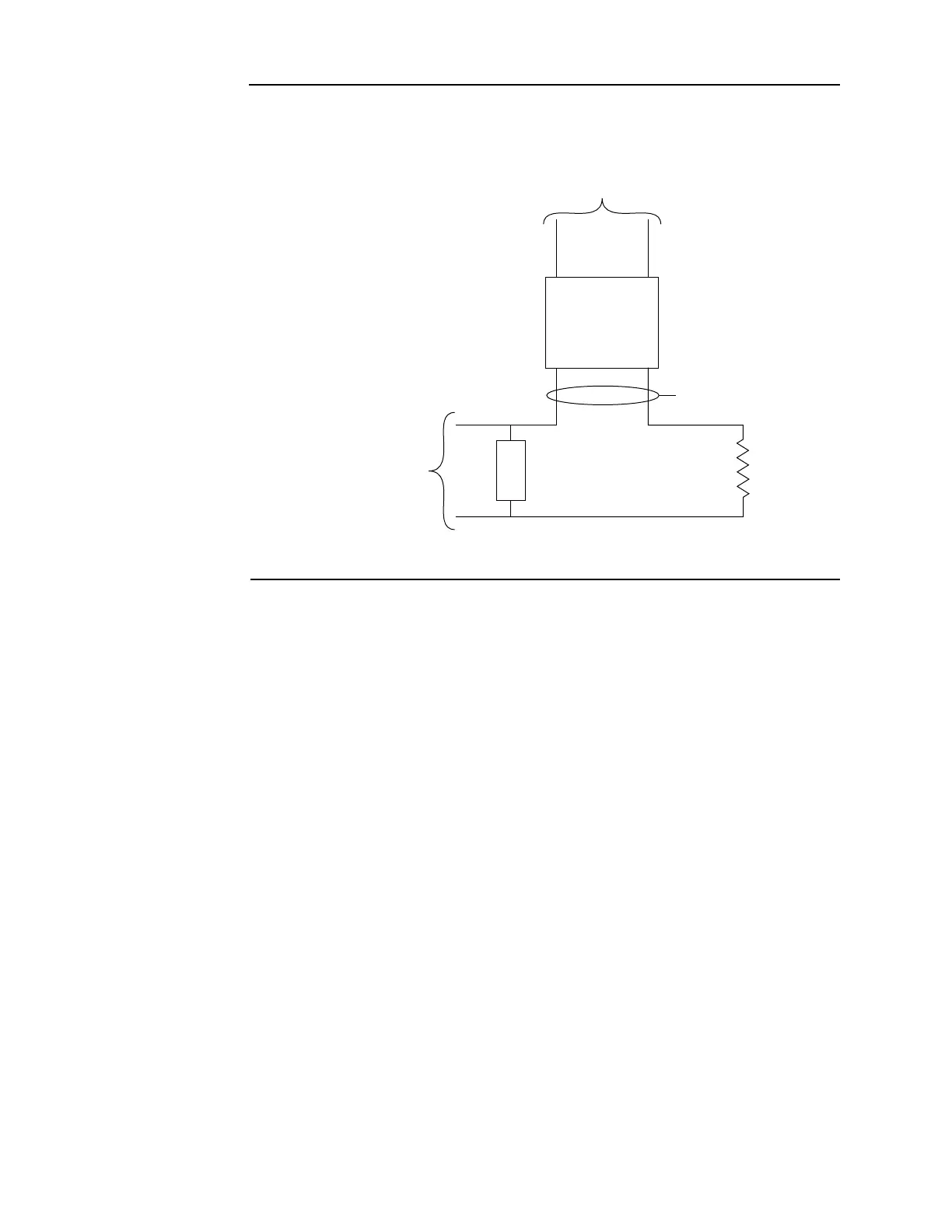

Figure 5-6. The EOL relay
2098-9739
END OF
LINE RELAY
TO AUX POWER
RED BLACK
LAST IDC
DEVICE
YELLOW
RESISTORIDC
Note: The 2098-9739 Relay is
used as an example.
Other UL Listed 24VDC
EOL relays can be used,
depending on the
application.
