Radar
Ú
Note: Radar is available if the unit has a Radar connection on
the back.
The radar panel can be set up as a full screen view or combined
with other panels.
The radar image can also be displayed as an overlay on a chart
panel. For more information, see "Radar overlay" on page 108.
Ú
Note: Radar overlay requires data from a heading sensor or
compass to ensure proper orientation with the chart.
About radar
Several radar sensors are supported.
This chapter describes features and options for a variety of
supported radars. The features and options available to you are
dependent on the radar antenna(s) connected to your system.

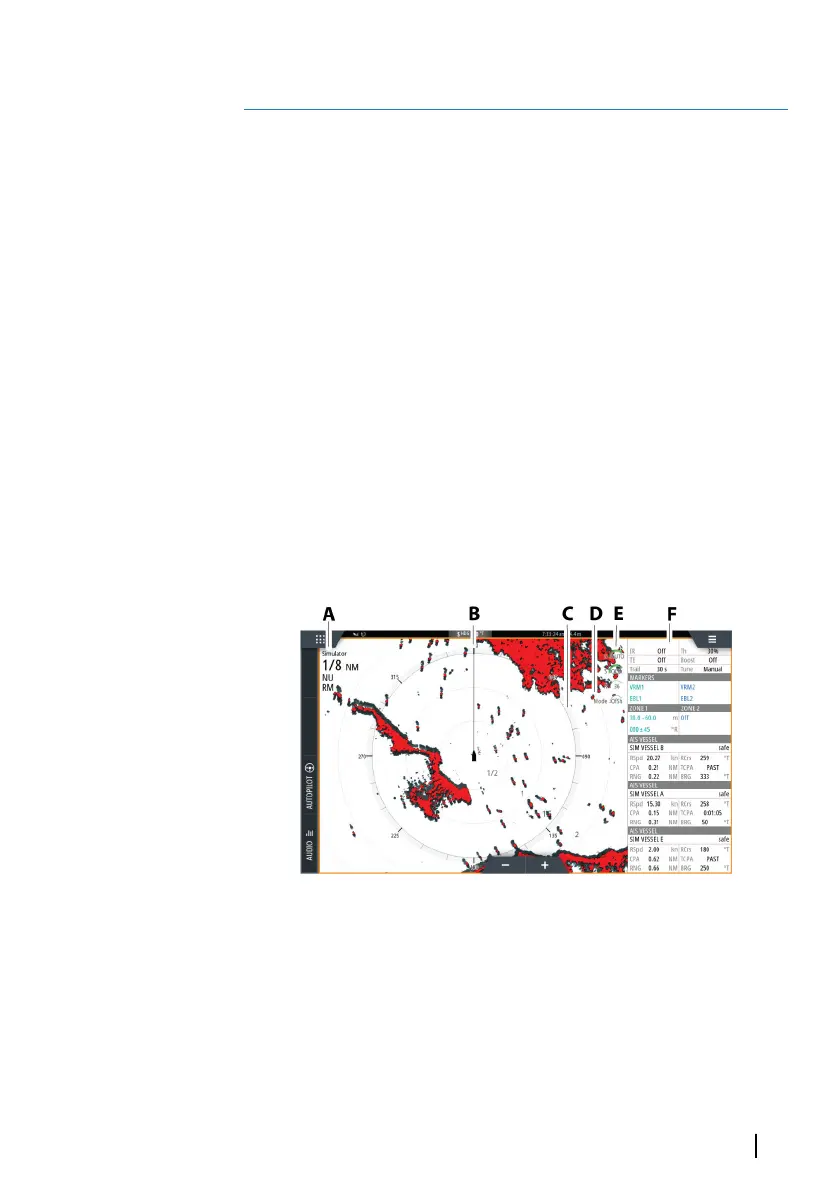

The Radar panel
A Radar information window
B Heading line*
C Compass*
D Range rings*
E Quick access buttons **
F Data bar *
11
Radar | GO XSE/XSR Operator Manual
