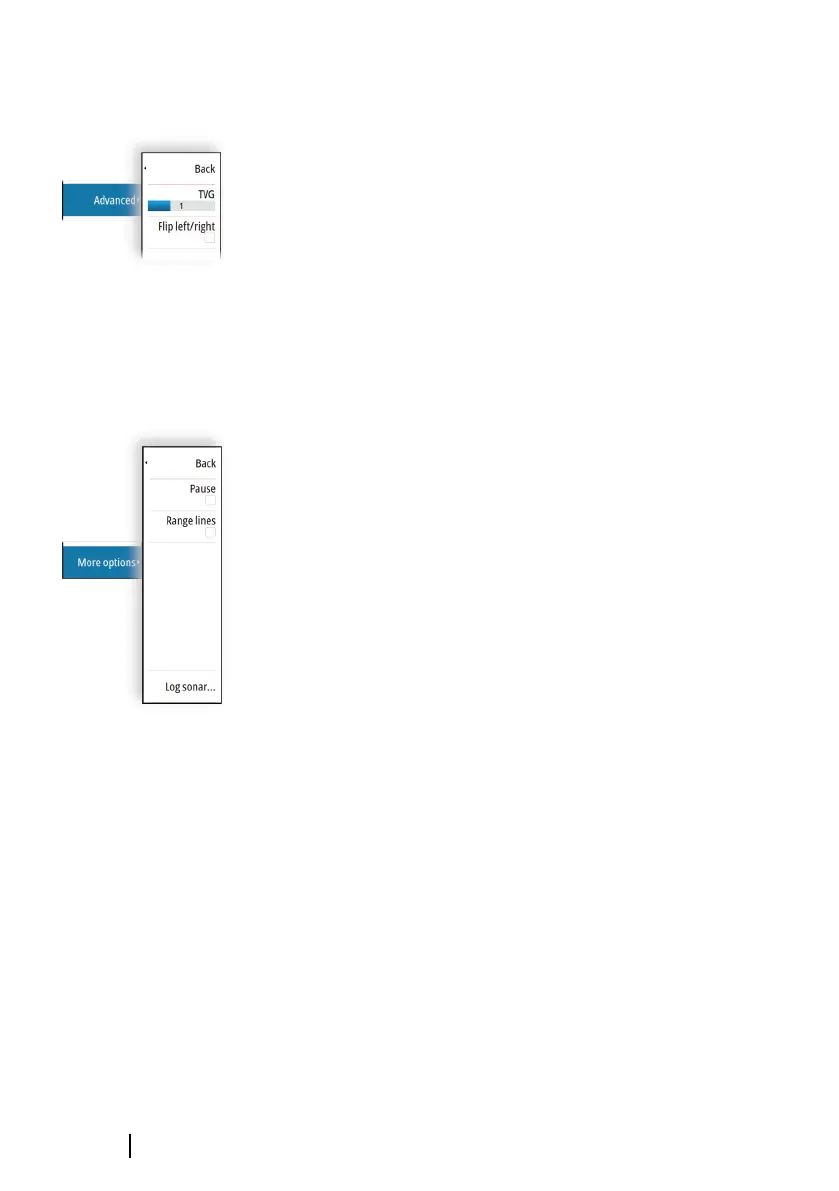

Advanced options
TVG
Wave action and boat wakes can cause onscreen clutter near the
surface. The TVG (Time Variable Gain) option reduces surface clutter
by decreasing the sensitivity of the receiver near the surface.
Flipping the image left/right
If required, flips the left/right side of the image to match the
direction of the transducer installation.
More options
Pause
Pauses the image, allowing you to examine the image in detail.
The pause function stops the echosounder from pinging. The
system is not collecting data when paused in this manner.
Range Lines
Range lines can be added to the image to make it easier to estimate
distance.
Recording SideScan data
Displays the record log dialog. SideScan data can be recorded by
selecting the correct file format (xtf) in the record dialog. For more
information, refer to "Recording log data" on page 149.
Echosounder settings
Use the echosounder settings dialog to make settings to your
echosounder system. Refer to "Echosounder settings" on page 156.
