Palette
Select between several display palettes optimized for a variety of
fishing conditions.
Ú
Note: Palette choice is often a user preference, and may vary
depending on the fishing conditions. It is best to select a
palette that provides good contrast between the image details
and FishReveal arches.
Advanced options
TVG
Wave action and boat wakes can cause onscreen clutter near the
surface. The TVG (Time Variable Gain) option reduces surface clutter
by decreasing the sensitivity of the receiver near the surface.

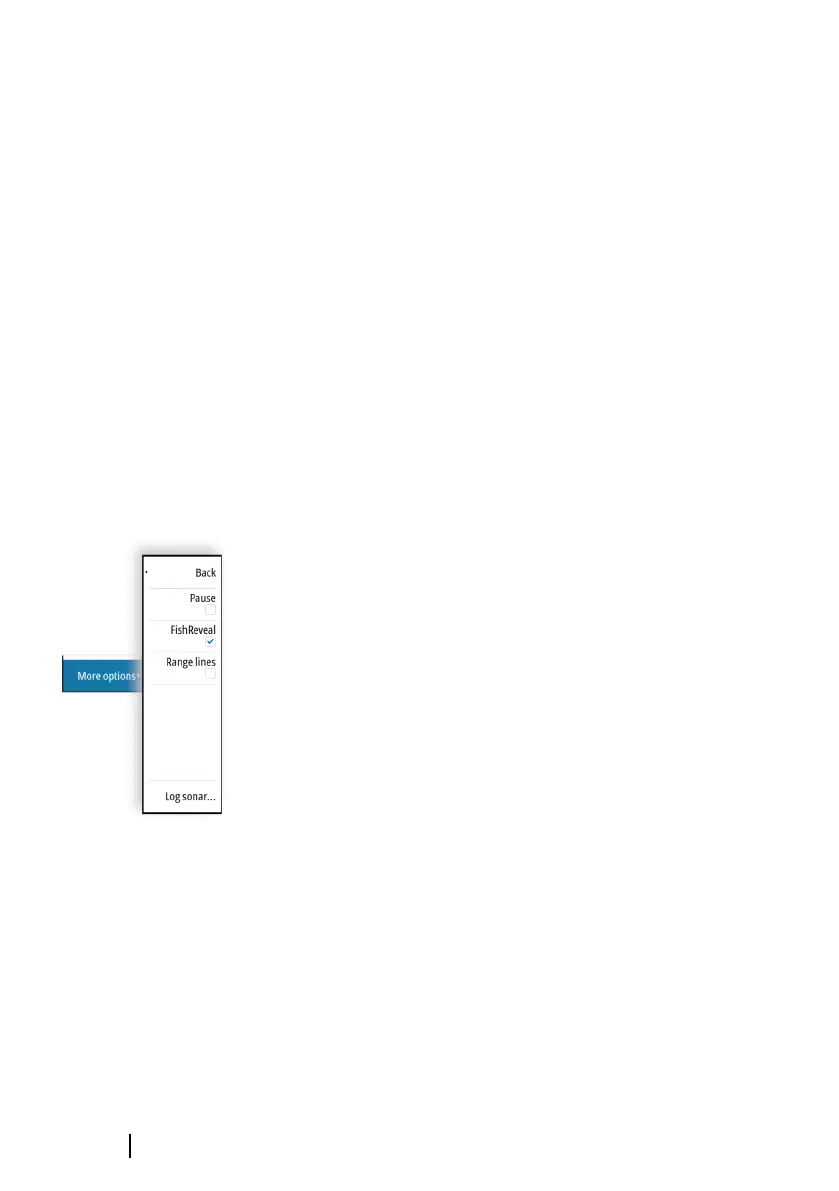

More options
Pause
Pauses the image, allowing you to examine the image in detail.
The pause function stops the echosounder from pinging. The
system is not collecting data when paused in this manner.
FishReveal option
When FishReveal is enabled, displays fish arches in the image. Refer
to "FishReveal" on page 165.
Range lines
Range lines can be added to the image to make it easier to estimate
depth.
Recording DownScan data
Displays the record log dialog. DownScan data can be recorded by
selecting the correct file format (xtf) in the record dialog. For more
information, refer to "Recording log data" on page 149.
166
DownScan | GO XSE/XSR Operator Manual
