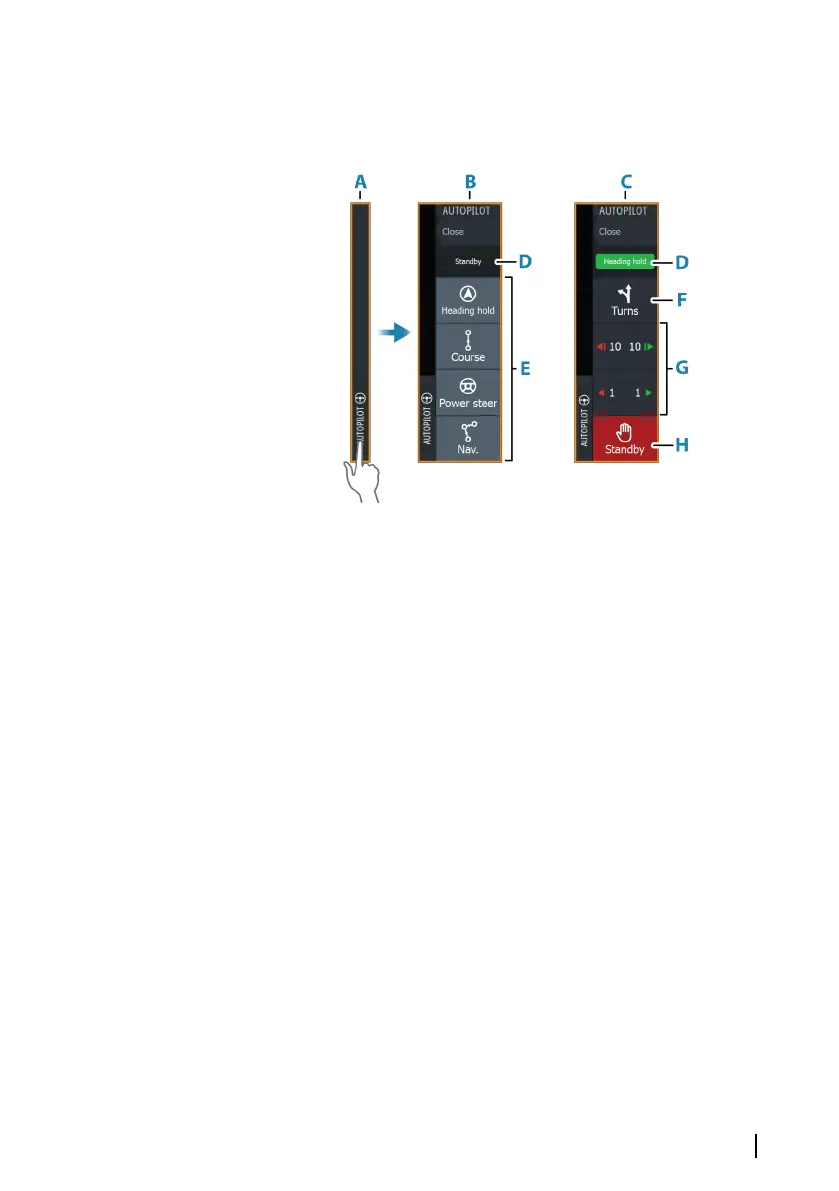

Outboard motors autopilot (NAC-1)
controller
A
Control bar
B
Autopilot controller, disengaged
C
Autopilot controller, engaged
D
Mode indication
E
Mode buttons
F
Turns button
G
Mode dependent buttons
H
Standby button
Engaging and disengaging the autopilot
To engage the autopilot:
•
Select the engage button to activate last active mode
•
Select the mode button to display the list of available modes,
then select the preferred mode
Outboard autopilot
| GO XSE/XSR Operator Manual
99
98
100
Table of Contents
Table of Contents
9
Introduction
17
Front Controls
17
Card Reader
17
Home Page
18
Application Pages
21
Basic Operation
23
Turning the System on and off
23
Remote Controllers
23
System Controls Dialog
23
Screen Capture
25
Customizing Your System
26
Customizing the Home Page Wallpaper
26
Customizing the Long Press Feature
26
Multiple Panel Pages
27
Customizing Favorite Pages
27
Customizing the Instrument Bar
28
Adjusting the Split on Multiple Panel Pages
31
Enabling or Disabling Features
32
Activating/Deactivating Features and Applications
32
Password Protection
33
Charts
34
The Chart Panel
34
Chart Data
34
Chart Sharing
35
Selecting Chart Source
35
Showing Dual Chart Sources
35
Vessel Symbol
35
Zooming the Chart
35
Panning the Chart
35
Chart Orientation
36
Look Ahead
36
Displaying Information about Chart Items
37
Using the Cursor on the Panel
37
Measuring Distance
38
Saving Waypoints
39
Creating Routes on the Chart Panel
39
Find Objects on Chart Panels
39
3D Charts
40
Chart Overlay
40
MAP Charts
41
Navionics Charts
46
Chart Settings
50
Waypoints, Routes, and Tracks
53
Waypoints, Routes, and Tracks Dialogs
53
Waypoints
53
Routes
55
Tracks
59
Using the Synchronize Feature
61
Navigating
63
About Navigating
63
Navigation Panels
63
Menu Options
65
Navigating with the Autopilot
65
Navigation Settings
65
Tripintel
69
About Tripintel
69
Current Trip Statistics
69
Automatic Trip Recording
69
Start and Stop Trip Recordings
70
Long-Term Statistics
70
Estimated Fuel Range Ring
71
Fuel Gauge
72
Tide Gauge
72
View Trip Recordings
72
Autopilot
74
Safe Operation with the Autopilot
74
Selecting Active Autopilot
74
The Autopilot Controller
75
Engaging and Disengaging the Autopilot
75
Autopilot Indication
76
Autopilot Modes
76
Autopilot Settings
84
Trolling Motor Autopilot
88
Safe Operation with the Autopilot
88
Selecting Active Autopilot
88
The Autopilot Controller for Trolling Motor
89
Engaging and Disengaging the Autopilot
89
Autopilot Indication
90
Autopilot Modes
90
Trolling Motor Speed Control
94
Recording and Saving a Track
94
Autopilot Settings
95
Outboard Autopilot
98
Safe Operation with the Autopilot
98
Selecting Active Autopilot
98
Outboard Motors Autopilot (NAC-1) Controller
99
Engaging and Disengaging the Autopilot
99
Autopilot Indication
100
Autopilot Modes
100
Autopilot Settings
106
Radar
107
About Radar
107
The Radar Panel
107
Radar Overlay
108
Dual Radar
108
Radar Operational Modes
109
Adjusting the Radar Range
111
Sector Blanking
111
Using the Cursor on a Radar Panel
112
Adjusting the Radar Image
113
Tracking Targets
116
Dangerous Targets
123
Advanced Radar Options
124
More Options
125
Recording Radar Data
132
Radar Settings
133
Ais
136
About AIS
136
Selecting an AIS Target
136
Searching for AIS Vessels
136
Displaying Target Information
136
Calling an AIS Vessel
138
DSC Vessel Tracking
138
Ais Sart
139
Vessel Alarms
140
Dangerous Targets
140
AIS Target Symbols and Icons
141
Vessel Settings
144
Echosounder
146
About
146
Requirements
146
The Image
146
Zooming the Image
147
Using the Cursor on the Panel
147
Measuring Distance
148
Saving Waypoints
148
Viewing History
148
Recording Log Data
149
Viewing Recorded Data
150
Upload Sonar Logs to C-MAP Genesis
150
Echosounder Data Sharing
150
Customizing the Image
150
Advanced Options
152
More Options
153
Echosounder Settings
156
Sidescan
159
About Sidescan
159
The Sidescan Panel
159
Zooming the Image
159
Using the Cursor on the Panel
160
Viewing History
160
Recording Sidescan Data
160
Setting up the Image
160
Advanced Options
162
More Options
162
Echosounder Settings
162
Downscan
163
About Downscan
163
The Downscan Panel
163
Zooming the Image
163
Using the Cursor on the Panel
164
Viewing Downscan History
164
Recording Downscan Data
164
Setting up the Downscan Image
164
Advanced Options
166
More Options
166
Echosounder Settings
167
Structuremap
168
About Structuremap
168
The Structuremap Image
168
Structuremap Sources
168
Structuremap Tips
169
Using Structuremap with Mapping Cards
170
Structure Options
170
Forwardscan
172
About Forwardscan
172
The Forwardscan Image
172
Setting up the Forwardscan Image
173
More Options
174
Heading Extension
174
Forwardscan Installation Settings
175
Instruments
179
About Instrument Panels
179
Selecting a Dashboard
179
Creating a Dashboard
179
Audio
182
About the Audio Function
182
The Audio Controller
182
Setting up the Audio System
183
Selecting Audio Source
183
Using an AM/FM Radio
183
Sirius Radio
184
Weather
186
About the Weather Feature
186
Wind Barbs
186
Showing Weather Details
187
GRIB Weather
187
Siriusxm Weather
190
Weather Alarms
195
Time Plots
196
The Time Plot Panel
196
Missing Data
196
Selecting Data
196
Alarms
198
About the Alarm System
198
Type of Messages
198
Alarm Indication
198
Acknowledging a Message
198
Alarms
199
Internet Connection
201
Internet Usage
201
Ethernet Connection
201
Wifi Connection
201
Wireless Settings
201
Remote Control of the MFD
205
Remote Control Options
205
Smartphones and Tablets
205
Using Your Phone with the MFD
208
About Phone Integration
208
Connecting and Pairing a Phone
208
Phone Notifications
209
Phone Troubleshooting
210
Managing Bluetooth Devices
211
Tools and Settings
212
The Toolbar
212
Settings
213
Simulator
218
About
218
Retail Mode
218
Simulator Source Files
218
Advanced Simulator Settings
219
Maintenance
220
Preventive Maintenance
220
Sun Cover
220
Cleaning the Display Unit
220
Checking the Connectors
220
Touchscreen Calibration
220
Software Updates
221
Service Report
223
Backing up Your System Data
224
Integration of 3 Rd Party Devices
228
Smartcraft Vesselview Integration
228
Suzuki Engine Integration
228
Yamaha Engine Integration
229
Evinrude
229
FUSION-Link Integration
229
BEP Czone Integration
230
Power-Pole Anchors
232
Power-Pole Charge Module
234
Naviop
235
Appendix
236
Touchscreen Operation
236
Status Bar Icon Definitions
237
