Selecting the radar source
You specify the radar in the radar panel by selecting one of the
available radars in the radar source menu option. If you have a
multiple radar panel page, the radar is set individually for each radar
panel. Activate one of the radar panels, and then select one of the
available radars in the radar source menu option. Repeat the
process for the second radar panel, and select an alternative radar
for this panel.
Ú
Note: The 3-digit radar source number is the last 3 digits of the
radar's serial number.
Radar operational modes
The radar’s operational modes are controlled from the Radar panel
menu. The modes available are dependent on your radar's
capability.

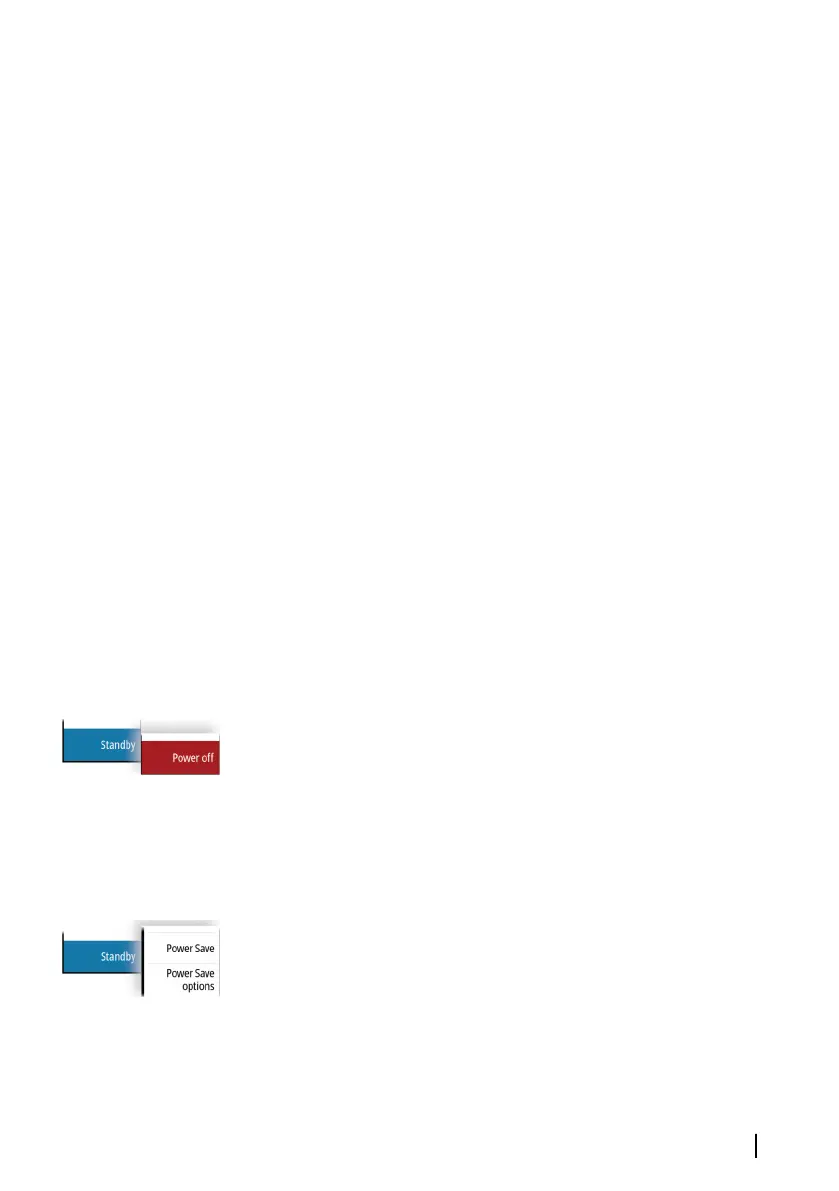

Standby
The power to the radar scanner is on, but the radar is not
transmitting.
Ú
Note: You can also put the radar in standby mode from the
System Controls dialog.
Power off
The power to the radar scanner is turned off. The power off option is
only available when the radar is in standby mode.
Note: Not all radars can be powered off using the Power off menu
option. For alternative power ON/OFF options refer to the radar
installation manual.
Power save
The power save menu option applies the settings made in the
power save settings dialog to the radar source. The power save
menu option is only available when the radar is in standby mode.
Select the standby option, and then the transmit option to return to
normal transmit mode.
Radar | GO XSE/XSR Operator Manual
109
