Using the cursor on the panel
When you position the cursor on the panel, the image pauses and
the cursor information window is activated. The left/right distance
from the vessel to the cursor are shown at the cursor position.

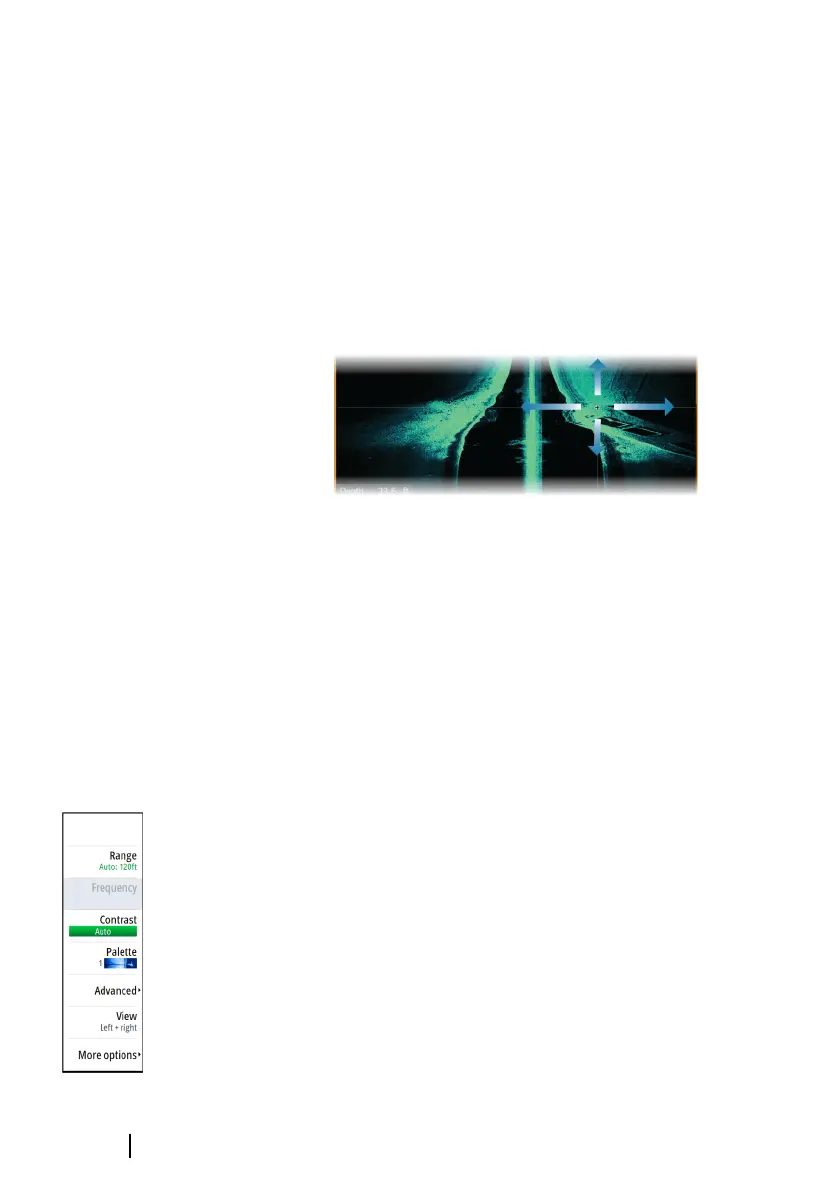

Viewing history
In a SideScan view, pan the image to see sides and history by
maneuvering the image left, right, and up.
To resume normal SideScan scrolling, select the clear cursor option.
Recording SideScan data
Displays the record log dialog. SideScan data can be recorded by
selecting the correct file format (xtf) in the record dialog. For more
information, refer to "Recording log data" on page 149.
Setting up the image
Use the SideScan menu to set up the image. When the cursor is
active, some options in the menu are replaced with cursor mode
features. Select the clear cursor option to return to the normal
menu.
Source
Ú
Note: Available only if multiple sources with the same
capability are available.
Used to specify the source for the image in the active panel.
You can display different sources simultaneously, using a multi-
panel page configuration. Menu options for each panel are
independent.
Ú
Note: Using transducers at the same frequency can cause
interference.
160
SideScan | GO XSE/XSR Operator Manual
