Zooming the image
You can zoom the image.
The zoom level is shown on the image. If the cursor is active, the
system zooms in where the cursor is positioned.
Zoom bar

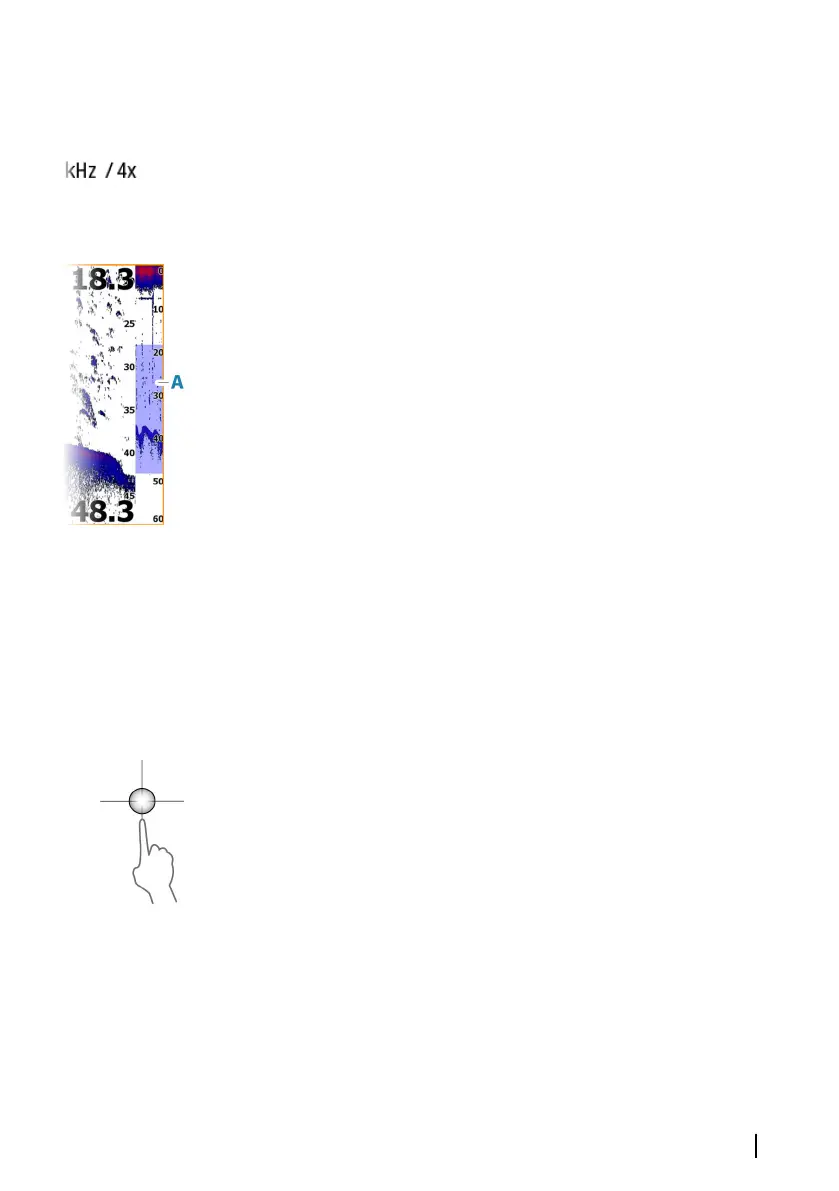

The zoom bar (A) is displayed when you zoom the image.
Ú
Note: The zoom bar is displayed if the zoom bar menu option is
selected, refer to "Zoom bar" on page 154.
Drag the zoom bar up or down to view different parts of the water
column.
Using the cursor on the panel
By default, the cursor is not shown on the image.
When you position the cursor on the panel, the image pauses and
the cursor information window is activated. The depth and range of
the cursor is shown at the cursor position.
Go to cursor
You can navigate to a selected position on the image by positioning
the cursor on the panel, and then using the go to cursor menu
option.
The cursor assist function
Ú
Note: The cursor assist function is available if it is enabled. Refer
to "Customizing the long press feature" on page 26.
The cursor assist function allows for fine tuning and precision
placement of the cursor without covering details with your finger.
Activate the cursor on the panel, then press and hold your finger on
the screen to switch the cursor symbol to a selection circle,
appearing above your finger.
Without removing your finger from the screen, drag the selection
circle to the desired position.
When you remove your finger from the screen the cursor reverts to
normal cursor operation.
Echosounder | GO XSE/XSR Operator Manual
147
