Placing EBL/VRM markers by using the cursor
1. Position the cursor on the radar image
2. Activate the menu
3. Select one of the EBL/VRM markers
-
The EBL line and the VRM circle are positioned according to
the cursor position.
Offsetting an EBL/VRM marker
1. Ensure that the cursor is not active
2. Activate the menu, select EBL/VRM, then select the marker you
wish to offset
3. Select the set offset option
4. Position the cursor on the radar panel to set the offset position
5. Select the save option to save your settings.
You can reset the EBL/VRM center to vessel position from the menu.

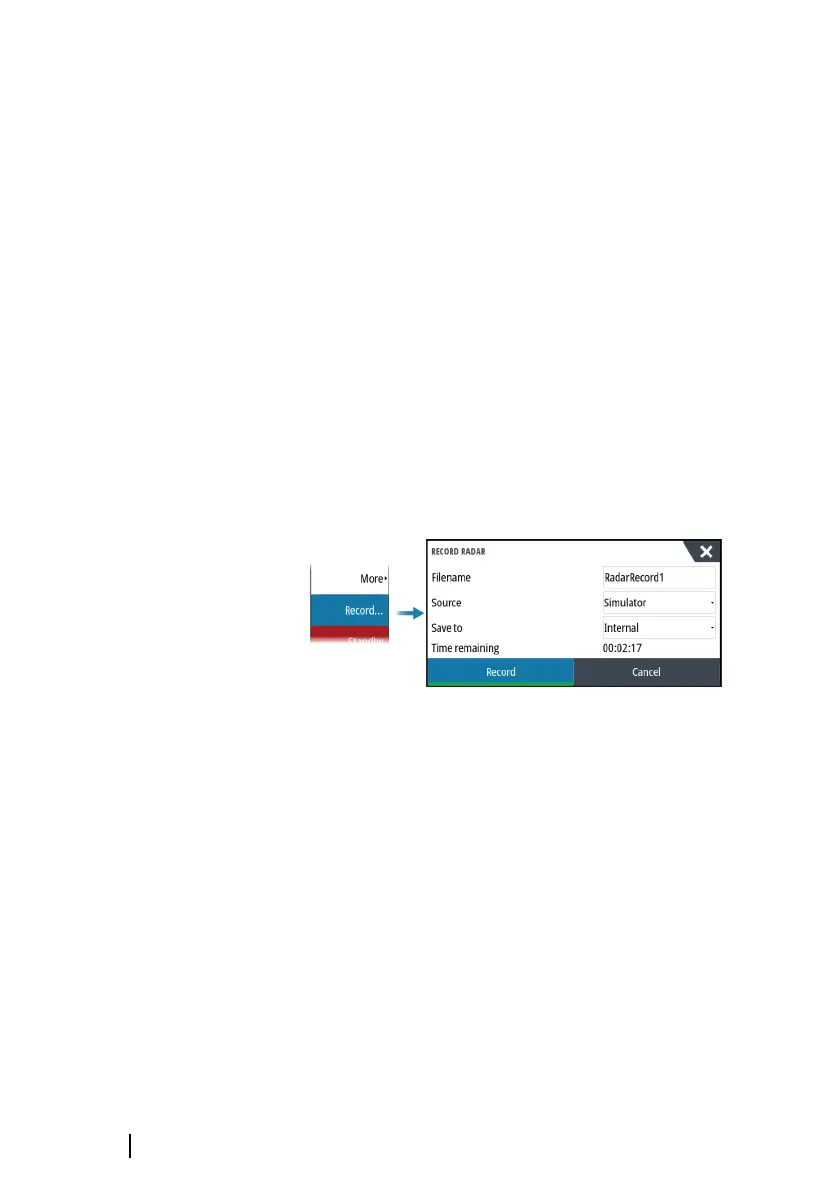

Recording radar data
You can record radar data and save the file internally in the unit, or
save it onto a storage device connected to the unit.
A recorded radar file can be used for documenting an event or an
operational error. A logged radar file can also be used by the
simulator.
Ú
Note: The record menu option is available if recording is turned
on in the Advanced system settings.
132
Radar | GO XSE/XSR Operator Manual
