Overlay DownScan
When a DownScan capable transducer is connected to your system,
you can overlay DownScan images on the regular Echosounder
image.
When overlay DownScan is activated, the Echosounder panel menu
expands to include basic DownScan options.
Pause
Pauses the image, allowing you to examine the image in detail.
The pause function stops the echosounder from pinging. The
system is not collecting data when paused in this manner.

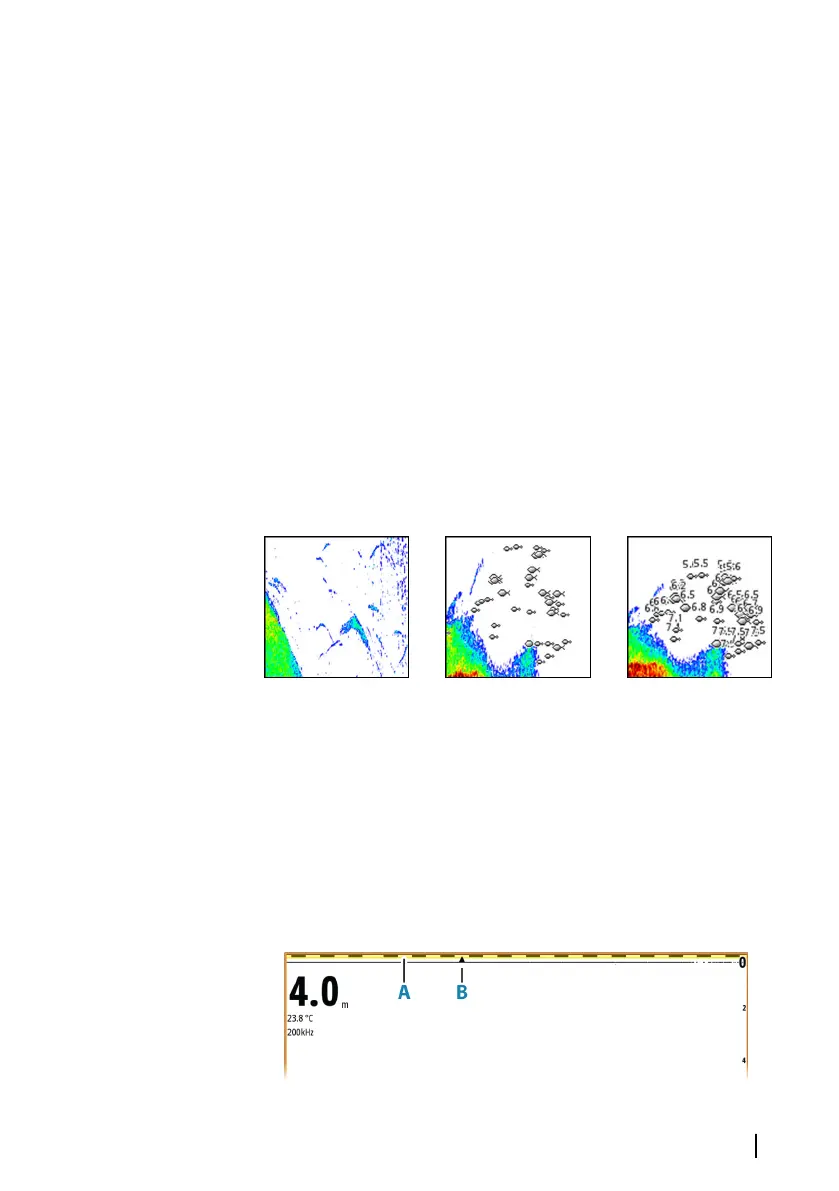

Fish ID
You can select how you want the fish targets to appear on the
screen. You can also select if you want to be notified by a beep
when a fish ID appears on the panel.
Traditional fish arches Fish symbols Fish symbols and depth
indication
Ú
Note: Not all fish symbols are actual fish.
Minute marker
Determines if the minute marker line (A) is shown on the image.
Each black and each white stripe in the line represents 1 minute. If
there is a discontinuity in the signal, this is indicated with a triangle
(B).
Echosounder | GO XSE/XSR Operator Manual
155
