Starting from blank
Select to create your own dashboard from scratch.
Use menu options to name the dashboard and manage gauges on
the dashboard.
Copying an existing layout
Select to copy an existing layout that you have made.
Use menu options to name the dashboard and manage gauges on
the dashboard.

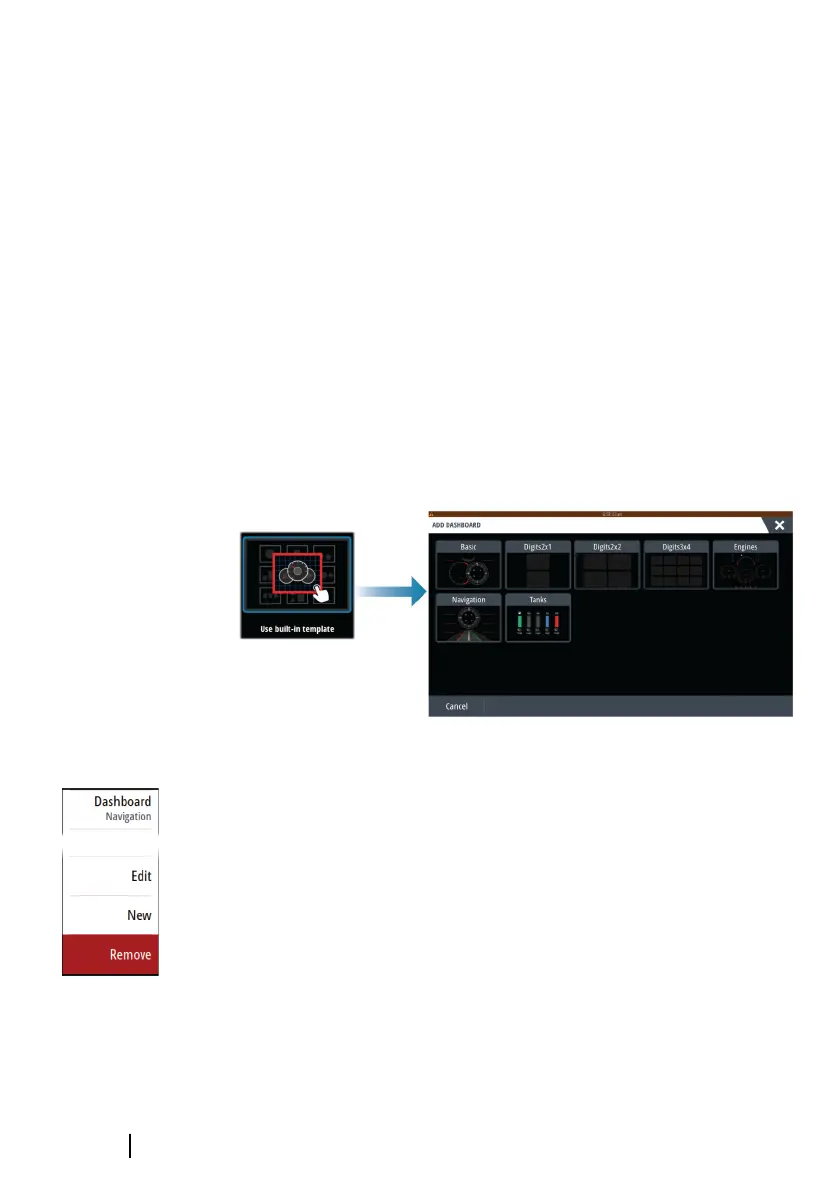

Using a built-in template
Select a pre-defined template to create a dashboard. The template
dashboards reflect your vessel configuration.
Use menu options to name the dashboard and manage gauges on
the dashboard.
Customizing the dashboard
You can use edit menu options to:
• change the data for each of the gauges in any dashboard
• set limits for analog gauges
• change the dashboard layout
Ú
Note: You cannot change the layout of pre-defined dashboards
or dashboards you have created using built-in templates.
Adding gauges
Select a gauge in the menu and then position it on the dashboard.
180
Instruments | GO XSE/XSR Operator Manual
