E Bearing line with allowed off course limit
When travelling on a route, the bearing line shows the
intended course from one waypoint towards the next.
When navigating towards a waypoint (cursor position, MOB
or an entered lat/lon position), the bearing line shows the
intended course from the point at which navigation was
started towards the waypoint.
F XTE limit
If the XTE (Cross Track Error) exceeds the defined XTE limit,
this is indicated with a red arrow including the distance
from the track line. Refer to "XTE limit" on page 67.
G Vessel symbol
Indicates boat position and heading.
H Routepoint information
Indicates the distance to the routepoint, the routepoint
name, and the estimated time to reach the routepoint.
The Position panels
You can switch between displaying the Navigation panel or the
Position panel. The Position panel is activated from the menu.
By default, there is one position panel available showing GPS
position.
If Loran is enabled in the Navigation settings dialog, there are two
position panels. This is indicated with arrow symbols on left and
right side of the panel.
You toggle between the panels by:
• selecting the left or right arrow symbols

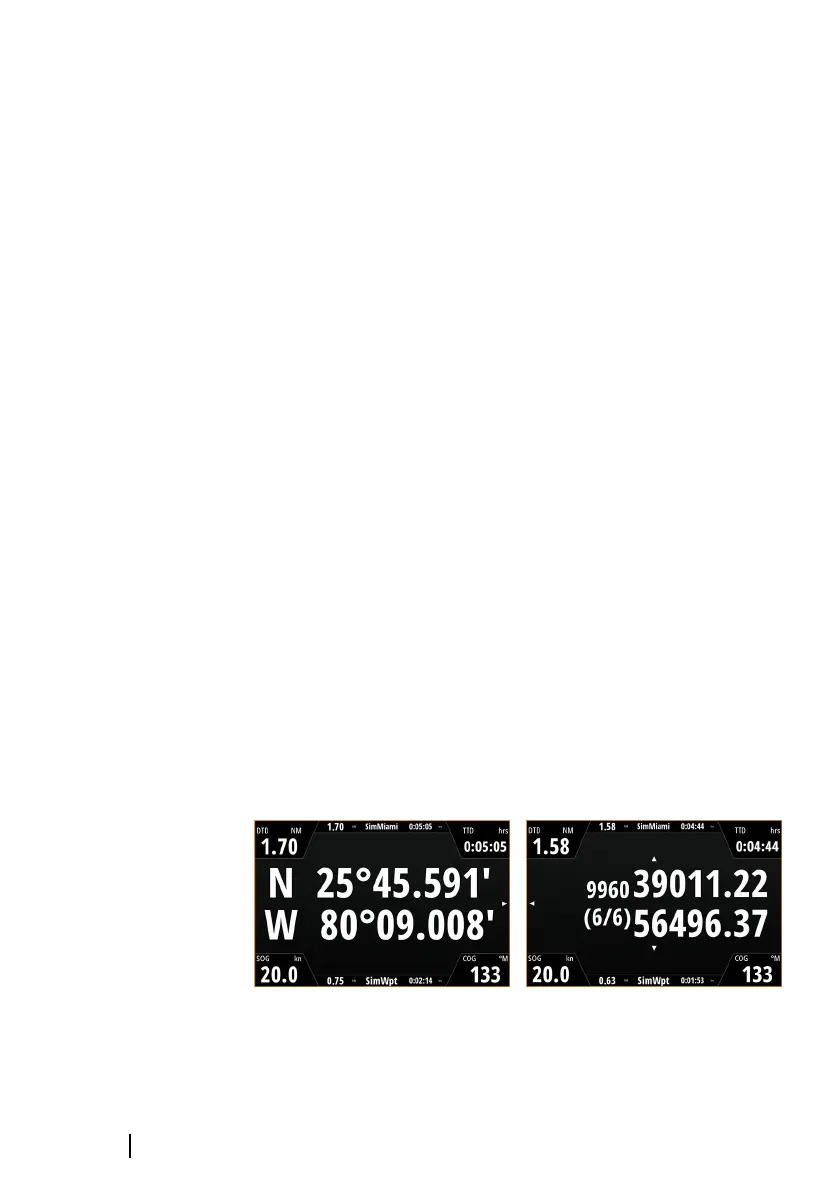

GPS position info Loran position info
64
Navigating | GO XSE/XSR Operator Manual
