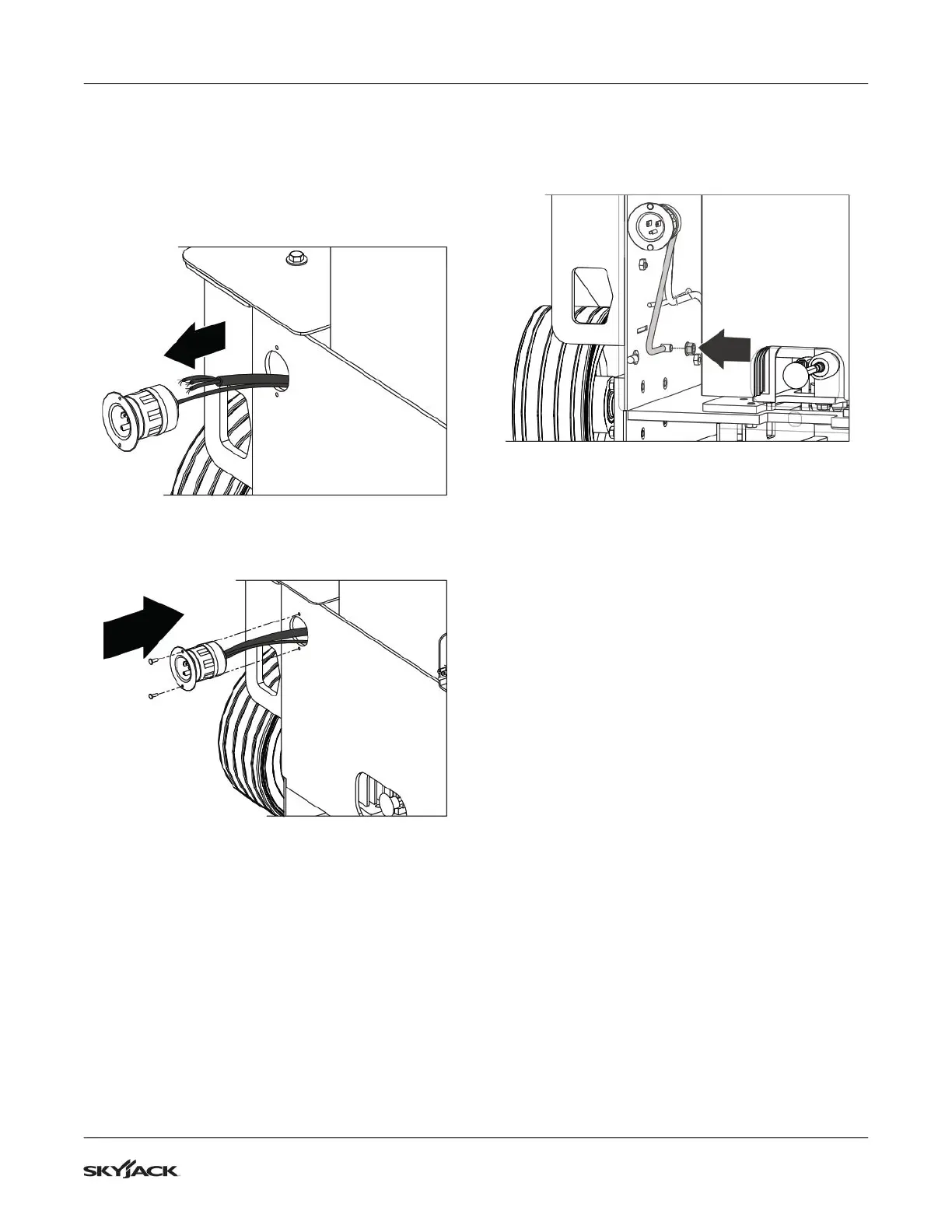

16. Route the AC power cable towards the rear of the
machine and out the AC inlet hole.
17. Connect the AC power cable to the inlet.
▪
Green wire to the green terminal
▪
Black wire to the bronze terminal
▪
White wire to the silver terminal
18. Use new pop rivets to mount the AC inlet to the
chassis.
19. Use the nut removed earlier to secure the green
ground wire from the AC inlet to the chassis.
20. Use tie wraps to secure the AC power cable to the
existing cable bundles.
Install the lift cylinder and platform
1. Install the lift cylinder. Refer to section 5.3-3 Install
the Lift Cylinder.
2. Install the platform. Refer to section 5.2-2 Install
the Platform.
