98
SJ12 E, SJ16 E, SJ20 E
241914ACA
Section 5 – Procedures Platform

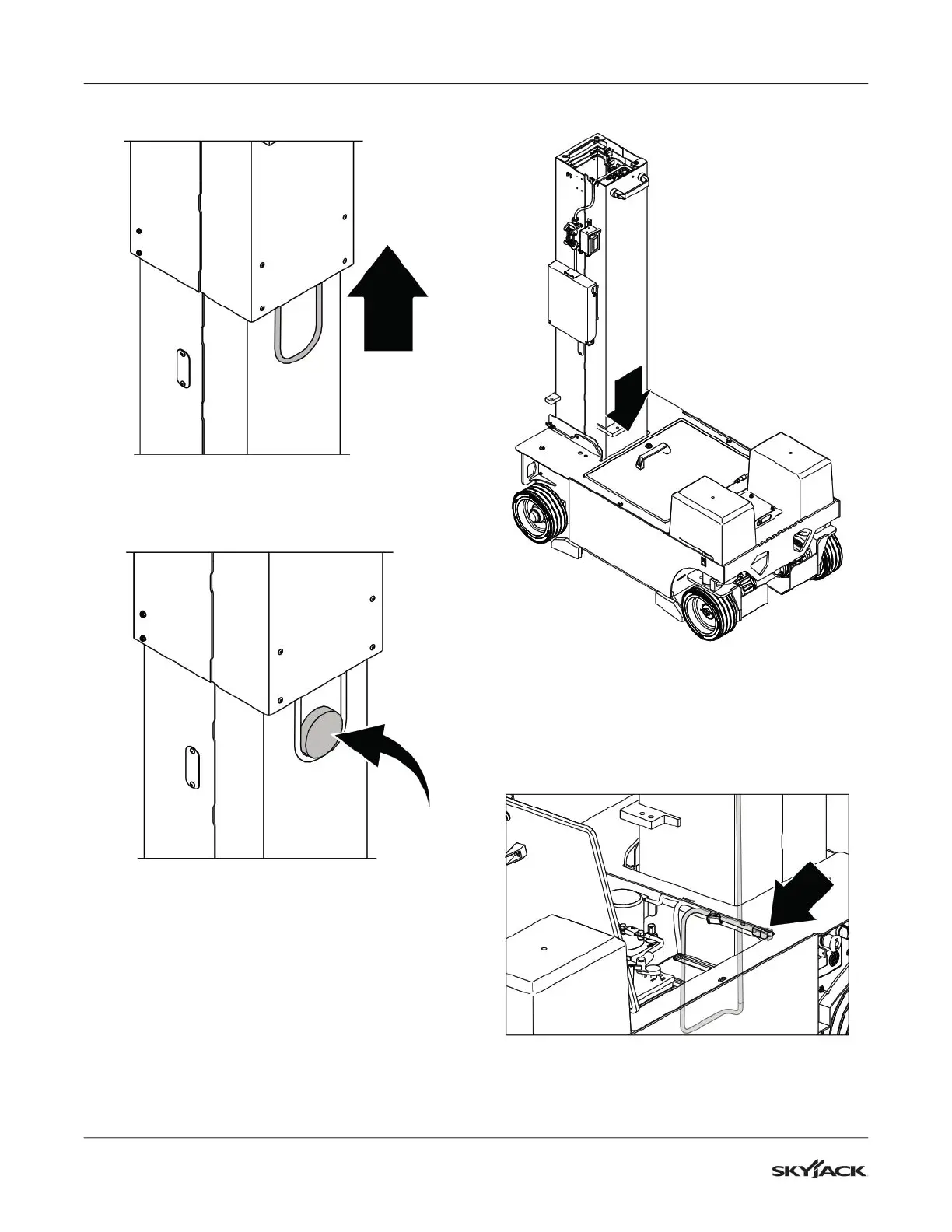

9. Raise mast 1 until the cable loop is visible.
10. Make sure the cable isn’t twisted, then put a
weighted roller into the cable loop.
11. Fully lower mast 1 onto the chassis.
12. Open the service compartment cover.
13. Connect the mast cable to the main harness.
14. Use tie wraps to secure the mast cable to the
existing cable bundles.
15. Close the service compartment cover.
