Platform Section 5 – Procedures

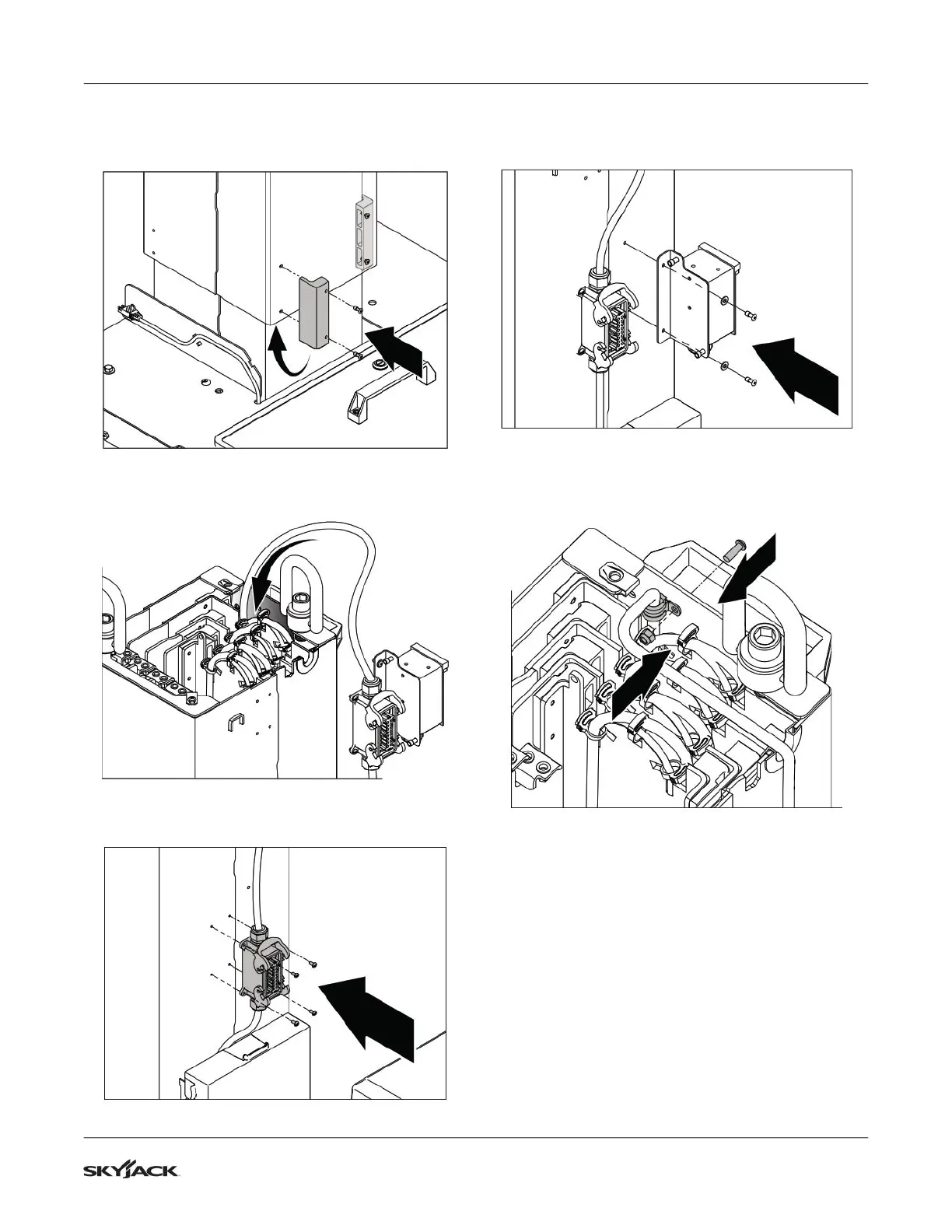

4. Use new pop rivets to attach two new thick and
long wear pads (234171) to the front of the mast
on the inside.
5. Pull the remaining mast cable out of the innermost
mast and lower it between mast 1 and mast 2.
6. Use the screws removed earlier to mount the
mast electrical housing to the side of mast 1.
7. Use new pop rivets and the washers removed
earlier to mount the AC outlet box to the side of
mast 1.
8. Use the cable clamp, nut and bolt removed earlier
to attach the mast cable to the inner face of mast
1.
