Platform Section 5 – Procedures
5.6-2 High Speed Cutout Limit Switch
Testing
1. Raise the platform less than 84 in (213 cm), and
drive the unit at full speed. The unit should move
at high speed.
2. Then raise the platform over 84 in (213 cm).
Drive forward with joystick fully forward. Machine
should drive in low speed.
NOTE
High Speed Cutout should occur within the
tolerance zone of 81–87 in (206–221 cm)
5.7 Platform
5.7-1 Gate Spring Hinge Adjustment
1. The tension of the spring hinges should be
such that when the gate is opened halfway and
released, it will close fully and latch.
2. To adjust the tension of the spring hinges, rst
remove the safety locking screw located at the
top or bottom of each hinge. Retain the screws for
reinstallation later.

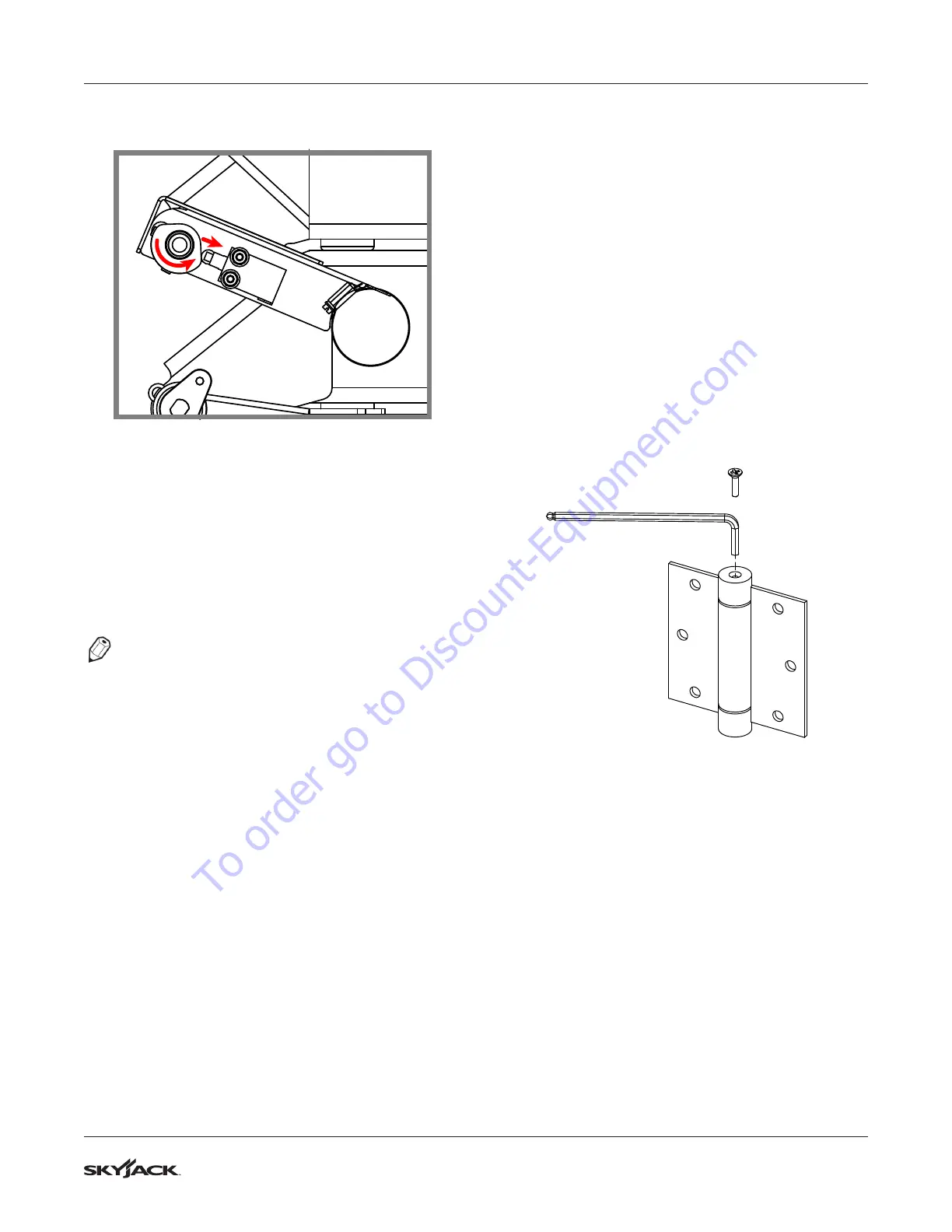

3. To increase the tension, insert a 5/32 hex wrench in
the screw socket, and turn the wrench clockwise.
To release the tension, depress the hex wrench
in the socket, let it rotate counterclockwise, then
release the hex wrench.
4. Adjust the tension on both hinges until the gate
releases and latches from a half open position.
5. Reinstall the safety locking screws into the hinges
when tension adjustment is complete.
