Skyjack SJ6826RT - 3.5 Electrical Parts List

47
SJ6826RT, SJ6832RT
213560ABA

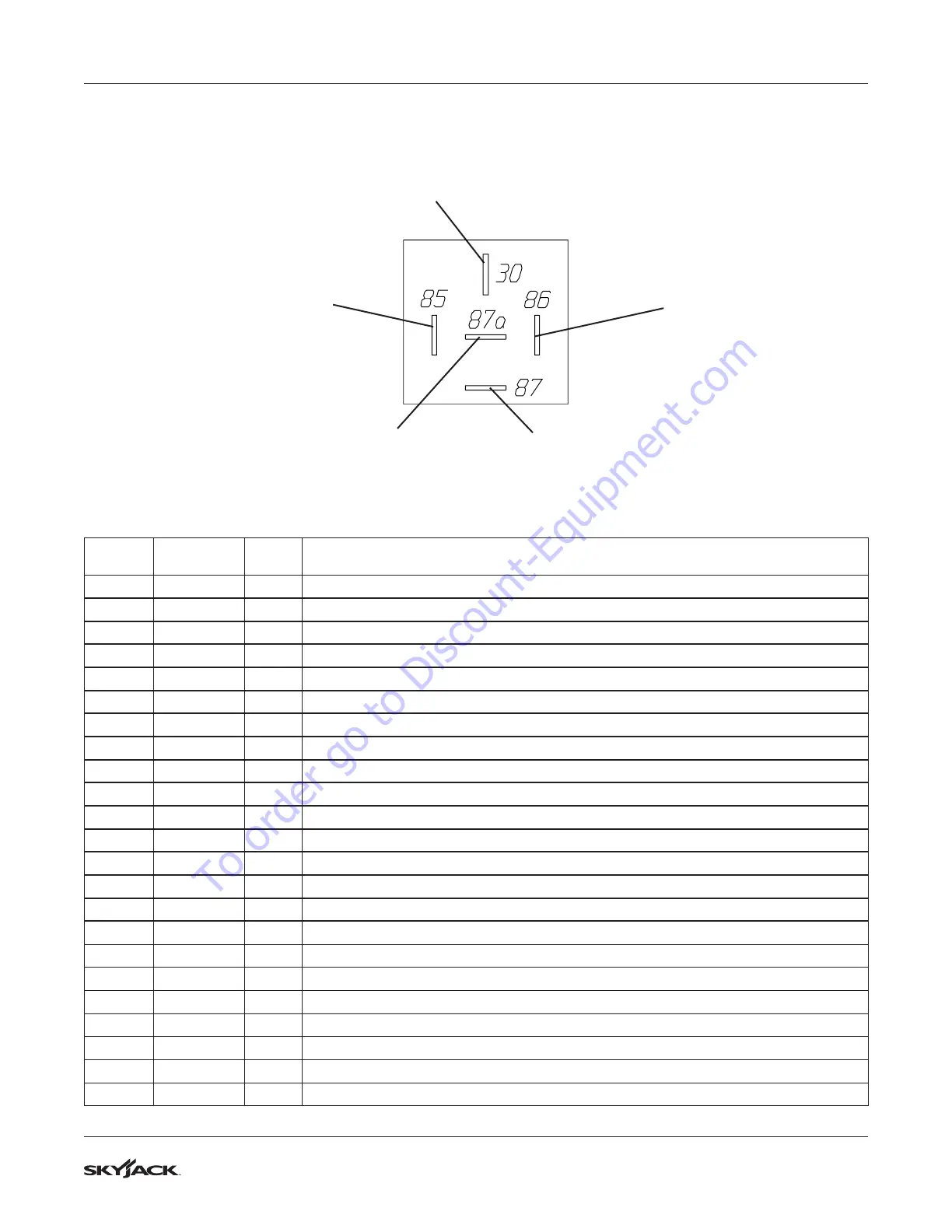

Electrical Parts List Section 3 – System Component Identication and Schematics
3.5 Electrical Parts List
CONTROL (B+)
NORMALLY
CLOSED
CONTACT
SUPPLY (B+) (Common)
GROUND (B-)
NORMALLY
OPEN
CONTACT
Index
No.
Skyjack
Part No.
Qty. Description
8CCR 127035 1 ENABLE RELAY
9CR2 127131 1 RELAY, 12 Volt (Outrigger enable)
9CR3 127131 1 RELAY, 12 Volt (Outrigger enable proof)
10BCR 127035 1 RELAY, 12 Volt (40 Amp) (main power)
10CR1 127035 1 RELAY, 12 Volt (40 Amp)
10CR2 127035 1 RELAY, 12 Volt (40 Amp)
15CR 127035 1 RELAY, 12 Volt (40 Amp) (Reverse drive)
16CR 127035 1 RELAY, 12 Volt (40 Amp) (Forward drive)
17CR 127035 1 RELAY, 12 Volt (40 Amp) (Small pump)
17DCR 127131 1 RELAY, 12 Volt (Outrigger lift disable)
19CR 127035 1 RELAY, 12 Volt (40 Amp) (Large pump)
20CR 127035 1 RELAY, 12 Volt (40 Amp) (Series/Parallel drive)
20ACR1 127035 1 RELAY, 12 Volt (40 Amp) (Series/Parallel)
20ACR2 127035 1 RELAY, 12 Volt (40 Amp) (Series/Parallel)
28ACR1 127035 1 RELAY, 12 Volt (40 Amp) (Small pump dump enable)
28ACR2 127035 1 RELAY, 12 Volt (40 Amp) (Large pump dump enable)
31CR 127035 1 RELAY, 12 Volt (40 Amp) (Glow plug)
32ACR 127035 1 CONTACTOR, Engine start
32CR1 127035 1 RELAY, 12 Volt (40 Amp)
32CR2 127035 1 RELAY, 12 Volt (40 Amp) (Engine start)
