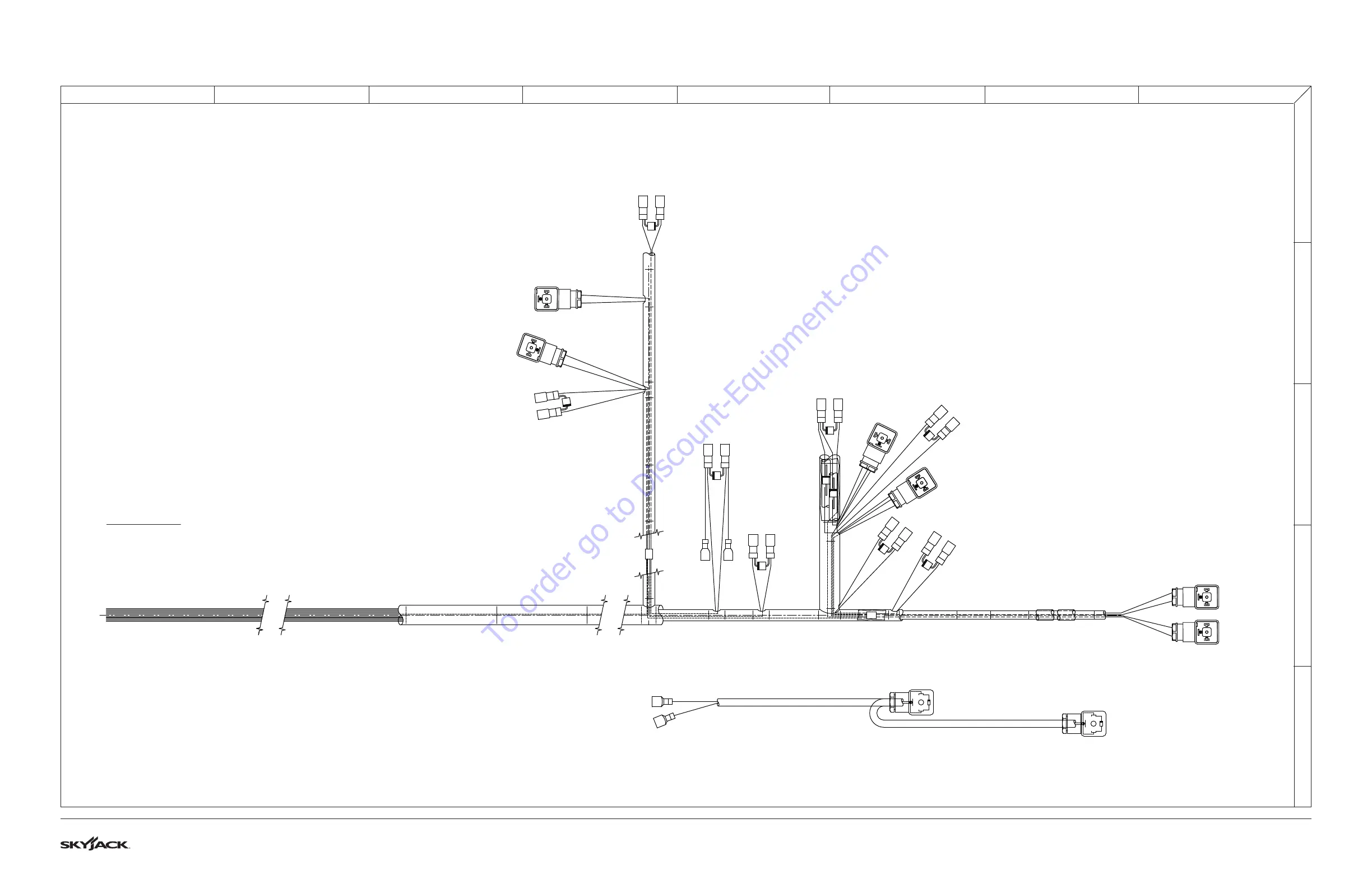

Skyjack SJ6826RT - Main Manifold Valve Harness Wiring Diagram

A B C D E F G H
V
Z
Y
X
W
59
SJ6826RT, SJ6832RT
213560ABA
LIFT VALVE
14A - BLACK
02 - WHITE
LEFT STEER VALVE
GREY HIRSHMAN
PIN 1 - 24 BLUE/BLACK
PIN 2 - 02 WHITE
RIGHT STEER VALVE
BLACK HIRSHMAN
PIN 1 - 23 BLACK/WHITE
PIN 2 - 02 WHITE
(SPLICE 1)
REVERSE VALVE
GREY HIRSHMAN
PIN 1 - 15A BLUE
PIN 2 - 02 WHITE
SERIES/PARALLEL VALVE
20A - BLACK/RED/WHITE
02 - WHITE
SMALL PUMP DUMP VALVE
18B - RED/BLACK
02 - WHITE
LOWERING VALVE
13 - ORANGE
02 - WHITE
LARGE PUMP DUMP VALVE
17A - BLUE/RED
02 - WHITE
HOLDING VALVE
13 - ORANGE
02 - WHITE
HIGH SPEED VALVE
20B - BLACK/RED/WHITE
02 - WHITE
PARALLEL REVERSE VALVE
GREY HIRSHMAN
PIN 1 - 15B BLUE/YELLOW
PIN 2 - 02 WHITE
02
02
02
(SPLICE 1)
02
14A
02
30
02
TO ELECTRIC PANEL - 14 WIRES
02 - WHITE
13 - ORANGE (ANSI/CSA), 13B - ORANGE
(CE)
14A - BLACK
15A - BLUE
15B - BLUE/YELLOW
16A - WHITE/BLACK
16B - WHITE/RED
17A - BLUE/RED (ANSI/CSA), 17B - BLUE/RED (CE)
18B- RED/BLACK (ANSI/CSA), 18C - RED/BLACK (CE)
20A - BLACK/WHITE/RED
23 - BLACK/WHITE
24 - BLUE/BLACK
30 - BROWN
86D - ORANGE/BLACK/WHITE
02
02
20A
02
20B
02
02
86D
PARALLEL FORWARD VALVE
BLACK HIRSHMAN
PIN 1 - 16B WHITE/RED
PIN 2 - 02 WHITE
PARALLEL REVERSE VALVE
GREY HIRSHMAN
PIN 1 - 15B BLUE/YELLOW
PIN 2 - 02 WHITE
INSERT ORIENTATION
BOTTOM VIEW
HYDRAULIC GENERATOR
86D - ORANGE/BLACK/WHITE
02 - WHITE
18B
13
13
17A
HOLDING VALVE (LOWER)
PIN 1 - 13 BLACK
PIN 2 - 02 WHITE
13 - BLACK
02 - WHITE
13
02
HOLDING VALVE (UPPER)
PIN 1 - 13 BLACK
PIN 2 - 02 WHITE
21
1 2
20
A51
YERG
FORWARD VALVE
BLACK HIRSHMAN
PIN 1 - 16A WHITE/BLACK
PIN 2 - 02 WHITE
INSERT ORIENTATION
BOTTOM VIEW
KCALB
A61
20
BRAKE FEED VALVE
30 - BROWN
02 - WHITE
BLACK
16B
02
15B
02
GREY
INSERT ORIENTATION
BOTTOM VIEW
BLACK
23
02
20
42
YERG
M139828AC
3.12 Main Manifold Valve Harness Wiring Diagram
