Skyjack SJ6826RT - Electrical Schematic

To Next Page

To Previous Page

M N

EDCBA

SJ6826RT, SJ6832RT

213560ABA

3.29 Electrical Schematic - Kubota Diesel D902- CE

M220060AB

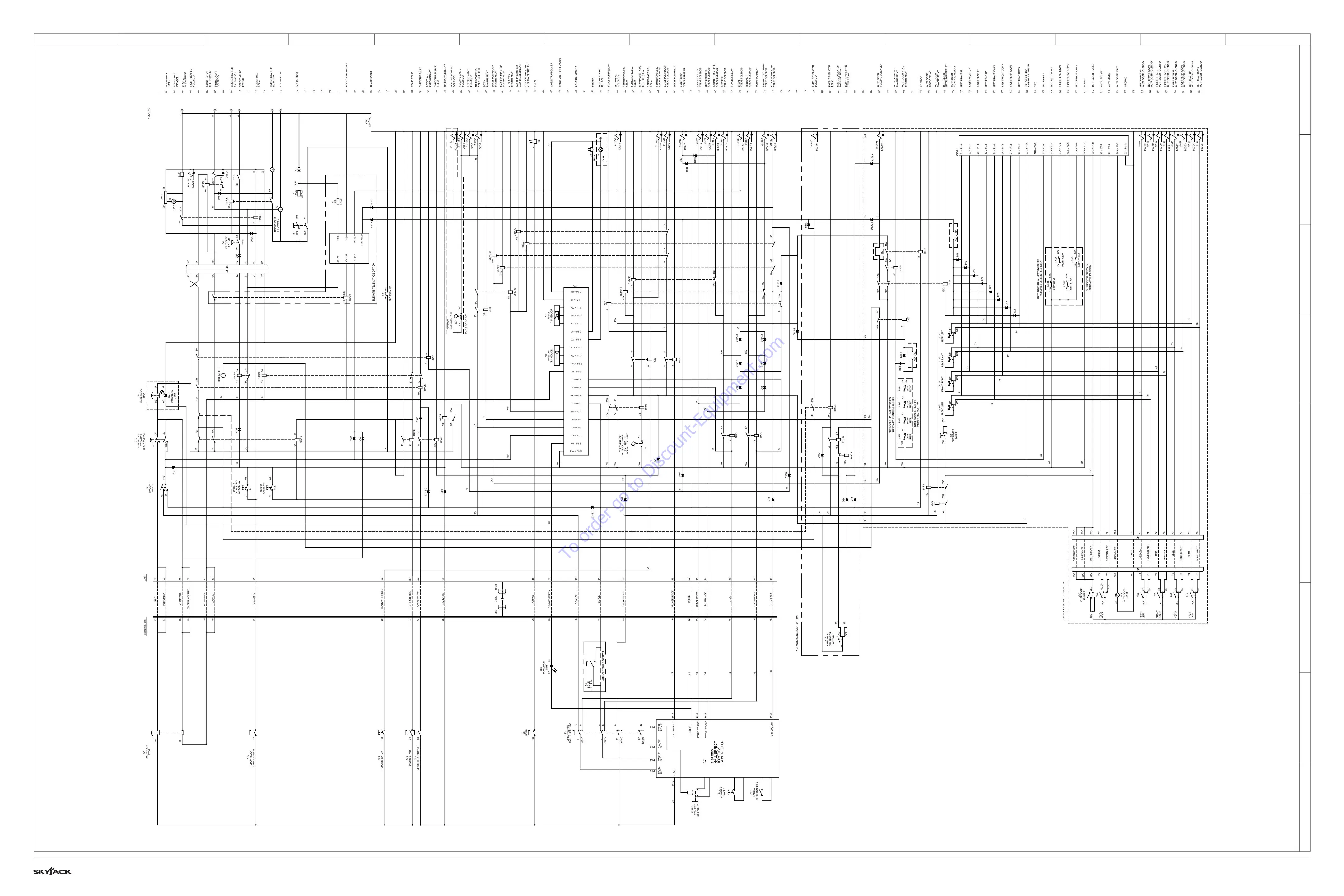

3.29 Electrical Schematic - Kubota Diesel - CE

To order go to Discount-Equipment.com

Main Page
