138
SJ6826RT, SJ6832RT
213560ABA
Section 5 – Procedures General
6. To create pressure, with the engine on and the
lift/off/lower switch in the lift position, tilt the
joystick forward, as though trying to raise the
platform. Read the pressure on the gauge.
7. If the pressure shown on the gauge matches
that on the serial plate, no further action is
needed. However, if it does not match that on
the serial plate, proceed to the next step.
Adjusting the Pressure

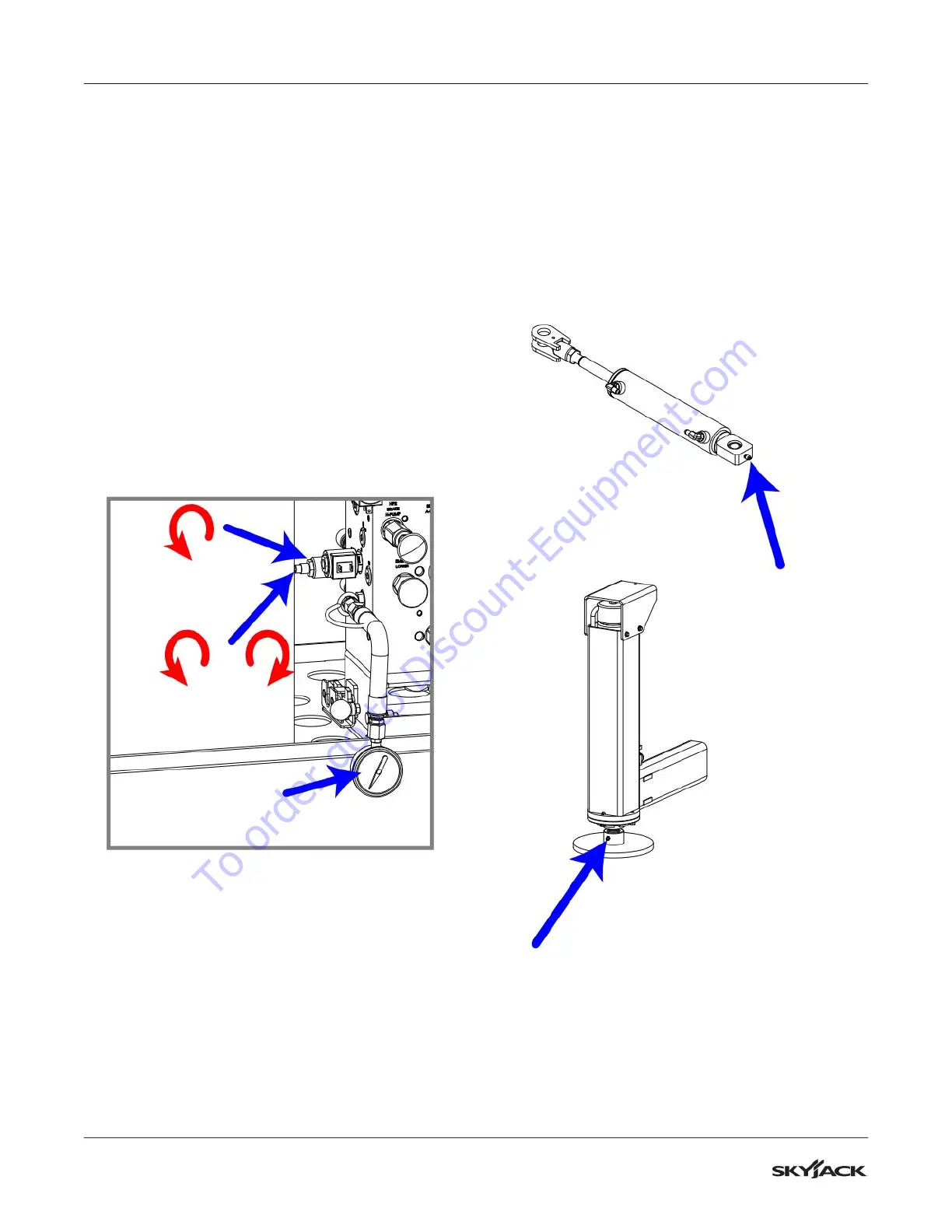

8. Continuing from Step 6 above, loosen the jam
nut (counterclockwise) on the lift pressure relief
valve.
9. With the joystick still forward as though
attempting to raise the platform, turn the lift relief
valve adjustment screw clockwise to raise the
pressure, or counterclockwise the to lower the
pressure, until it matches the value given on the
serial plate.
3. Psi should
match serial plate
or
1.
2.
10. Tighten the jam nut and apply a dab of torque
seal where the jam nut and adjuster screw meet.
11. Reconnect the lift hose to the main manifold
lift port. Refer to 52-7 Tightening and Torque
Recommendations for Hydraulic Couplings and
Hoses.
12. Remove the pressure gauge and reconnect the
control box to the platform.
5.2-12 Grease Points
Grease Fitting Locations
There are either 1 or 5 grease ttings on the 6826 RT /
6832 RT, depending on options. They are located:
▪ On the stationary end of the steer cylinder (1
tting per unit).
▪ On each outrigger foot (1 tting per outrigger, if
equipped, 4 per unit).
